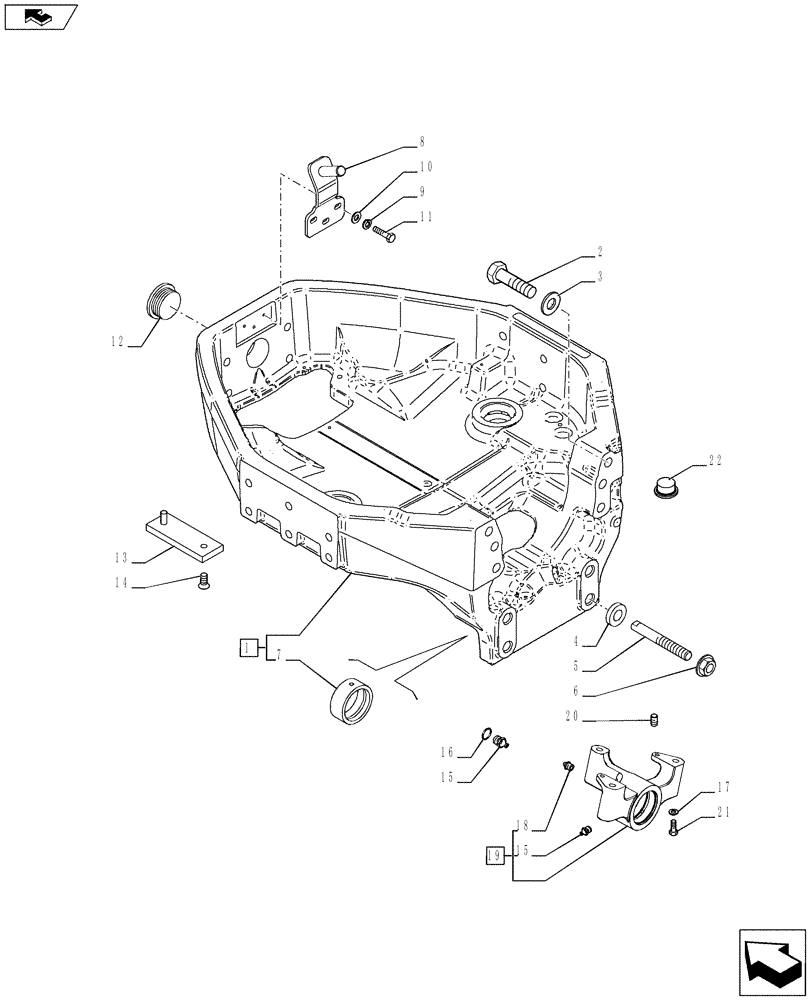

Запчасти Case IH PUMA 170 (25.100.0102) - CLASS 4 4WD FRONT AXLE SUPERSTEER - SUPPORT (VAR.728217) (25) - FRONT AXLE SYSTEM

1

87641586

BOLSTER

Contains Ref. 7

1шт.

2

82029234

BOLT,Hex, M20 x 1.5 x 125mm, Cl 12.9

20 x 50

6шт.

3

82028022

WASHER,M8 x 1.25 ID x 40mm OD x 9mm Thk, CRLC or HRLC Steel

10шт.

4

82026240

SHIM,20.2mm ID x 50mm OD x 4.5mm Thk

1шт.

4

82026248

SHIM,20.2mm ID x 50mm OD x 6.9mm Thk

1шт.

4

82026249

SHIM,20.2mm ID x 50mm OD x 4.5mm Thk

1шт.

4

82026250

SHIM,20mm ID x 50mm OD x 7.5mm Thk

1шт.

4

82026251

SHIM,20.2mm ID x 50mm OD x 7.8mm Thk

1шт.

4

82026247

SHIM,20.2mm ID x 50mm OD x 6.6mm Thk

1шт.

4

82026246

SHIM,20.2mm ID x 50mm OD x 6.3mm Thk

1шт.

4

82026245

SHIM,20.2mm ID x 50mm OD x 6mm Thk

1шт.

4

82026241

SHIM,20.2mm ID x 50mm OD x 4.8mm Thk

1шт.

4

82026242

SHIM,20.2mm ID x 50mm OD x 5.1mm Thk

1шт.

4

82026243

SHIM,20.2mm ID x 50mm OD x 5.4mm Thk

1шт.

4

82026244

SHIM,20.2mm ID x 50mm OD x 5.7mm Thk

1шт.

5

87301868

STUD,M20

Self-Locking, M20 x 1.5 x 90

2шт.

5

87309786

STUD

2шт.

6

87312644

NUT,Hex, M20, 1.5 Pitch, 16mm High, Gr R12

M20 x 1.5 x 195

4шт.

7

5129385

BUSHING,99.15mm ID x 103.7mm OD x 52mm L

M20 x 1,5

1шт.

8

87371243

BRACKET

1шт.

9

10516674

LOCK WASHER,M8

M10 x 25 x 10,9

3шт.

10

12646701

WASHER,8.15mm ID x 20mm OD x 2mm Thk

6шт.

11

16043421

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

6шт.

12

82023395

PLUG,60mm ID

1шт.

13

87638603

SPACER

2шт.

14

14420121

HEX SOC SCREW,M10 x 25mm, Cl 8.8

2шт.

15

13407211

LUBE NIPPLE,M10 x 1

2шт.

16

14472780

O-RING,0.21" Thk x 3.85" ID, -344, Cl 5, 75 Duro

2шт.

17

11191674

BELLEVILLE WASHER,M18 Bolt Size x 36mm OD x 4.2mm Thk

3шт.

18

13411117

VALVE PRESSURE RELIE,M10, Black

1шт.

19

87366305

TRUNNION

Contains Ref. 15,18

1шт.

20

10837810

DOWEL,M12 x 30.00mm

D=12

2шт.

21

15223534

BOLT,Hex, M18 x 140mm, Cl 10.9, Full Thd

3шт.

22

87301529

PLASTIC PLUG

8шт.
