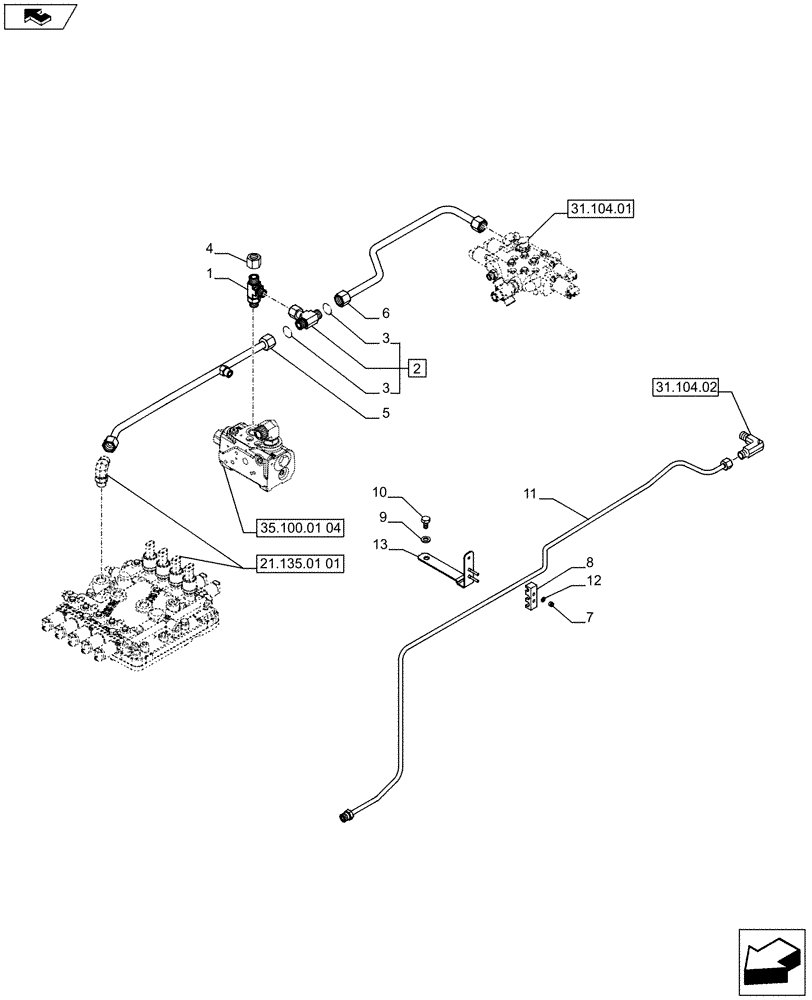

Запчасти Case IH PUMA 170 (21.109.0201) - ABS SYSTEM - HYDRAULIC LINE - TRANSMISSION CONTROL (VAR.743922) (21) - TRANSMISSION

1

87328821

HYD CONNECTOR

1шт.

2

5197110

TEE,1"-14 UNS

Incl Ref. 3

1шт.

3

5185512

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

2шт.

4

83987627

CAP,1-14UN-2A

1шт.

5

87316320

HYD TUBE

1шт.

6

87316330

HYD TUBE

1шт.

7

9706755

NUT,M6, Cl 8

M6

2шт.

8

87318812

CLAMP BRACKET

1шт.

9

10520005

WASHER,12.2mm ID x 22mm OD x 3mm Thk

1шт.

10

16207524

BOLT,Hex, M12 x 1.25 x 20mm, Cl 8.8, Full Thd

1шт.

11

87726931

PIPE

1шт.

12

12646605

WASHER,6.15mm ID x 15mm OD x 1.5mm Thk

2шт.

13

87526108

BRACKET

1шт.
