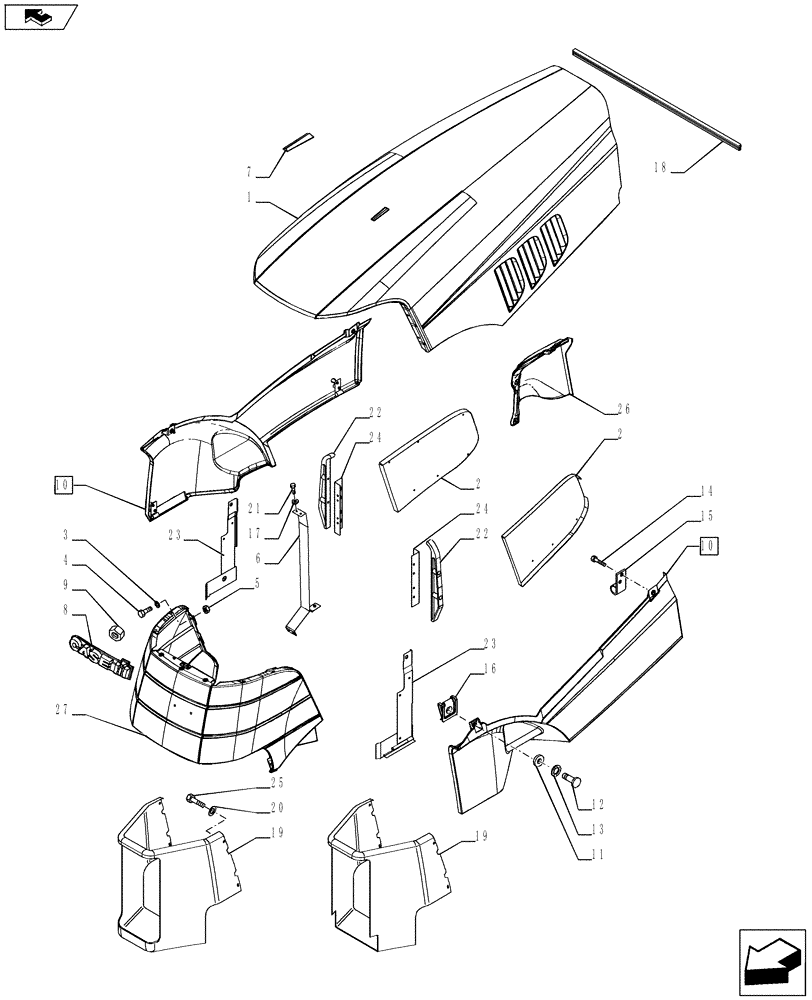

Запчасти Case IH PUMA 170 (90.100.01[01]) - HOOD - C7091 (VAR.720463-728212) (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

87581096

ENGINE HOOD

1шт.

2

87631968

SIEVE

RH

1шт.

2

87631969

ENGINE HOOD PANEL

LH

1шт.

3

10615479

LOCK WASHER,6.4mm ID x 11mm OD x 0.7mm Thk

11шт.

4

10902221

BOLT,Hex, M6 x 16mm, CL 8.8

3шт.

5

12574211

NUT,M6 x 1, Cl 8

8шт.

6

87608697

SUPPORT

1шт.

7

44995044

GUIDE

1шт.

8

87716230

EMBLEM

1шт.

9

86625060

PUSH-ON NUT,Self, Threading, 1/4"

2шт.

10

84333938

SIDE PANEL

LH, Serial Range: -`0

1шт.

Contains Ref. 11-15

1шт.

10

84333939

SIDE PANEL

RH, Serial Range: -`0

1шт.

Contains Ref. 11-15

1шт.

10

84333982

PANEL

ASSY, Hood Lower LH, Serial Range: -`0

1шт.

Contains Ref. 11-15,4WD Axle with Active Suspension, VAR.720463-728212

1шт.

11

14496601

WASHER,10.5mm ID x 21mm OD x 2mm Thk

2шт.

12

87585593

FASTENER,9mm ID x 18mm OD

2шт.

13

87313183

RETAINER

2шт.

14

15517201

SCREW

4шт.

15

87325876

BRACKET

2шт.

16

87313182

CLIP

4шт.

17

10523401

WASHER,6.15mm ID x 18mm OD x 2mm Thk

11шт.

18

87638347

RUBBER STRIP

L= 1335 MM

1шт.

19

87494626

PANEL

, Serial Range: -`0

1шт.

Standard

1шт.

19

87494628

PANEL

, Serial Range: -`0

1шт.

Front HPL with PTO for Mid Mounts, VAR.743486

1шт.

20

81872184

WASHER,6.4mm ID x 17mm OD

5шт.

21

120100

BOLT,M6 x 20mm, Cl 8.8

11шт.

22

87661307

GUIDE

2шт.

23

87700613

BRACKET

LH

1шт.

23

87700608

BRACKET

RH

1шт.

24

87674163

HOLDER

2шт.

25

81870066

SCREW,Torx, Pan HD, M6 x 12mm, Cl 8.8

5шт.

26

84276244

ENGINE HOOD PANEL

RH

1шт.

27

87641708

GRILLE

1шт.
