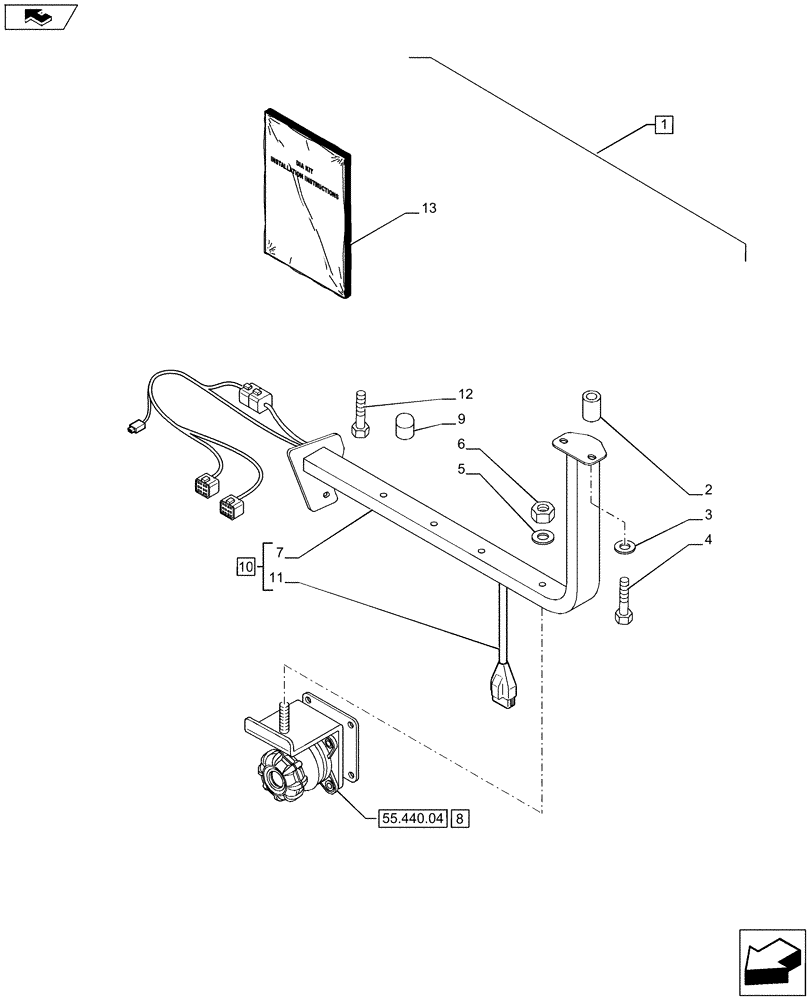

Запчасти Case IH PUMA 170 (88.055.19[01]) - DIA KIT - PREDISPOSITION FOR VIRTUAL TERMINAL (88) - ACCESSORIES

1

719258184

Predisposition for Virtual Terminal, Contains Ref. 2-12 & Installation Instructions

1шт.

Refer to Installation Instructions for Correct Assembly Procedure

1шт.

2

87681589

SPACER,8mm ID x 11mm OD x 16mm L

2шт.

3

14496504

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

6шт.

4

43129

BOLT,Hex, M8 x 1.25 x 40mm, LH Thd, Cl 8.8

2шт.

5

14496601

WASHER,10.5mm ID x 21mm OD x 2mm Thk

1шт.

6

12577211

LOCK NUT,M10 x 1.5mm Pitch, 12.30mm High, Cl 8, ZND

1шт.

7

84340967

SUPPORT

1шт.

8

87614599

SUPPORT

1шт.

9

5132136

CAP COVER,M8

2шт.

10

84361958

HOLDER

Contains Ref. 7,11

1шт.

11

84174905

WIRE HARNESS

1шт.

12

300381

BOLT,Hex, M8 x 1.25 x 35mm, Cl 8.8

2шт.

13

87743572

INSTRUCTION

1шт.
