Запчасти Case IH PUMA 170 (10.254.38[01]) - ENGINE BLOCK AND TRANSMISSION OIL HEATERS (120V) (VAR.728381) - C7114 (10) - ENGINE

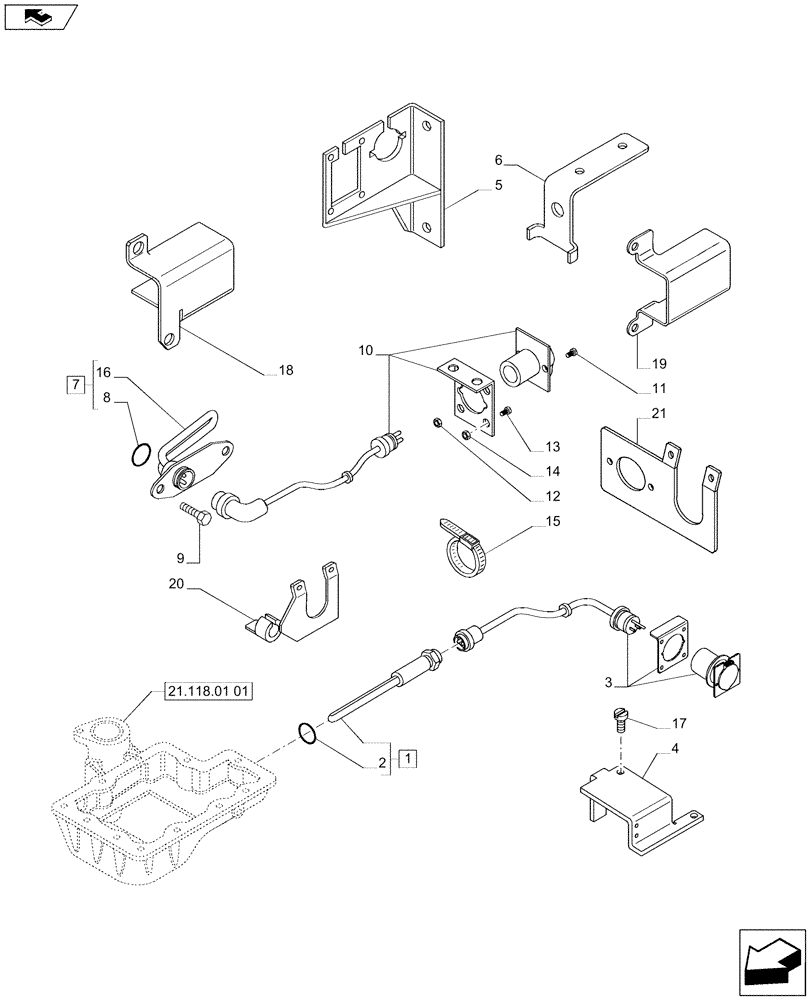

Схема запчастей Case IH PUMA 170 - (10.254.38[01]) - ENGINE BLOCK AND TRANSMISSION OIL HEATERS (120V) (VAR.728381) - C7114 (10) - ENGINE
5
7
2
18
12
1
19
13
3
11
9
21
21.118.01 01
home
6
15
4
20
8
14
16
10
17

Артикул

Название

Примечание

Количество

1

84130678

HEATER,110V

Contains Ref. 2

1шт.

2

81903721

O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro

116V

1шт.

3

84130687

ELECTRIC CABLE

1шт.

4

87571524

GUARD

1шт.

5

84167089

SUPPORT

1шт.

6

87633005

BRACKET

1шт.

7

4891287

HEATER

Engine Block, 120V, Contains Ref. 8,16

1шт.

8

4891258

O-RING,1.984" ID x 2.262" OD x 0.139"

1шт.

9

86511841

BOLT,Flng, M8 x 1.25 x 16mm, Full Thd, Cl 8.8

2шт.

10

87756876

ELECTRIC CABLE

1шт.

11

13271914

SCREW,Pozidriv Pan Hd, M4 x 10mm, Cl 5.8, Full Thd

4шт.

12

10794011

NUT,M4, Cl 8

4шт.

13

13276414

SCREW,Pozidriv Pan Hd, M6 x 20mm, Cl 5.8, Full Thd

2шт.

14

86619800

FLANGE NUT,M6 x 1, Cl 8

2шт.

15

82001041

CABLE TIE,0.190" x 7.00" / 200 mm L

CABLE STRAP

2шт.

16

4891249

BLOCK HEATER

1шт.

17

14420271

HEX SOC SCREW,M10 x 1.5 x 30mm, Cl 12.9, Full Thd

1шт.

18

84278885

GUARD

1шт.

Parts Shown Are Also Available in DIA Kit 710206094

1шт.

19

87616064

GUARD

1шт.

Parts Shown Are Also Available in DIA Kit 710206094

1шт.

20

87651112

BRACKET

1шт.

Parts Shown Are Also Available in DIA Kit 710206094

1шт.

21

87315478

BRACKET

1шт.

Parts Shown Are Also Available in DIA Kit 719106034

1шт.

Выбрано товаров: 25
