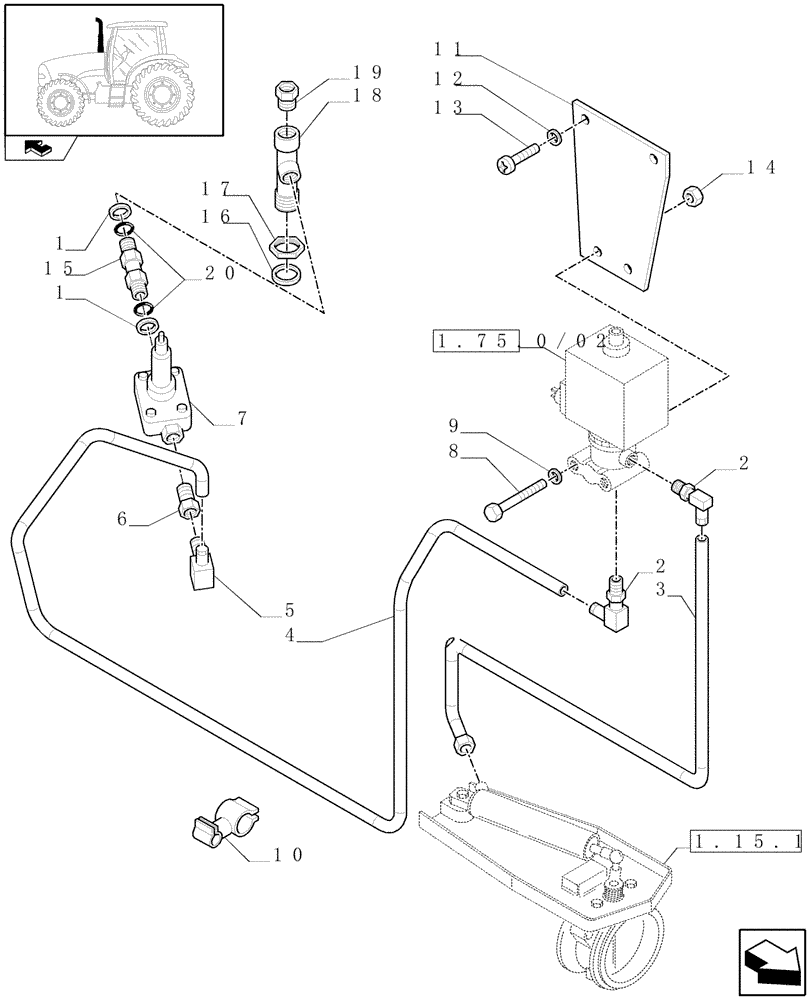

Запчасти Case IH PUMA 165 (1.15.1/01[01]) - (VAR.040) VERTICAL EXHAUST WITH EXHAUST BRAKE - PIPES (02) - ENGINE EQUIPMENT

1

87679173

BACK-UP RING,22.10mm, 25.80mm ID x 27.00mm OD x 2.50mm

2шт.

2

87678126

ELBOW,Hex, M12 x 1.4 x 28mm

2шт.

3

87302946

PLASTIC-RUBBER TUBE,6mm OD X 520mm

1шт.

4

87740794

PLASTIC-RUBBER TUBE,6mm OD X 2700mm

1шт.

5

87556851

90 ELBOW

1шт.

6

82036156

FITTING,M22 x 1.5 x NG12

1шт.

7

87553270

COCK

1шт.

8

56605

BOLT,Hex, M8 x 55, 8.8

2шт.

9

14496504

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

2шт.

10

87741421

COLLAR CLAMP

4шт.

11

87553269

SUPPORT

1шт.

12

17094714

LOCK WASHER,M6 x 13

2шт.

13

86508568

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8

2шт.

14

43362

NUT,M8 x 1.25, Cl 10

2шт.

15

87714795

HYD CONNECTOR

1шт.

16

82039003

O-RING

1шт.

17

82039004

LOCK NUT

1шт.

18

87714794

HYD CONNECTOR,M22 x 1.5

1шт.

19

82034157

ADAPTER

1шт.

20

87679174

O-RING,2.4mm Thk x 20.3mm ID, 70 Duro

2шт.
