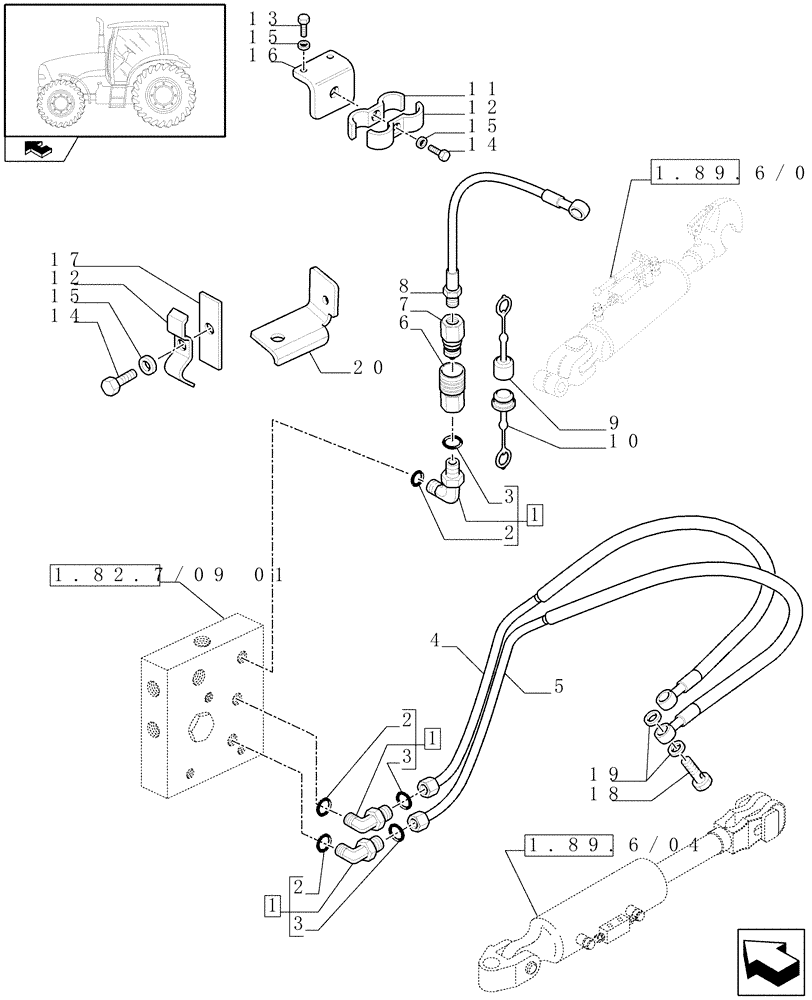

Запчасти Case IH PUMA 165 (1.82.7/09[02]) - (VAR.484) RIGHT LIFT ROD AND TOP LINK HYDRAULIC ADJUST W/ELECTRONIC CONTROL - PIPES (07) - HYDRAULIC SYSTEM

1

5194076

ELBOW,90 Deg, 11/16-16 ORFS x M16 x 1.5 ORB

11/16";M16 x 1.5

4шт.

2

14437885

O-RING,13.30mm ID x 2.40mm

1шт.

3

5185510

O-RING,1.78mm Thk x 9.25mm ID, 85 Duro

1шт.

4

87688259

HYD TUBE,7.9 mm ID x 10 mm OD

Upper

1шт.

5

87689079

HYD TUBE,7.9 mm ID x 10 mm OD x 900, 240.2 mm L

Lower

1шт.

6

47123022

QUICK MALE COUPLING,26mm ID x 33.2mm OD x 62.5mm L, Female

4шт.

7

47123021

HALF-COUPLING

4шт.

8

47123016

HYDRAULIC HOSE

940 mm lg

2шт.

9

47123381

PLUG

250 mm lg

2шт.

10

47123380

PLUG

241 mm lg

2шт.

11

4999554

CLAMP,2 Hoses

1шт.

12

85700613

CLAMP,1.75mm W x 0.20mm Thk

2шт.

13

83962783

SCREW,Pozidriv Pan Hd, M6 x 20mm, Cl 4.8, Full Thd

6 x 20

2шт.

14

10902621

SCREW,Hex, M6 x 25mm, Cl 8.8

2шт.

15

83935046

LOCK WASHER,Helical Spring, 1/4" ID x 0.489" OD x 0.062" Thk

3шт.

16

87528770

BRACKET

1шт.

17

87350829

MOUNTING PLATE

, Serial Range: -ZABH42034

1шт.

18

10184411

BANJO BOLT,M16 x 1.5 x 31mm, R50

2шт.

19

5167639

SEALING WASHER,13.4mm ID x 24mm OD x 1.5mm Thk

M16

4шт.

20

84248341

MOUNTING PLATE

, Start Serial: ZABH42035

1шт.
