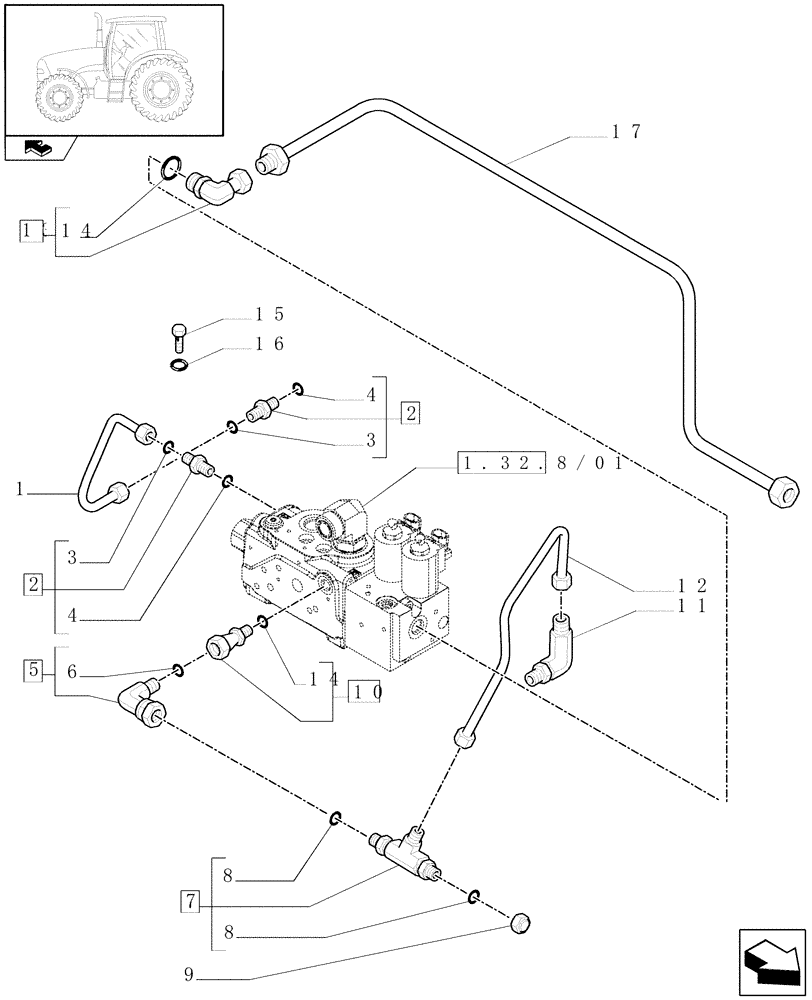

Запчасти Case IH PUMA 165 (1.82.1/02[01]) - (VAR.080-084-212-463) FRONT AXLE WITH ACTIVE SUSPENSIONS - LIFTER LINES (07) - HYDRAULIC SYSTEM

1

87392512

PIPE

Priority Valve Drain

1шт.

2

5192291

HYD CONNECTOR,1" - 14 ORFS x M22 x 1.5 ORB

2шт.

3

5185512

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

2шт.

4

14438085

O-RING,19.3mm ID x 2.4mm

2шт.

5

82020198

ELBOW

9/16"-18 (2x)

1шт.

6

81844850

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

1шт.

7

81862791

VALVE,9/16" - 18 ORFS x 9/16" - 18 ORFS x 9/16" - 18 ORFS

9/16"-18(3x)

1шт.

8

81827528

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

2шт.

9

5189973

PLUG

1шт.

10

47136376

HYD CONNECTOR

12 x 1.5;9/16"-18, Incl.N14

1шт.

11

47135296

90 ELBOW,9/16"-18 x 7/16"-20

9/16"-18;7/16"-20

1шт.

12

87391558

PIPE

Load Sensing, from Priority Valve to Pump Compensator

1шт.

13

87391555

ELBOW

9/16"-18; 12x1.5

1шт.

14

14437685

O-RING,9.30mm ID x 2.40mm

2шт.

15

10185011

BANJO BOLT,M12 x 1.25 x 23mm

1шт.

16

10287360

SEAL

12 x 18 x 1.5

2шт.

17

87396165

PIPE

13/16"-16;18 x 1.5

1шт.
