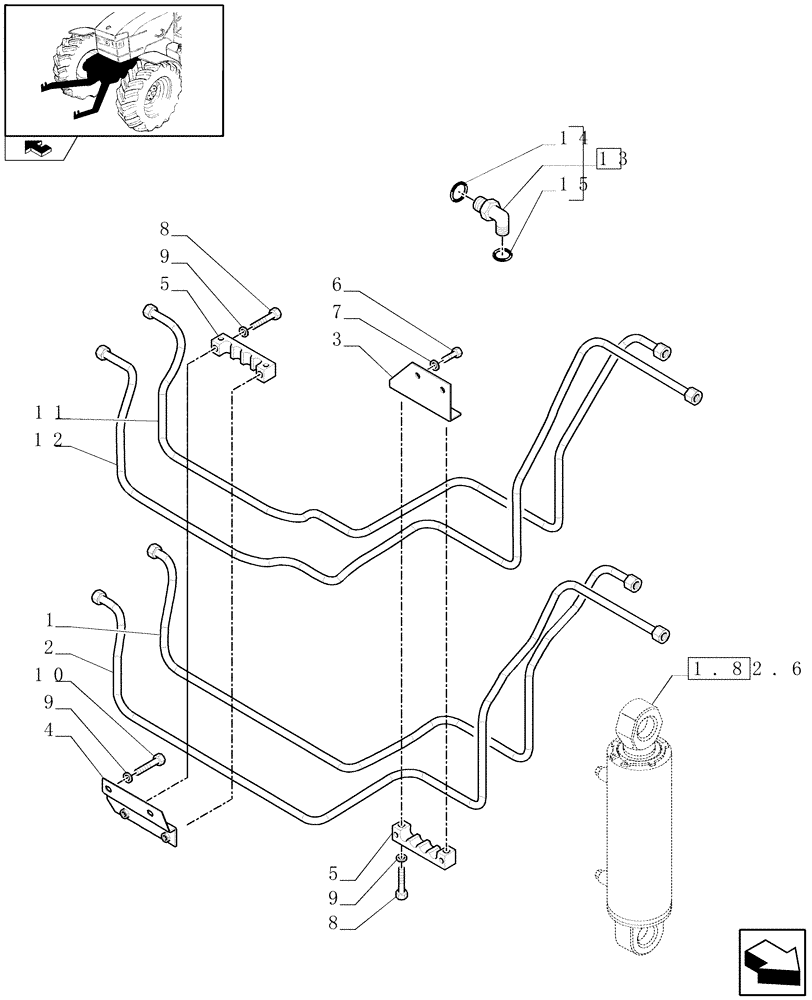

Запчасти Case IH PUMA 165 (1.81.9/03[06]) - (VAR.090) FRONT HPL FOR MID MOUNT REMOTES LESS PTO, WITH AUX. COUPLERS - PIPES AND BRACKETS - C6726 (07) - HYDRAULIC SYSTEM

1

87517999

PIPE

1шт.

Aux. Lower

1шт.

2

87713699

HYD TUBE,16 mm OD x 378 mm L

1шт.

Cyl. Lower

1шт.

3

87346861

BRACKET

1шт.

4

87346863

BRACKET

1шт.

5

87579043

CLAMP,4 Hoses

2шт.

6

11112124

SCREW,Hex, M12 x 20mm, Cl 8.8, Full Thd

2шт.

7

14496704

WASHER,13mm ID x 24mm OD x 2.5mm Thk

2шт.

8

16044024

BOLT,Hex, M8 x 1.25 x 40mm, Cl 8.8

4шт.

9

14496504

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

6шт.

10

16043421

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

2шт.

11

87518000

PIPE

1шт.

Aux. Raise

1шт.

12

87517998

PIPE

1шт.

Cyl. Raise

1шт.

13

82031421

90 ELBOW,13/16"-16 ORFS x M18 x 1.5 ORB

2шт.

14

14437985

O-RING,15.3mm ID x 2.4mm

2шт.

15

5185511

O-RING,1.78mm Thk x 12.42mm ID, 85 Duro

2шт.
