Запчасти Case IH PUMA 165 (1.75.4/13) - (VAR.043-052) HEATED FRONT AND REAR WINDOW - CABLES AND RELATED PARTS (06) - ELECTRICAL SYSTEMS

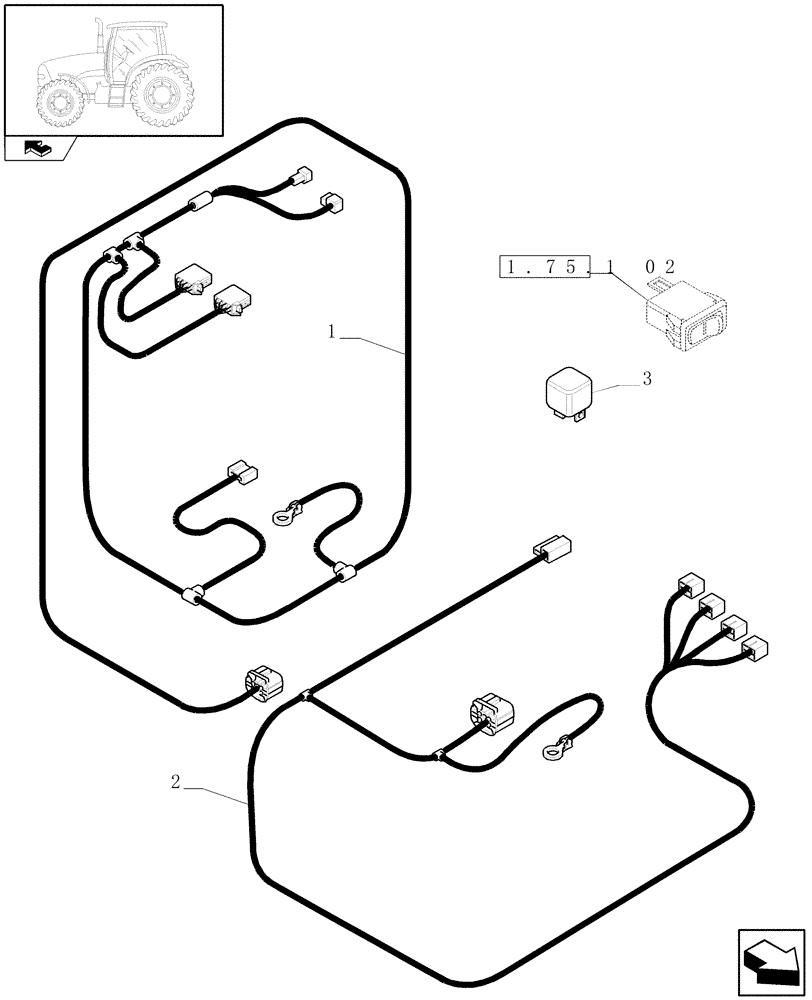

Схема запчастей Case IH PUMA 165 - (1.75.4/13) - (VAR.043-052) HEATED FRONT AND REAR WINDOW - CABLES AND RELATED PARTS (06) - ELECTRICAL SYSTEMS
3
2
1
1.75.1 02
home

Артикул

Название

Примечание

Количество

1

87729777

WIRE HARNESS

Heated Screens (Cab), Serial Range: -C6972

1шт.

1

84405729

WIRE HARNESS

CAB, Start Serial: D6972

1шт.

2

87677155

WIRE HARNESS

Heated Screens (Roof), Serial Range: -C6964

1шт.

2

84394005

WIRE HARNESS

Heated Screens (Roof), Start Serial: D6964

1шт.

3

82013124

RELAY,12V, 30A

30A

3шт.

3

82030798

RELAY,12V, 70A

70A

1шт.

Выбрано товаров: 6
