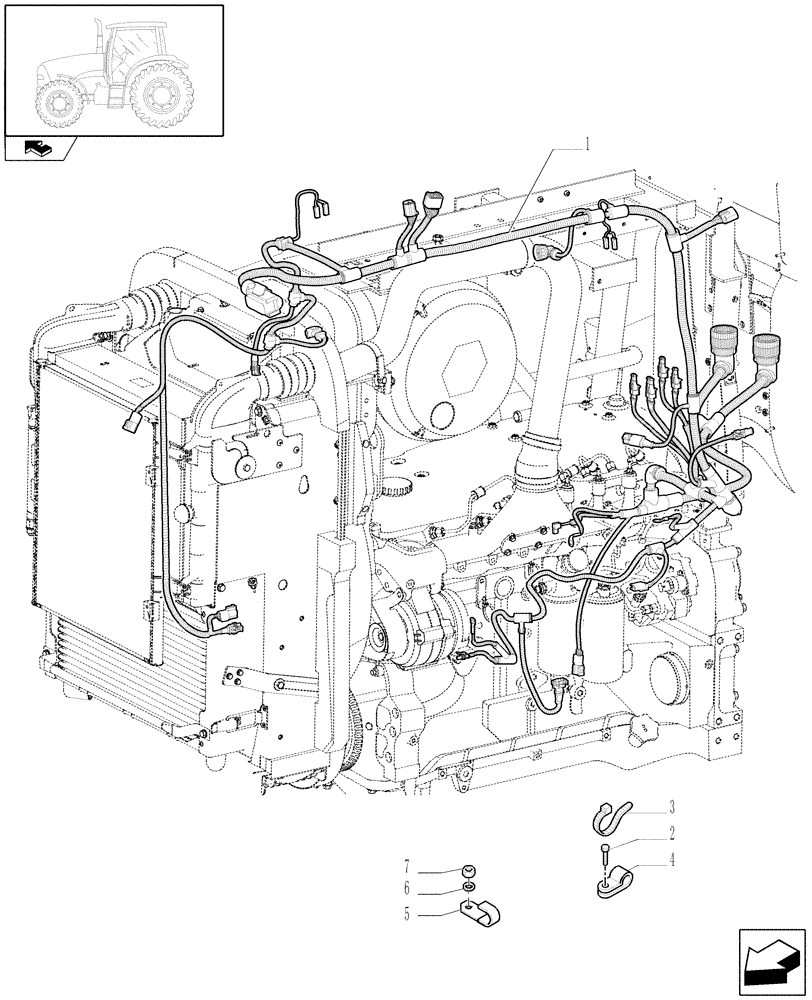

Запчасти Case IH PUMA 165 (1.75.4[03]) - FRONT MAIN CABLE (06) - ELECTRICAL SYSTEMS

1

84167496

WIRE HARNESS

Engine, Serial Range: -C6418

1шт.

1

84196353

WIRE HARNESS

Engine, Serial Range: D6418-C6738

1шт.

1

84286997

WIRE HARNESS

Engine, Serial Range: D6738-C7116

1шт.

1

84355168

WIRE HARNESS

Engine, Start Serial: D7116

1шт.

2

16043421

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

2шт.

2

16043221

BOLT,Hex, M8 x 16mm, Cl 8.8, Full Thd

2шт.

3

14560287

CABLE TIE,207.00mm L

COLLAR

1шт.

4

10450990

CLAMP,26mm, Coat, 9mm Bolt Hole, P Type

D=26

1шт.

5

5171792

CLAMP

2шт.

6

82879382

WASHER

1шт.

7

83958007

NUT,M8, G8

1шт.
