Запчасти Case IH PUMA 165 (1.75.1[07]) - ARMREST CONTROL UNIT - ELECTRONIC CONTROLS AND ELECTRONIC CONTROL UNIT (06) - ELECTRICAL SYSTEMS

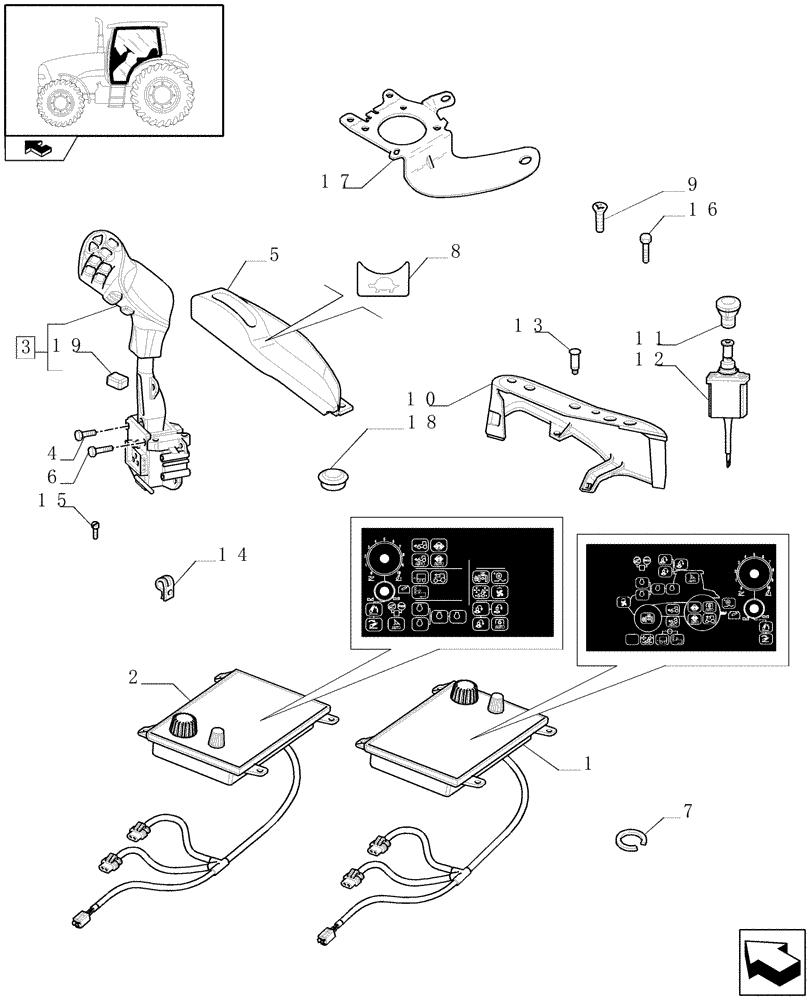

Схема запчастей Case IH PUMA 165 - (1.75.1[07]) - ARMREST CONTROL UNIT - ELECTRONIC CONTROLS AND ELECTRONIC CONTROL UNIT (06) - ELECTRICAL SYSTEMS
8
home
15
11
3
16
19
5
9
10
4
1
12
6
14
13
7
18
17
2

Артикул

Название

Примечание

Количество

1

84241061

ECU

1шт.

St. Valentin Production Models only

1шт.

1

84171966

PANEL

1шт.

2

84241064

ECU

1шт.

Basildon Production Models only

1шт.

3

84209526

LEVER

1шт.

84209526R

REMAN-JOYSTICK

PUMA 165, PUMA 180, PUMA 195, PUMA 210 all SERIAL NUMBER Z*BE 40001 --> 50000 AND 60001 --> … (1/09-)

1шт.

84209526C

CORE-JOYSTICK

Return Number

1шт.

4

15903977

SELF-TAP SCREW,Pan Head, M4.8 x 1.6 x 19mm

2шт.

5

84122981

BEZEL

1шт.

6

13276621

SCREW,Pozidriv Pan Hd, M6 x 25mm, Cl 8.8, Full Thd

4шт.

7

81865873

CLIP,19.40mm D

1шт.

8

84145169

DECAL

1шт.

9

15687901

SELF-TAP SCREW,Cross Pan Hd, M4.2 x 9.50mm

2шт.

10

84216544

HOUSING

1шт.

11

87638633

KNOB

Yellow

1шт.

12

84218194

SWITCH ASSY

1шт.

13

47056319

WARNING LIGHT

Yellow

1шт.

14

14369071

SPRING NUT,4.8mm x 14.6mm x 4mm

NUT 4.8 x 14.6 x 7

12шт.

15

86599775

SCREW,M3 x 0.5 x 14.4mm OAL, Cl 4.8

5шт.

16

10589928

SCREW,Flat Hd, M6 x 20.2mm OAL 10mm Collar

M6 x 22

4шт.

17

84150720

HOLDER

1шт.

18

87725444

BLANK-OFF PLUG,57.5mm OD, Black

1шт.

Less Joystick

1шт.

19

84238354

CAP

1шт.

Выбрано товаров: 25
