Запчасти Case IH PUMA 165 (1.75.1[06]) - ARMREST CONTROL UNIT - ELECTRONIC CONTROLS AND ELECTRONIC CONTROL UNIT (06) - ELECTRICAL SYSTEMS

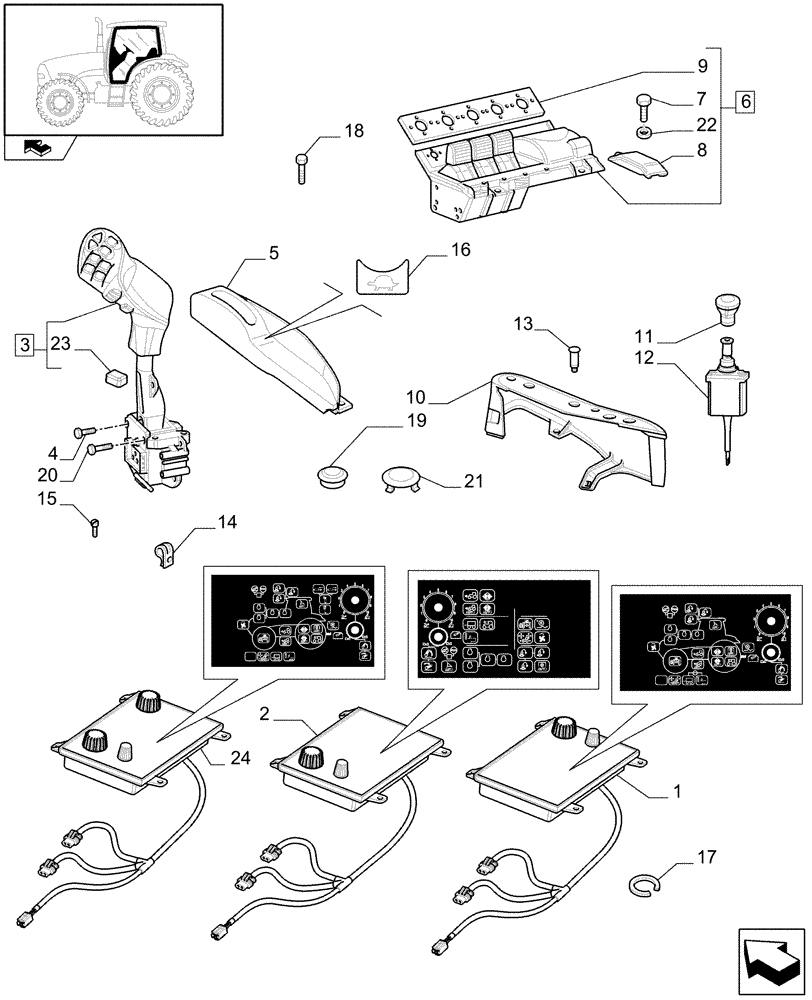

Схема запчастей Case IH PUMA 165 - (1.75.1[06]) - ARMREST CONTROL UNIT - ELECTRONIC CONTROLS AND ELECTRONIC CONTROL UNIT (06) - ELECTRICAL SYSTEMS
4
8
19
22
2
9
home
16
12
17
20
7
24
23
10
1
3
15
21
11
18
6
5
13
14

Артикул

Название

Примечание

Количество

1

84241061

ECU

, Serial Range: -C7202

1шт.

St. Valentin Production Models only

1шт.

1

84171966

PANEL

1шт.

2

84241064

ECU

1шт.

Basildon Production Models only

1шт.

3

84209526

LEVER

1шт.

84209526R

REMAN-JOYSTICK

PUMA 165, PUMA 180, PUMA 195, PUMA 210 all SERIAL NUMBER Z*BE 40001 --> 50000 AND 60001 --> … (1/09-)

1шт.

84209526C

CORE-JOYSTICK

Return Number

1шт.

4

15903977

SELF-TAP SCREW,Pan Head, M4.8 x 1.6 x 19mm

2шт.

5

84122981

BEZEL

1шт.

6

84166592

CONTROL LEVER

ASSY

1шт.

7

82016959

SCREW,M3.5 x 12mm

8шт.

8

87670714

COVER

1шт.

9

87613728

PANEL

2шт.

10

84216544

HOUSING

1шт.

11

87638633

KNOB

Yellow

1шт.

12

84218194

SWITCH ASSY

1шт.

13

47056319

WARNING LIGHT

Yellow

1шт.

14

14369071

SPRING NUT,4.8mm x 14.6mm x 4mm

NUT 4.8 x 14.6 x 7

12шт.

15

86599775

SCREW,M3 x 0.5 x 14.4mm OAL, Cl 4.8

5шт.

16

84145169

DECAL

M6 x 17

4шт.

17

81865873

CLIP,19.40mm D

1шт.

18

10589928

SCREW,Flat Hd, M6 x 20.2mm OAL 10mm Collar

M6 x 22

4шт.

19

81862738

PLUG,M38 x 28 x 5mm

28MM

6шт.

20

13276621

SCREW,Pozidriv Pan Hd, M6 x 25mm, Cl 8.8, Full Thd

4шт.

21

87725444

BLANK-OFF PLUG,57.5mm OD, Black

1шт.

Less Joystick

1шт.

22

495-81251

WASHER,0.16" ID x 0.31" OD x 0.04" Thk

8шт.

23

84238354

CAP

1шт.

24

84241060

ECU

, Start Serial: D7202

1шт.

St. Valentin Production Models only

1шт.

Выбрано товаров: 31
