(1.75.0/01[02]) - (VAR.212-463) FRONT AXLE WITH ACTIVE SUSPENSION - SOLENOID VALVES, SENSOR AND SWITCH

Запчасти Case IH PUMA 165 (1.75.0/01[02]) - (VAR.212-463) FRONT AXLE WITH ACTIVE SUSPENSION - SOLENOID VALVES, SENSOR AND SWITCH (06) - ELECTRICAL SYSTEMS

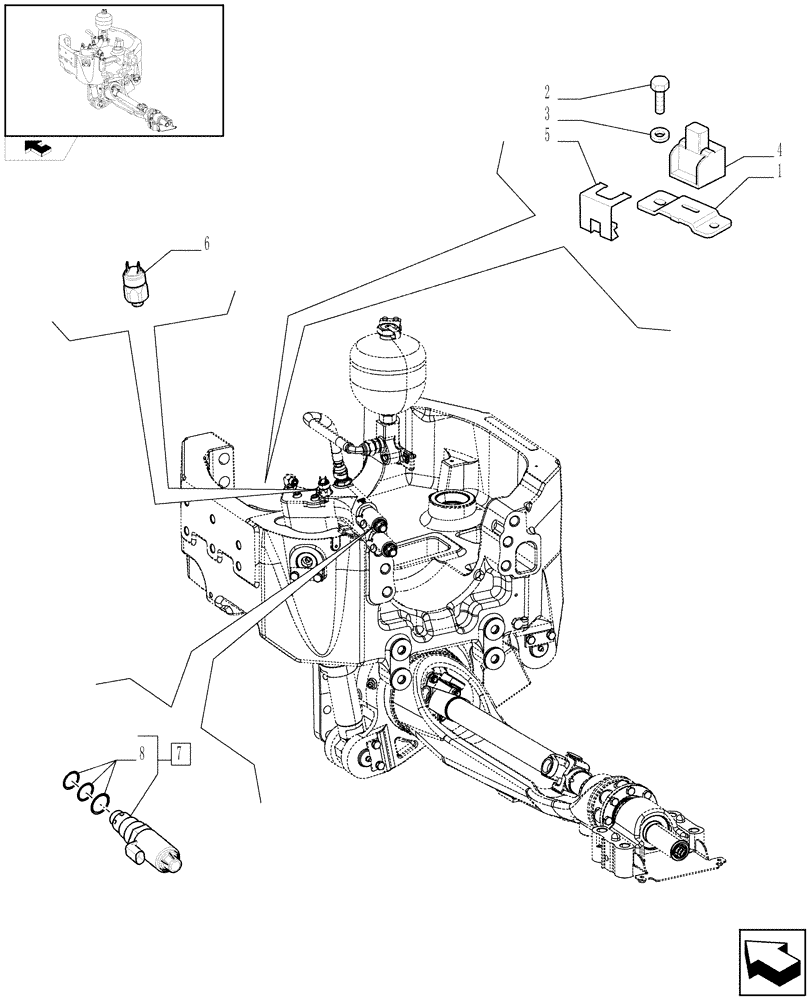

Схема запчастей Case IH PUMA 165 - (1.75.0/01[02]) - (VAR.212-463) FRONT AXLE WITH ACTIVE SUSPENSION - SOLENOID VALVES, SENSOR AND SWITCH (06) - ELECTRICAL SYSTEMS
3
2
6
8
home
5
7
4
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87347720

BRACKET

1шт.

2

10902421

SCREW,Hex, M6 x 20mm, Cl 8.8

2шт.

3

10615479

LOCK WASHER,6.4mm ID x 11mm OD x 0.7mm Thk

2шт.

4

87306782

RELAY

1шт.

5

87319086

MOUNTING CLIP

1шт.

6

87490536

PRESSURE SWITCH

1шт.

7

87383960

SOLENOID VALVE

ASSY

2шт.

8

84284791

SEAL KIT

1шт.
