Запчасти Case IH PUMA 165 (1.75.0[04]) - TRANSMISSION TOP COVER CONTROL VALVE SWITCHES AND SOLENOID VALVES (06) - ELECTRICAL SYSTEMS

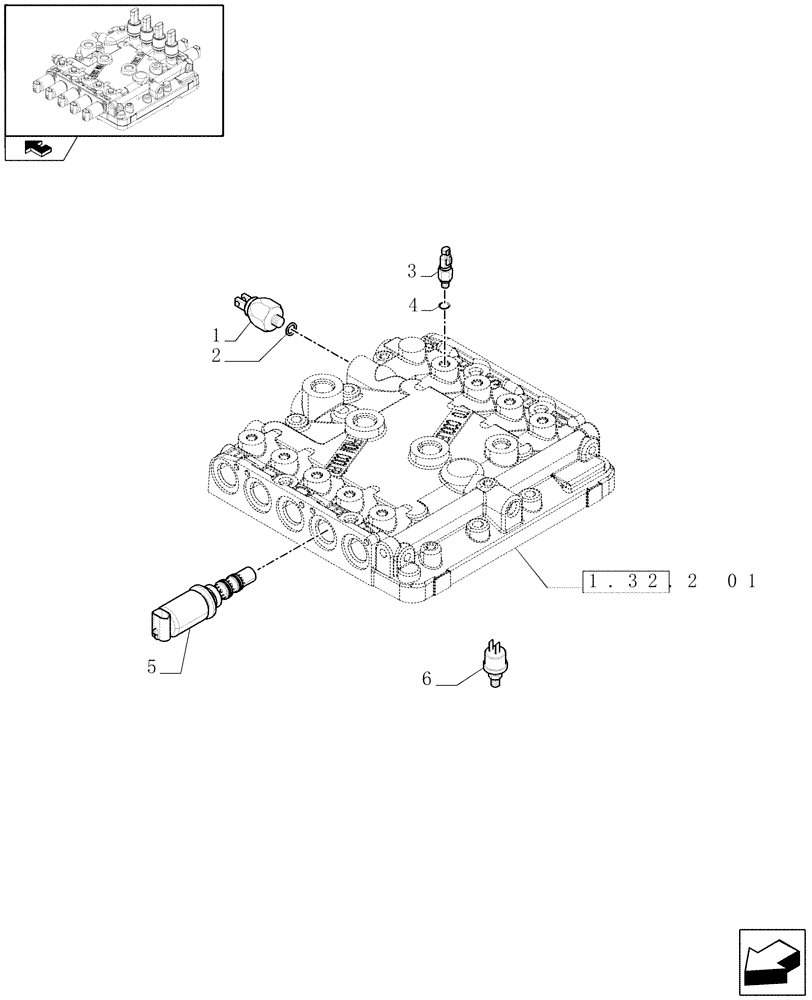

Схема запчастей Case IH PUMA 165 - (1.75.0[04]) - TRANSMISSION TOP COVER CONTROL VALVE SWITCHES AND SOLENOID VALVES (06) - ELECTRICAL SYSTEMS
2
3
6
1
4
5
home
1.32.2 01

Артикул

Название

Примечание

Количество

1

87395493

PRESSURE SWITCH

Transm. Oil

1шт.

2

5183780

SEALING WASHER,9.73mm ID x 18mm OD x 1.5mm Thk

D=12

1шт.

3

87494226

PRESSURE SWITCH

Transm. Oil

4шт.

High, Mid, Low & Reverse

1шт.

4

14437785

O-RING,11.3mm ID x 2.4mm

4шт.

5

87739558

SOLENOID VALVE,14W

Green Connectors

1шт.

Clutches

1шт.

5

87739558R

REMAN-SOLENOID

Green Connectors, Clutches

1шт.

5

87739558C

CORE-SOLENOID

Return Number

1шт.

6

82008236

SWITCH ASSY

Transm. Oil

1шт.

Выбрано товаров: 10
