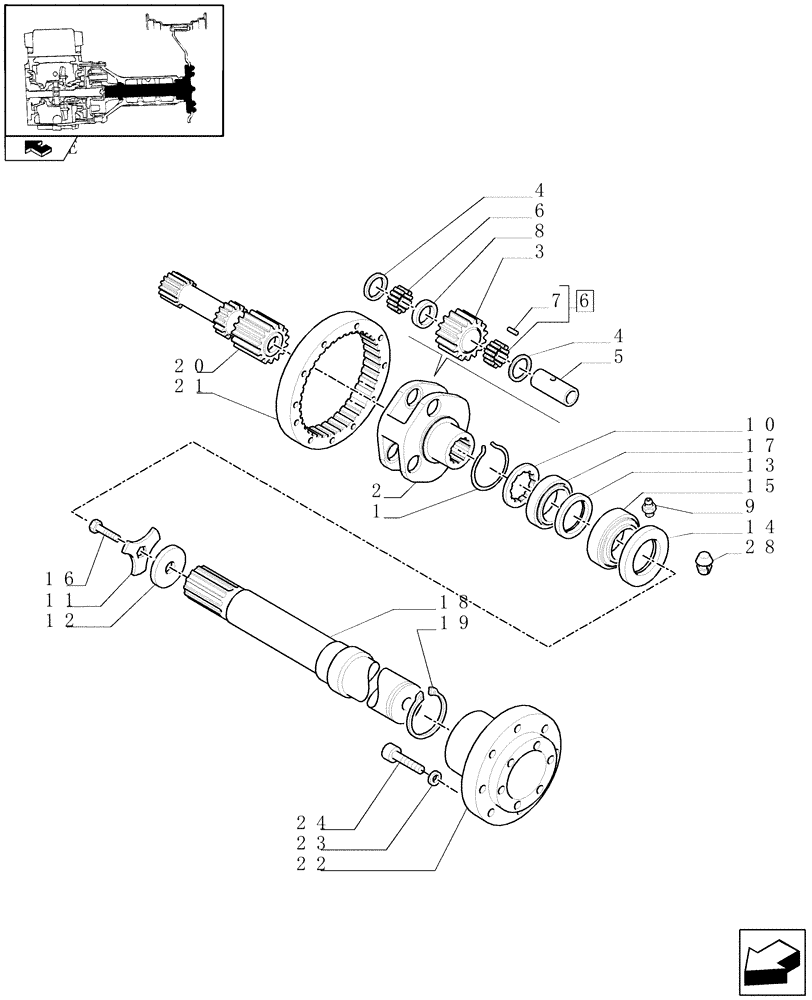

Запчасти Case IH PUMA 165 (1.48.1) - FINAL DRIVE, GEARS AND SHAFTS (05) - REAR AXLE

1

5136132

CIRCLIP,4mm Thk

2шт.

2

5165494

SUPPORT

2шт.

3

87558449

IDLER PINION

6шт.

4

5136128

THRUST WASHER,62.5mm ID x 108mm OD x 1mm Thk

12шт.

5

5136130

PIN,62.4mm OD x 134mm L

6шт.

6

5136131

ROLLER BEARING,62.4mm ID x 76.4mm OD x 32mm W

6шт.

7

5116733

NEEDLE ROLLER,62.4mm ID x 76.4mm OD x 0mm W

62шт.

8

5136133

SPACER,64.5mm ID x 76.3mm OD x 5mm L

6шт.

9

13407211

LUBE NIPPLE,M10 x 1

2шт.

10

5121644

THRUST WASHER,78mm ID x 112mm OD x 5mm Thk

2шт.

11

5124397

LOCKING PLATE

2шт.

12

5124797

SPECIAL WASHER

2шт.

13

5165505

SEAL,88mm ID x 110mm OD x 12mm Thk

88 x 110 x 12

2шт.

14

5196486

SEAL,114mm ID x 146mm OD x 16mm Thk

2шт.

15

5188472

BALL BEARING,95mm ID x 145mm OD x 39mm W

2шт.

16

15992537

BOLT,Hex, M22 x 1.5 x 55mm, Cl 10.9, Full Thd

2шт.

17

24903500

TAPERED BEARING,85mm ID x 130mm OD x 29mm W

85 x 130 x 29

2шт.

18

5198565

SHAFT

98"

2шт.

19

11082174

CIRCLIP,105mm OD, DAC

D=105

2шт.

20

87558448

GEAR SHAFT

2шт.

21

87307352

RING GEAR

2шт.

22

47126431

HUB

2шт.

23

47126236

WASHER,23mm ID x 44mm OD x 6mm Thk

20шт.

24

87688508

BOLT,Hex, M22 x 2.5 x 90mm, Cl 8.8

M22 x 90

12шт.

25

87645102

WEDGE,Lock, Silver

2шт.

26

47126236

WASHER,23mm ID x 44mm OD x 6mm Thk

12шт.

27

15225924

BOLT,Hex, M22 x 2.5 x 60mm, Cl 8.8

20шт.

28

81865567

PLUG,M18.5 Hole

2шт.
