Запчасти Case IH PUMA 165 (1.17.5/01) - (VAR.087/1-088-089-090-091-092) FRONT HPL - RADIATOR SEALS (02) - ENGINE EQUIPMENT

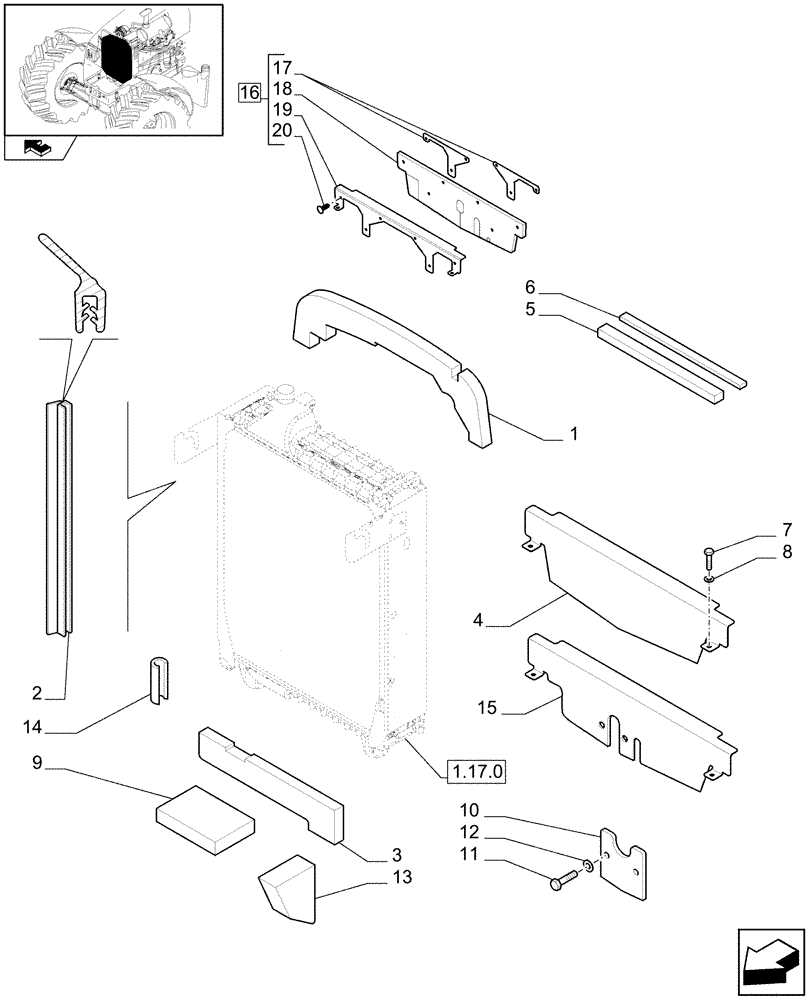

Схема запчастей Case IH PUMA 165 - (1.17.5/01) - (VAR.087/1-088-089-090-091-092) FRONT HPL - RADIATOR SEALS (02) - ENGINE EQUIPMENT
home
3
10
4
15
18
2
6
16
8
17
1
9
12
13
19
7
11
14
5
20
1.17.0

Артикул

Название

Примечание

Количество

1

82038279

SEAL

1шт.

2

82039110

SEAL

2шт.

3

87380756

FOAM INSULATION

2шт.

4

87353442

DEFLECTOR

, Serial Range: -C7167

1шт.

With Front HPL L/PTO L/AUX Couplers, VAR.088

1шт.

With Front HPL L/PTO L/AUX Couplers, VAR.087/1

1шт.

4

87353445

DEFLECTOR

, Serial Range: -C7167

1шт.

With Front HPL L/PTO W/AUX Couplers, VAR.090

1шт.

5

82038425

SEALING STRIP,680mm x 25mm x 10mm

680MM, Serial Range: -C7370

1шт.

5

87580269

SEAL

1шт.

6

82038264

SEAL,510mm x 15mm x 5mm

510MM

1шт.

7

16043221

BOLT,Hex, M8 x 16mm, Cl 8.8, Full Thd

2шт.

8

10519604

WASHER,8.15mm ID x 17mm OD x 2mm Thk

2шт.

9

82030145

FOAM INSULATION

2шт.

10

87390678

PLATE

, Serial Range: -C7370

1шт.

With Front HPL W/PTO L/AUX Couplers, VAR.089

1шт.

With Front HPL W/PTO W/AUX Couplers, VAR.091

1шт.

With Front HPL W/PTO L/AUX Couplers, VAR.092

1шт.

11

10979421

SCREW,Hex, M6 x 10mm, Cl 8.8

, Serial Range: -C7370

1шт.

12

14496401

WASHER,M6.4 x 12.00mm x 1.60mm

, Serial Range: -C7370

1шт.

13

82039468

INSULATOR

1шт.

14

82015330

BUMPER

2шт.

With Front HPL W/PTO W/AUX Couplers, VAR.091

1шт.

15

87701774

DEFLECTOR

, Serial Range: -C7167

1шт.

With Front HPL W/PTO W/AUX Couplers, VAR.091

1шт.

15

87701772

DEFLECTOR

, Serial Range: -C7370

1шт.

With Front HPL W/PTO L/AUX Couplers, VAR.089

1шт.

With Front HPL W/PTO L/AUX Couplers, VAR.092

1шт.

15

84546781

BAFFLE

, Serial Range: D7167-C7370

1шт.

With Front HPL L/PTO W/AUX Couplers, VAR.090

1шт.

15

84546779

BAFFLE

, Serial Range: D7167-C7370

1шт.

With Front HPL L/PTO L/AUX Couplers, VAR.088

1шт.

With Front HPL L/PTO L/AUX Couplers, VAR.087/1

1шт.

15

84546783

DEFLECTOR

, Serial Range: D7167-C7370

1шт.

With Front HPL W/PTO W/AUX Couplers, VAR.091

1шт.

16

84543377

DEFLECTOR

ASSY, Incl 17-20, Start Serial: D7370

1шт.

With Front HPL L/PTO L/AUX Couplers, VAR.087/1

1шт.

With Front HPL L/PTO W/AUX Couplers, VAR.090

1шт.

With Front HPL W/PTO L/AUX Couplers, VAR.089

1шт.

With Front HPL W/PTO W/AUX Couplers, VAR.091

1шт.

17

87649703

DEFLECTOR

2шт.

18

84543379

FOAM

1шт.

19

84543378

BAFFLE

1шт.

20

87635853

STUD,7.1mm D

6шт.

Выбрано товаров: 44
