Запчасти Case IH PUMA 165 (1.95.0[01]) - BRAKE PEDALS (10) - OPERATORS PLATFORM/CAB

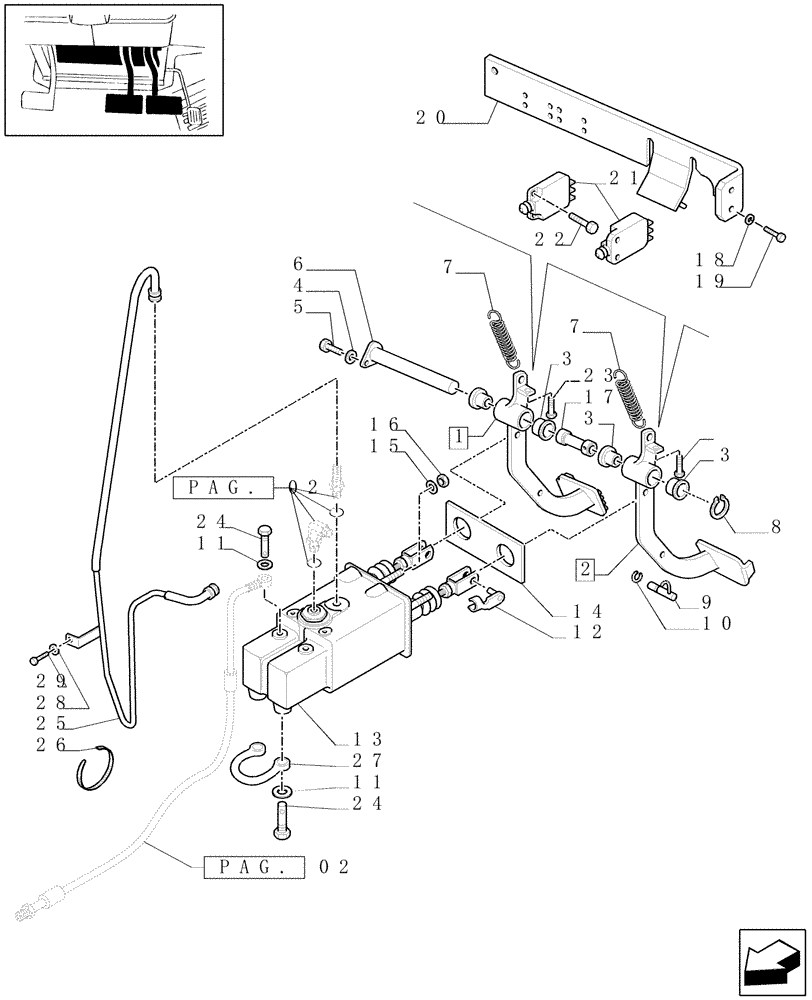

Схема запчастей Case IH PUMA 165 - (1.95.0[01]) - BRAKE PEDALS (10) - OPERATORS PLATFORM/CAB
7
20
29
13
pag. 02
1
28
pag. 02
21
22
7
27
9
5
6
24
11
25
17
23
15
11
2
24
12
19
10
14
4
26
18
3
16
3
3
8

Артикул

Название

Примечание

Количество

1

87328173

PEDAL

RH, Includes Ref. 3, 23

1шт.

2

87328466

PEDAL

LH, Includes Ref. 3, 23

1шт.

3

5155548

BUSHING,25mm ID x 31.05mm OD x 32mm L

4шт.

4

10615479

LOCK WASHER,6.4mm ID x 11mm OD x 0.7mm Thk

1шт.

5

10902024

SCREW,Hex, M6 x 12mm, Cl 8.8

1шт.

6

82022428

SHAFT,20mm ID x 25mm OD x 348mm L

1шт.

7

5153180

SPRING,21mm OD x 84mm L

2шт.

8

83937363

SNAP RING

1шт.

9

87325895

PIN

1шт.

10

11088171

SNAP RING,M11

1шт.

11

2854292

SEALING WASHER,12mm ID x 17mm OD x 1.5mm Thk

2шт.

12

87316560

PIN,10mm OD x 23mm L

2шт.

13

87315873

MASTER CYLINDER

1шт.

87754484R

REMAN-MASTER CYLINDE

PUMA 195 , PUMA 180 , PUMA 210 , PUMA 165 all ( 1/07 - ) Reman for new P/N 87315873

1шт.

87754484C

CORE-MASTER CYLINDER

Return Number

1шт.

14

87316476

PLATE

2шт.

15

10571779

LOCK WASHER,Helical Spring, 8.10mm ID x 14.80mm OD x 2.00mm, ZNM

4шт.

16

16100811

NUT,Hex, M8, 6.80mm, Cl 8, ZND

4шт.

17

87310426

SPACER,32mm ID x 38mm OD x 134mm L

1шт.

18

10516679

LOCK WASHER,Helical Spring, 8.20mm ID x 14.80mm OD x 2.20mm, C72, ZNM

3шт.

19

16043424

SCREW,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

3шт.

20

87378187

SUPPORT

, Serial Range: -C5746

1шт.

20

84183613

SUPPORT

, Start Serial: D5746

1шт.

21

82026949

PUSH BUTTON SWITCH

Brake

2шт.

22

83963569

CAPTIVE WASHER SCREW,Pan Hd, M4 x 12mm, Cl 4.8

4шт.

23

87801302

ADJUSTMENT SCREW

2шт.

24

5121685

BANJO BOLT,M12 x 1.5 x 23mm

2шт.

25

87580283

HYD TUBE

1шт.

26

82013031

CABLE TIE,193mm L

CABLE STRAP

1шт.

27

87313304

CLIP

1шт.

28

14496501

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

1шт.

29

16043221

BOLT,Hex, M8 x 16mm, Cl 8.8, Full Thd

1шт.

Выбрано товаров: 32
