Запчасти Case IH PUMA 165 (1.94.0[03A]) - ROOF WITH HIGH PROFILE LESS HIGH VISIBILITY PANEL - HEADLINER - D5936 (10) - OPERATORS PLATFORM/CAB

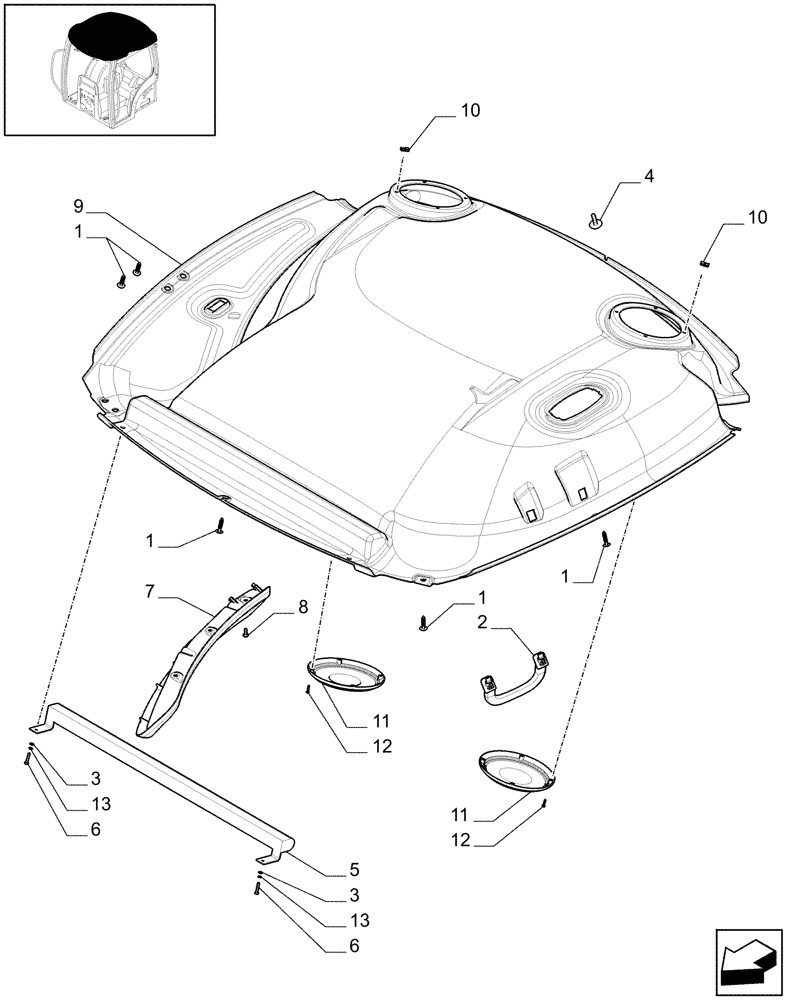

Схема запчастей Case IH PUMA 165 - (1.94.0[03A]) - ROOF WITH HIGH PROFILE LESS HIGH VISIBILITY PANEL - HEADLINER - D5936 (10) - OPERATORS PLATFORM/CAB
8
12
10
1
1
6
1
3
1
1
9
3
13
10
4
6
2
13
7
5
1
1
12

Артикул

Название

Примечание

Количество

1

87704231

PLASTIC PLUG,6.8mm D x 35mm L, Light Grey

5шт.

2

82035644

HANDLE

, Serial Range: -C6454

1шт.

2

84227380

HANDLE

, Start Serial: D6454

1шт.

3

14496301

WASHER,5.3mm ID x 10mm OD x 1mm Thk

2шт.

4

82023482

ANCHOR,Button Hd, 8.25mm x 35.00mm

1шт.

5

82028310

SUN CURTAIN

1шт.

6

10978221

BOLT,Hex, M5 x 25mm, Cl 8.8, Full Thd

2шт.

7

82033809

CONSOLE

, Serial Range: -C6235

1шт.

7

87673403

CONSOLE

, Start Serial: D6235

1шт.

With Deluxe Cab Less High Visibility Window with Electric Telescopic Shatterproof Mirros, VAR.006

1шт.

7

82038590

CONSOLE

, Serial Range: -C6235

1шт.

With Deluxe Cab Less High Visibility Window with Electric Telescopic Shatterproof Mirros, VAR.006

1шт.

7

87673408

CONSOLE

, Start Serial: D6235

1шт.

8

81853129

SCREW,Pozidriv Pan Hd, M6 x 16mm, Cl 4.8, Full Thd

3шт.

9

87621050

ROOF LINING

1шт.

10

81872135

NUT,Retaining, M4.20

8шт.

11

82022875

GRILLE,185mm OD

Speaker

2шт.

12

15642707

SCREW,Pozidriv Pan Hd, M3.5 x 16mm

8шт.

13

12605271

WASHER

D.I. 5

2шт.

Выбрано товаров: 19
