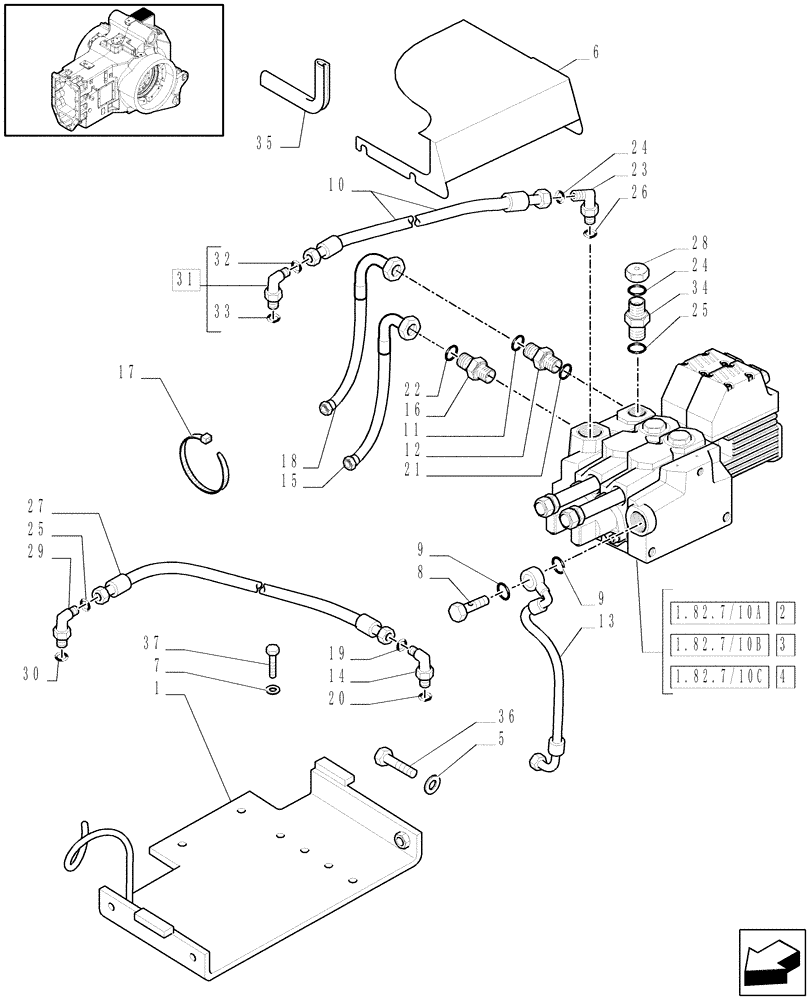

Запчасти Case IH PUMA 165 (1.82.7/10) - (VAR.108-109-110) ELECTRONIC MID MOUNTED VALVES (07) - HYDRAULIC SYSTEM

1

87598923

SUPPORT

1шт.

2

82038052

CONTROL VALVE

, Serial Range: -C6544

1шт.

W/Equip. 108, 2 x Electronic mid mounted Valves

1шт.

2

84214464

CONTROL VALVE

, Start Serial: D6544

1шт.

W/Equip. 108, 2 x Electronic mid mounted Valves

1шт.

2

84214464R

REMAN-HYD VALVE

Reman Valve Assy

1шт.

2

84214464C

CORE-VALVE HYD

Core Return Number

1шт.

3

82038054

CONTROL VALVE

, Serial Range: -C6544

1шт.

W/Equip. 109, 3 x Electronic mid mounted Valves

1шт.

84214465R

REMAN-HYD VALVE

PUMA 165, PUMA 180, PUMA 195, PUMA 210 all (1/07-), Reman For New P/N 82038054

1шт.

84214465C

CORE-VALVE HYD

Return Number

1шт.

3

84214465

CONTROL VALVE

, Start Serial: D6544

1шт.

W/Equip. 109, 3 x Electronic mid mounted Valves

1шт.

84214465R

REMAN-HYD VALVE

PUMA 165, PUMA 180, PUMA 195, PUMA 210 all Start Serial: D6544 (1/07-)

1шт.

84214465C

CORE-VALVE HYD

Return Number

1шт.

4

82038055

CONTROL VALVE

, Serial Range: -C6544

1шт.

W/Equip. 110, 4 x Electronic mid mounted Valves

1шт.

4

84214466

CONTROL VALVE

, Start Serial: D6544

1шт.

W/Equip. 110, 4 x Electronic mid mounted Valves

1шт.

5

12626201

WASHER,10.2mm ID x 25mm OD x 3mm Thk

3шт.

6

87616768

COVER

, Serial Range: -C5797

3шт.

6

87667183

COVER ASSY

, Start Serial: D5797

1шт.

7

10519604

WASHER,8.15mm ID x 17mm OD x 2mm Thk

3шт.

8

5112588

BANJO BOLT,M22 x 1.5 x 40mm

1шт.

9

5165897

SEALING WASHER,22.7mm ID x 30mm OD x 2mm Thk

2шт.

10

87568645

HYDRAULIC HOSE,15.88mm ID x 1080mm L, SAE 100R2

1шт.

11

81844851

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

12

81863515

HYD CONNECTOR,M14 x 11/16"-16 ORS

1шт.

13

87535351

HOSE,15.88mm ID x 730mm L, SAE 100R2

Return, Serial Range: -C6746

1шт.

13

87736301

HOSE ASSY.,15.88mm ID x 800mm L, SAE 100R3

Return, Start Serial: D6746

1шт.

14

5197118

ELBOW,90 Deg, 1"3/16-12 ORFS x M27 x 2 ORB

1шт.

15

87314897

HOSE,6.35mm ID x 980mm L, SAE 100R2

L= 980 MM

1шт.

16

5185045

HYD CONNECTOR

1шт.

17

82001041

CABLE TIE,0.190" x 7.00" / 200 mm L

CABLE STRAP

3шт.

18

87535352

HOSE ASSY.

L= 780 MM

1шт.

19

5185513

O-RING,1.78mm Thk x 18.77mm ID, 85 Duro

1шт.

20

14438185

O-RING,24mm ID x 3mm

1шт.

21

5185509

O-RING,1.78mm Thk x 7.66mm ID, 85 Duro

1шт.

22

14437685

O-RING,9.30mm ID x 2.40mm

1шт.

23

86579686

90 ELBOW,11/16"-16 ORFS x M14 x 1.5 ORB

1шт.

24

5185510

O-RING,1.78mm Thk x 9.25mm ID, 85 Duro

1шт.

25

14437785

O-RING,11.3mm ID x 2.4mm

1шт.

26

86598100

O-RING,2.2mm Thk x 13.3mm ID, Cl 6, 90 Duro

1шт.

27

87520009

FLEXIBLE HOSE

Pilot Return

1шт.

28

82016749

PLUG,11/16-16 ORFS

1шт.

29

5185548

ELBOW,M14 x 1.5mm ORB, 13/16"-16" ORFS

1шт.

30

5185511

O-RING,1.78mm Thk x 12.42mm ID, 85 Duro

1шт.

31

5194728

90 ELBOW

1шт.

32

5185512

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

33

14438085

O-RING,19.3mm ID x 2.4mm

1шт.

34

5196844

HYD CONNECTOR

1шт.

35

83964601

MOLDING,164mm L

2шт.

36

16040821

BOLT,Hex, M10 x 1.5 x 40mm, Cl 8.8, Full Thd

3шт.

37

16043421

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

3шт.
