(1.82.7/07[01]) - (VAR.718) 4 X ELECTRONIC REAR REMOTES

Запчасти Case IH PUMA 165 (1.82.7/07[01]) - (VAR.718) 4 X ELECTRONIC REAR REMOTES (07) - HYDRAULIC SYSTEM

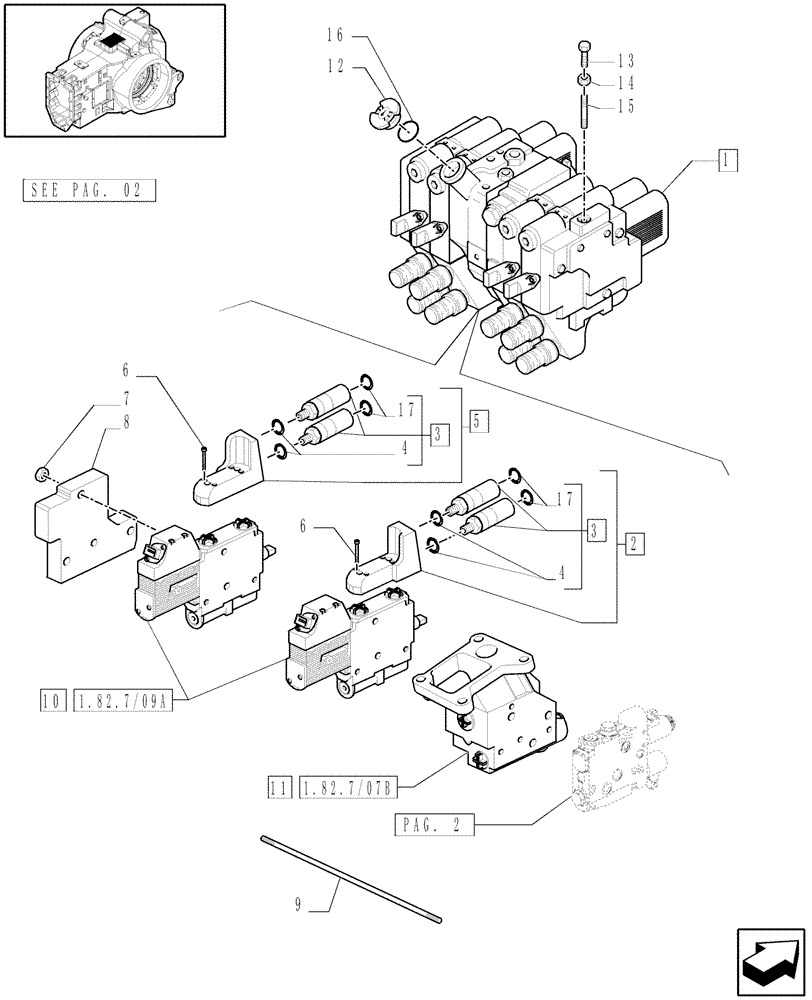

Схема запчастей Case IH PUMA 165 - (1.82.7/07[01]) - (VAR.718) 4 X ELECTRONIC REAR REMOTES (07) - HYDRAULIC SYSTEM
3
1.82.7/09a
6
5
14
16
see pag. 02
11
13
4
17
4
1
9
8
3
15
12
pag. 2
10
1.82.7/07b
7
17
6
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47135543

CONTROL VALVE

1шт.

2

87381983

HYDRAULIC MANIFOLD

is faster 4bm11

1шт.

3

87381944

COUPLING, QUICK, FEM

4шт.

4

14438085

O-RING,19.3mm ID x 2.4mm

4шт.

5

87381984

HYDRAULIC MANIFOLD

is faster 4bm10

1шт.

6

14305971

HEX SOC SCREW,M6 x 45mm, Cl 12.9

8шт.

7

5195169

NUT,M8

3шт.

8

5190710

PLATE

LH

1шт.

9

5195170

BOLT

3шт.

10

87531906

HYD VALVE SECTION

Auxiliary

2шт.

84125295R

REMAN-HYD VALVE

PUMA 165,PUMA 180, PUMA 195, PUMA 210 all (1/07-) REMAN FOR NEW P/N 87531906

2шт.

84125295C

CORE-VALVE HYD

Return Number

1шт.

11

47136297

BODY

1шт.

12

82005372

FILLER CAP,Male, Vented_No Lockable

1шт.

13

15970921

SCREW,Hex, M10 x 1.25 x 35mm, Cl 8.8, Full Thd

2шт.

14

12164711

NUT,M10 x 1.25, Cl 8

2шт.

15

13449721

STUD,M10 x 1.25 x 30mm L, Cl 8.8

2шт.

16

14463780

O-RING,0.139" Thk x 1.296" ID, -219, Cl 5, 75 Duro

1шт.

17

87382012

SEAL KIT

4шт.
