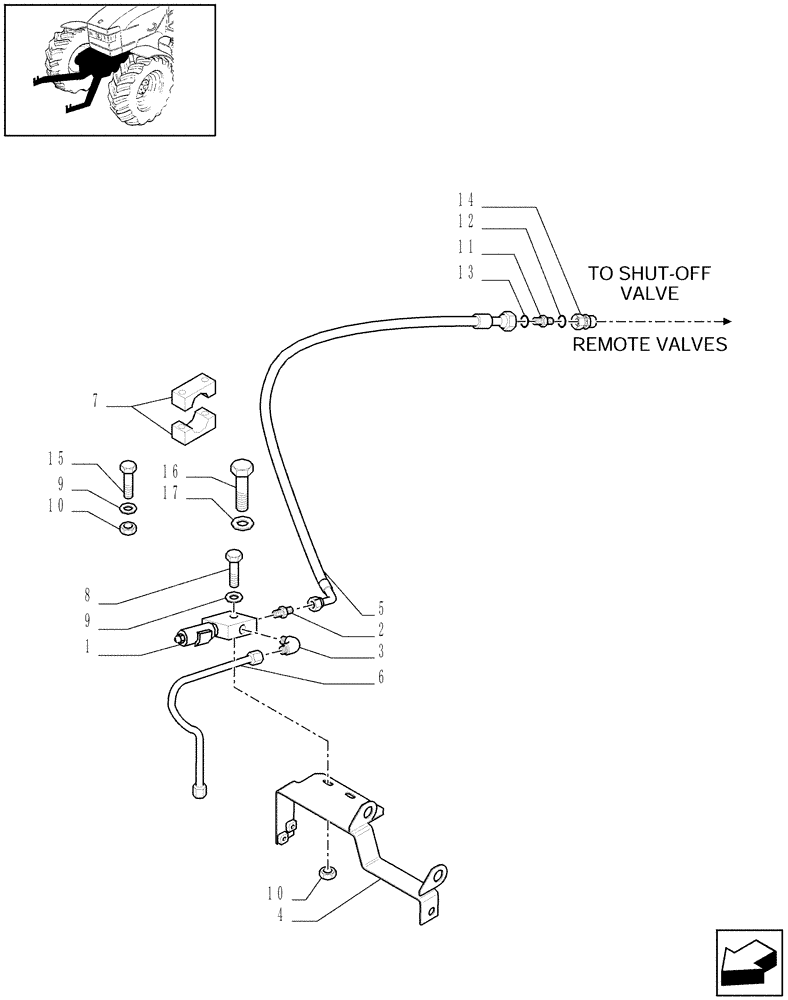

Запчасти Case IH PUMA 165 (1.80.5/01[01]) - (VAR.087) FRONT LINKAGE FOR SUPERSTEER AXLE (07) - HYDRAULIC SYSTEM

1

5141295

SOLENOID VALVE

1шт.

2

87312047

HYD CONNECTOR

1шт.

3

87312050

HYD CONNECTOR

1шт.

4

87579947

BRACKET

1шт.

5

87331296

FLEXIBLE HOSE

1шт.

6

87590684

FLEXIBLE HOSE

1шт.

7

82039603

HYD CONNECTOR

1шт.

8

10903721

BOLT,Hex, M6 x 55mm, Cl 8.8

2шт.

9

14496401

WASHER,M6.4 x 12.00mm x 1.60mm

2шт.

10

15896211

NUT,M6, Cl 8

2шт.

11

5185524

HYD CONNECTOR

2шт.

12

5185512

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

13

5135738

O-RING,0.103" Thk x 0.674" ID, -115, 80 Duro

1шт.

14

83972881

COUPLING

2шт.

15

10902421

SCREW,Hex, M6 x 20mm, Cl 8.8

1шт.

16

16043821

SCREW,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd

2шт.

17

14496501

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

2шт.
