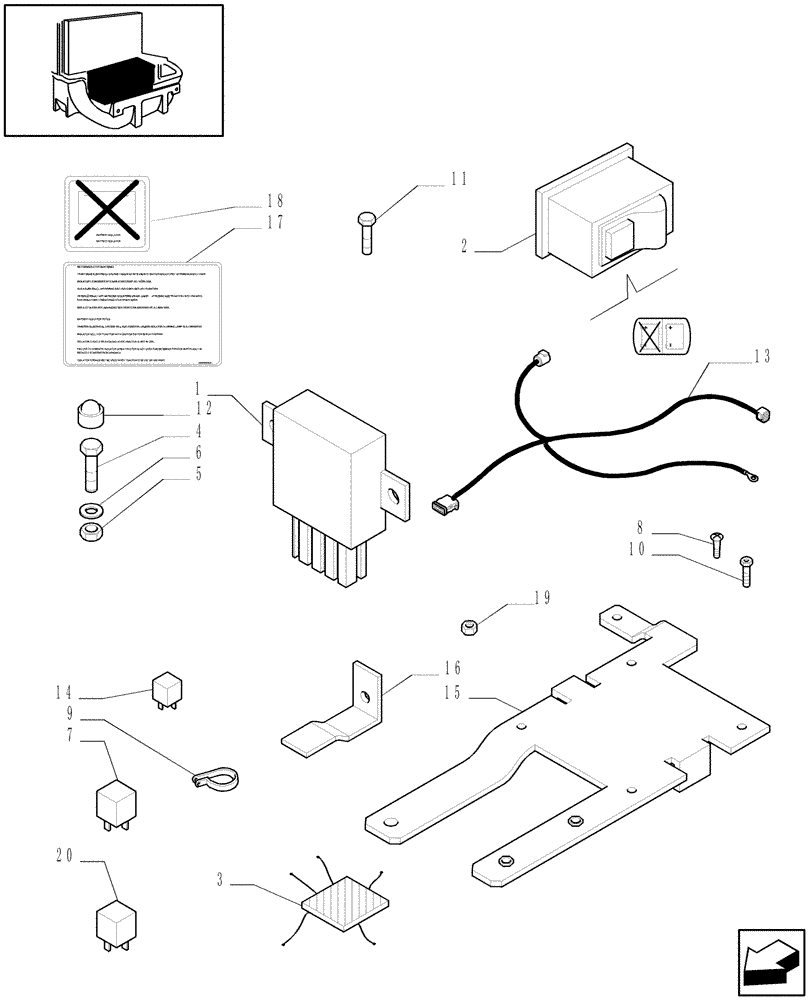

Запчасти Case IH PUMA 165 (1.75.3/01) - (VAR.752) ELECTRICALLY CONTROLLED BATTERY ISOLATOR - C5759 (06) - ELECTRICAL SYSTEMS

1

87392809

RELAY,High Current, 12V, 190A

Battery Disconnect Switch

1шт.

2

87392866

SWITCH ASSY

Battery Isolator

1шт.

3

87309858

WIRE HARNESS

1шт.

4

16043421

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

2шт.

5

82879527

NUT,Hex, M8

2шт.

6

14496501

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

2шт.

7

82023238

RELAY,12V, 20A

1шт.

8

13272117

SCREW,Pozidriv Pan Hd, M4 x 14mm, Cl 5.8, Full Thd

2шт.

9

10441490

COLLAR,14mm, Coat, 7mm Bolt Hole, P Type

2шт.

10

10902221

BOLT,Hex, M6 x 16mm, CL 8.8

2шт.

11

10977821

BOLT,M5 x 19.65mm OAL, Cl 8.8

6шт.

12

87516431

CUP,for M8 Nut

4шт.

13

87639178

WIRE HARNESS

1шт.

14

10395890

FUSE,5A, Mini, Beige

1шт.

15

87392817

BRACKET

1шт.

16

87392819

BRACKET

1шт.

17

82034481

DECAL

1шт.

18

82034482

DECAL

1шт.

19

15896211

NUT,M6, Cl 8

1шт.

20

87639044

RELAY

1шт.
