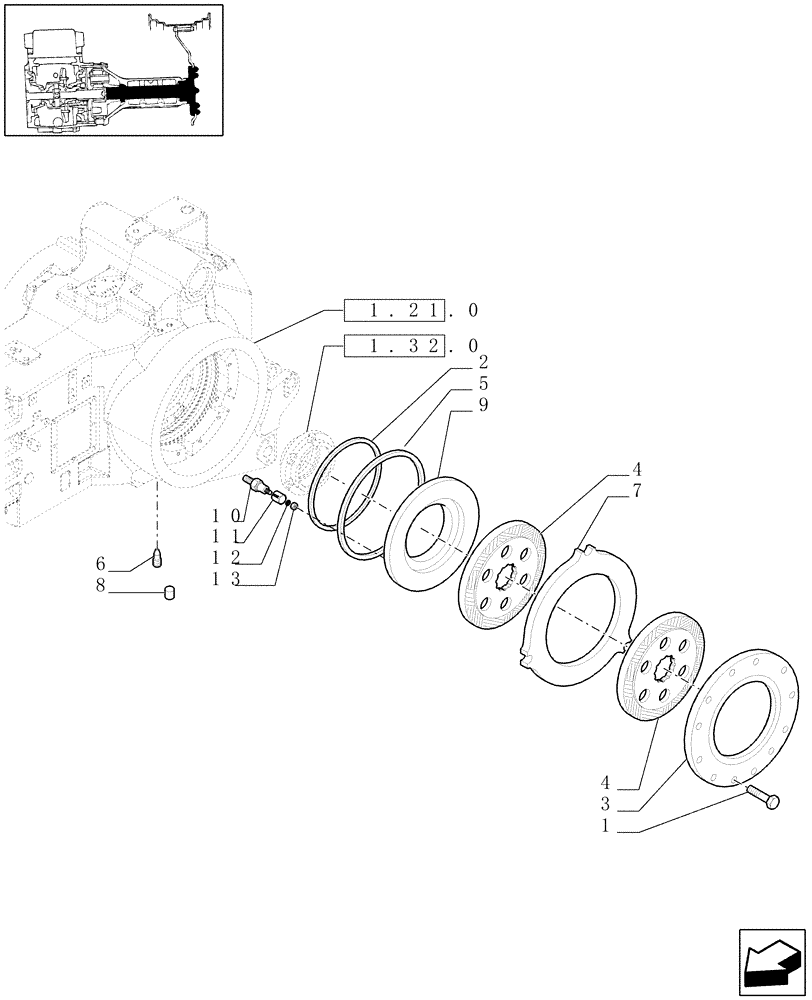

Запчасти Case IH PUMA 165 (1.65.3[01A]) - TRANSMISSION BRAKES - D6332 (05) - REAR AXLE

1

14274930

SCREW,M12 x 1.25 x 50mm

24шт.

2

5195253

SEAL,Square, 3.4mm Thk x 294.1mm ID, 80 Duro

259,6X266,4X3,4

2шт.

3

5185968

BRAKE DISC,245mm ID x 400mm OD x 29mm Thk

2шт.

4

84201664

BRAKE DISC,60mm ID x 327mm OD x 9.5mm Thk

2шт.

5

5165512

SEAL,Square, 3.4mm Thk x 329.8mm ID, 80 Duro

329.6 x 336.4 x 3.4

2шт.

6

5152383

DRAIN PLUG,M12 x 1.25 x 24mm

2шт.

7

5185950

BRAKE DISC,245mm ID x 368mm OD x 22mm Thk

2шт.

8

5171793

BOOT

2шт.

9

5195093

PISTON

For RH Brake

2шт.

10

84172141

PIN,22mm OD x 64mm L

For LH Brake

6шт.

11

84172142

BUSHING,13.3mm ID x 20mm OD x 21.9mm L

6шт.

12

84177978

WASHER,8.2mm ID x 20mm OD x 2mm Thk

6шт.

13

14048221

NUT,M8 x 1.25, Cl 10

6шт.
