Запчасти Case IH PUMA 165 (1.48.1/03[01]) - (VAR.431-431/1-437-437/1) BAR AXLE 98" AND 112" FINAL DRIVE, GEARS AND SHAFTS (05) - REAR AXLE

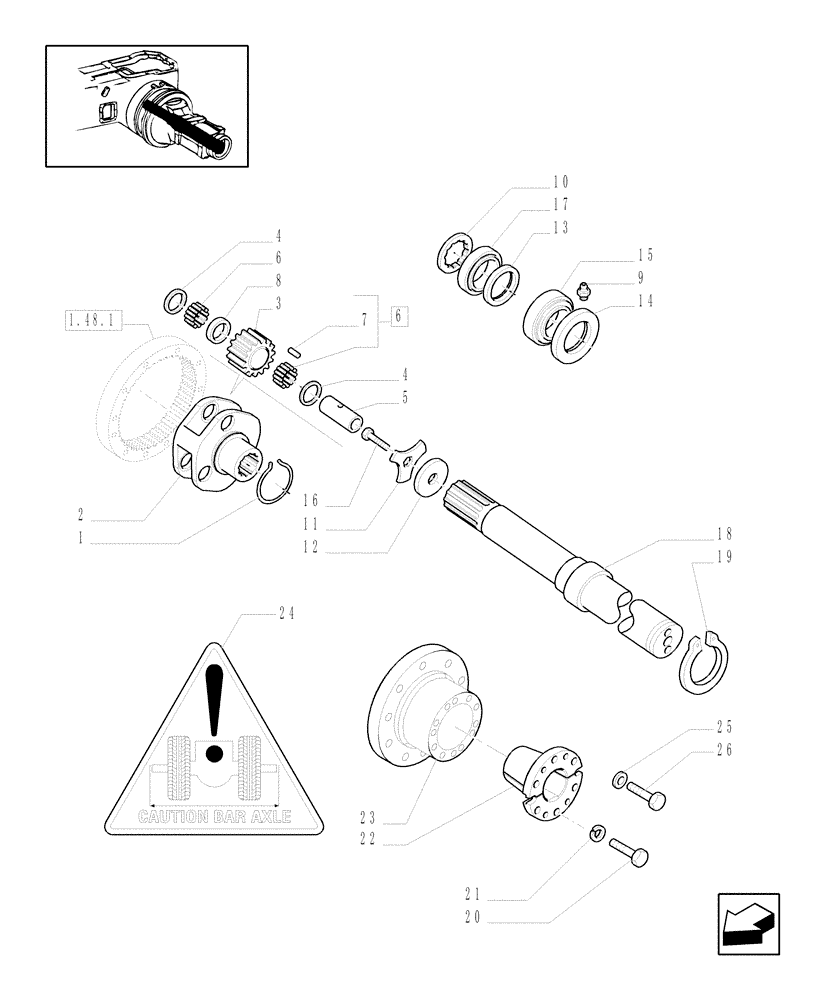

Схема запчастей Case IH PUMA 165 - (1.48.1/03[01]) - (VAR.431-431/1-437-437/1) BAR AXLE 98" AND 112" FINAL DRIVE, GEARS AND SHAFTS (05) - REAR AXLE
13
4
21
9
24
10
6
16
20
18
12
15
8
1.48.1
11
17
7
4
1
19
5
3
22
14
25
6
26
23
2

Артикул

Название

Примечание

Количество

1

5136132

CIRCLIP,4mm Thk

2шт.

2

5165494

SUPPORT

2шт.

3

87396411

IDLER PINION

Z=27, Serial Range: -Z7BH02153

6шт.

3

87558449

IDLER PINION

Z=27, Start Serial: Z7BH02154

6шт.

4

5136128

THRUST WASHER,62.5mm ID x 108mm OD x 1mm Thk

12шт.

5

5136130

PIN,62.4mm OD x 134mm L

6шт.

6

5136131

ROLLER BEARING,62.4mm ID x 76.4mm OD x 32mm W

6шт.

7

5116733

NEEDLE ROLLER,62.4mm ID x 76.4mm OD x 0mm W

1шт.

8

5136133

SPACER,64.5mm ID x 76.3mm OD x 5mm L

6шт.

9

13407211

LUBE NIPPLE,M10 x 1

2шт.

10

5121644

THRUST WASHER,78mm ID x 112mm OD x 5mm Thk

2шт.

11

5124397

LOCKING PLATE

2шт.

12

5124797

SPECIAL WASHER

2шт.

13

5165505

SEAL,88mm ID x 110mm OD x 12mm Thk

2шт.

14

5196486

SEAL,114mm ID x 146mm OD x 16mm Thk

2шт.

15

5188472

BALL BEARING,95mm ID x 145mm OD x 39mm W

2шт.

16

15992531

BOLT,Hex, M22 x 1.5 x 55mm, Cl 10.9, Full Thd

2шт.

17

24903500

TAPERED BEARING,85mm ID x 130mm OD x 29mm W

2шт.

18

5198568

SHAFT

112"

2шт.

W/Equip. 431 - 431/1

1шт.

18

5198565

SHAFT

98"

2шт.

W/Equip. 437 - 437/1

1шт.

19

11082174

CIRCLIP,105mm OD, DAC

D= 105

2шт.

20

11125324

BOLT,Hex, M20 x 80, 8.8

12шт.

W/Equip. 431/1 - 437/1 For Cast Wheels

1шт.

20

15204324

SCREW,Hex, M22 x 2.5 x 80mm, Cl 8.8

12шт.

W/Equip. 431 - 437 For Steel Wheels

1шт.

21

87306816

CONE WASHER,20.00mm ID x 36.00mm OD x 4.50mm

12шт.

W/Equip. 431/1 - 437/1 For Cast Wheels

1шт.

21

11191974

BELLEVILLE WASHER,M22 Bolt Size x 42mm OD x 5mm Thk

12шт.

W/Equip. 431 - 437 For Steel Wheels

1шт.

22

5198567

WEDGE

2шт.

W/Equip. 431/1 - 437/1 For Cast Wheels

1шт.

22

87567092

WEDGE

, Serial Range: -C5578

2шт.

W/Equip. 431 - 437 For Steel Wheels

1шт.

22

87623561

WEDGE

, Serial Range: D5578-Z7BH01647

2шт.

W/Equip. 431 - 437 For Steel Wheels

1шт.

22

87645102

WEDGE,Lock, Silver

, Start Serial: Z7BH01648

2шт.

W/Equip. 431 - 437 For Steel Wheels

1шт.

23

47126431

HUB

2шт.

24

82032066

DECAL

1шт.

25

47126236

WASHER,23mm ID x 44mm OD x 6mm Thk

20шт.

26

15225924

BOLT,Hex, M22 x 2.5 x 60mm, Cl 8.8

20шт.

Выбрано товаров: 43
