(1.42.0[03]) - POWER STEERING DELIVERY AND RETURNS PIPES

Запчасти Case IH PUMA 165 (1.42.0[03]) - POWER STEERING DELIVERY AND RETURNS PIPES (04) - FRONT AXLE & STEERING

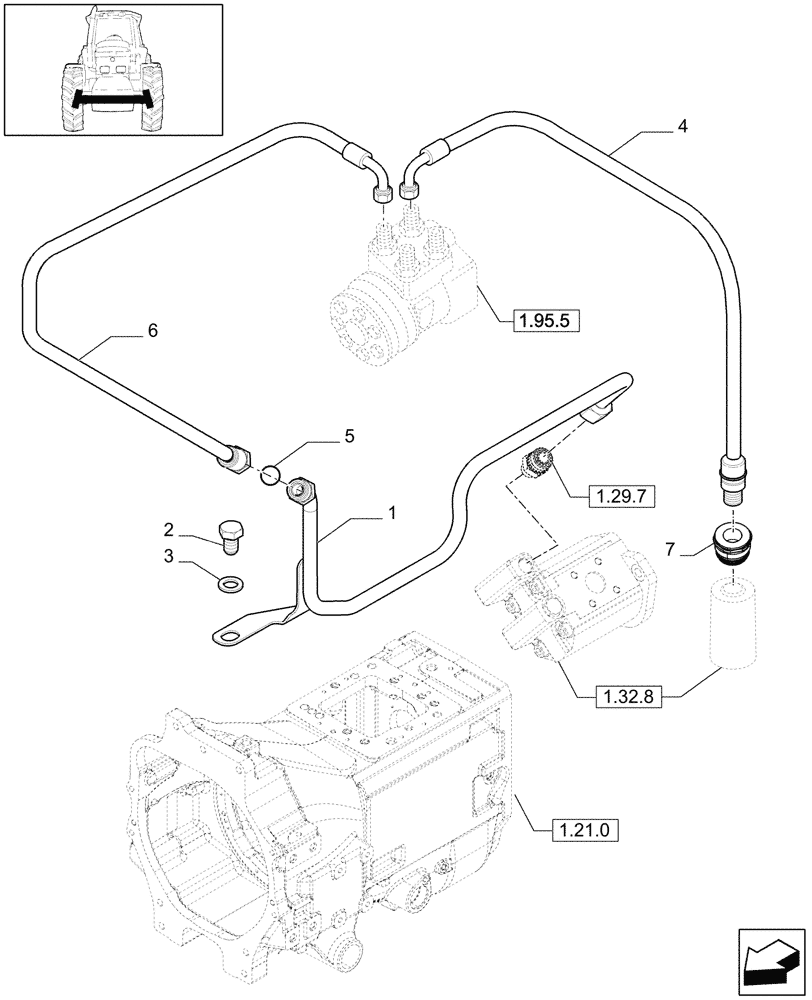

Схема запчастей Case IH PUMA 165 - (1.42.0[03]) - POWER STEERING DELIVERY AND RETURNS PIPES (04) - FRONT AXLE & STEERING
1.32.8
4
3
2
6
5
7
1.29.7
1
1.21.0
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87316315

HYD TUBE

1шт.

2

15219521

BOLT,Hex, M16 x 25mm, Cl 8.8, Full Thd

1шт.

3

10520205

WASHER,Flat, 16.40mm ID x 28.00mm OD x 3.00mm, CST, ZND

1шт.

4

87367555

HOSE ASSY.,12.7mm ID x 570mm L, SAE 100R2

1шт.

5

5185512

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

6

87367548

HOSE ASSY.,540.00mm

1шт.

7

87519925

HYD CONNECTOR

1шт.
