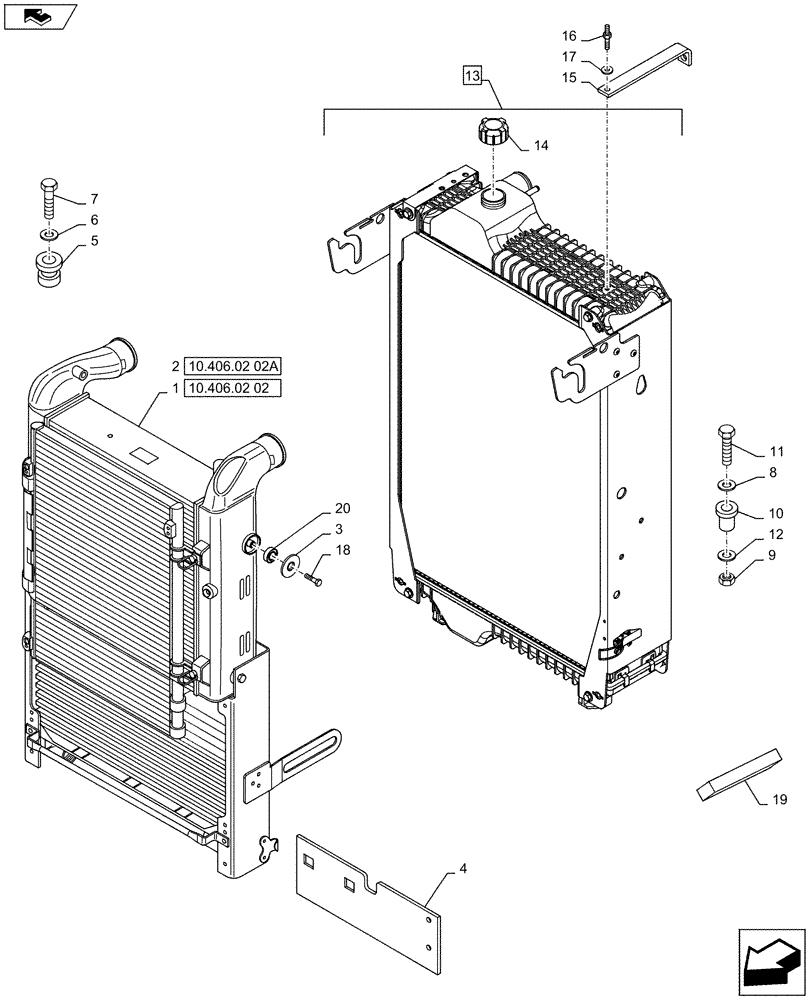

Запчасти Case IH PUMA 160 (10.406.02[01]) - RADIATOR, COOLING SYSTEM RELATED PARTS (10) - ENGINE

1

84249165

COOLER ASSY.

ASSY, Serial Range: -C7381

1шт.

2

47520343

INTERCOOLER

ASSY, Start Serial: D7381

1шт.

3

87385196

WASHER,8.5mm ID X 25mm OD X 2mm

2шт.

4

84226373

SEAL

2шт.

5

82023389

ISOLATOR,67mm OD x 35.5mm L

2шт.

6

5102702

WASHER,10.5mm ID x 45mm OD x 3mm Thk

2шт.

7

11343821

BOLT,Hex, M10 x 1.25 x 50, 8.8

2шт.

8

85700654

WASHER,10.5mm ID x 20mm OD x 2.5mm Thk

1шт.

9

12577211

LOCK NUT,M10 x 1.5mm Pitch, 12.30mm High, Cl 8, ZND

1шт.

10

82009429

ISOLATOR

1шт.

11

11098621

BOLT,Hex, M10 x 45mm, Cl 8.8, Full Thd

1шт.

12

83904166

WASHER,10.5mm ID x 30mm OD x 4mm Thk

1шт.

13

84249164

RADIATOR

6 Row, Incl 14

1шт.

14

87306788

RADIATOR CAP

1шт.

15

87719159

SUPPORT

1шт.

16

87316808

STUD,M8 x 1.25mm

1шт.

17

10519604

WASHER,8.15mm ID x 17mm OD x 2mm Thk

1шт.

18

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

2шт.

19

82030145

FOAM INSULATION

2шт.

20

87385194

ROLLER BEARING,8mm ID x 16mm OD x 5mm W

2шт.
