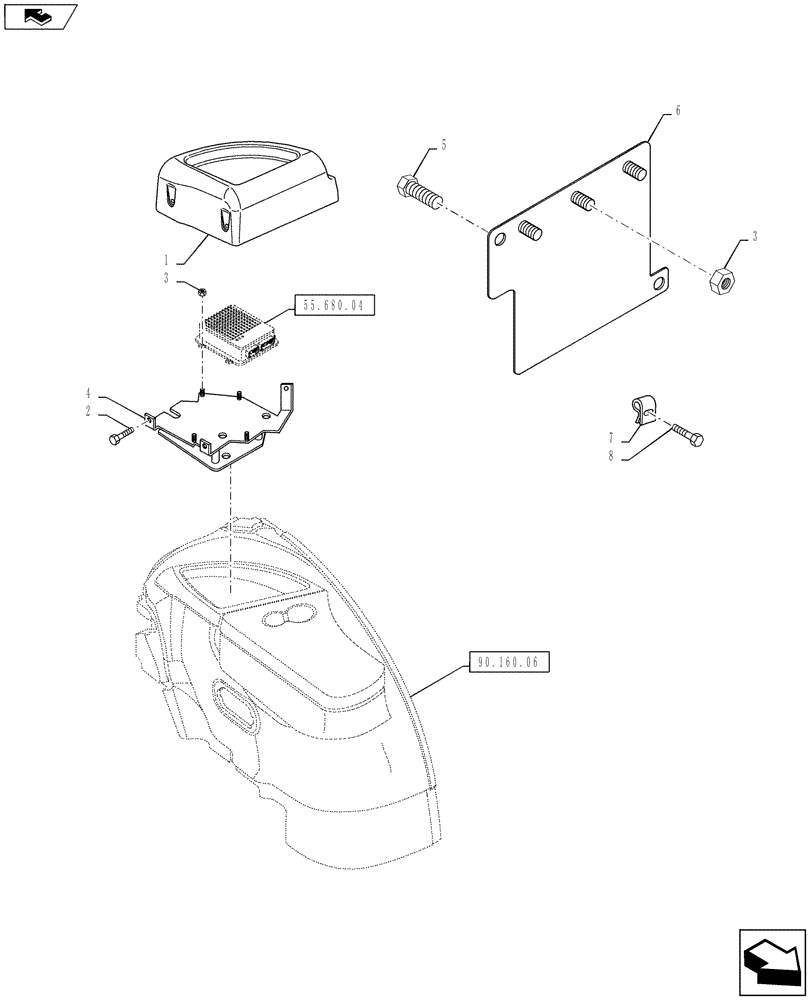

Запчасти Case IH PUMA 160 (90.160.07) - VAR - 330077, 331077 - CONTROL UNIT - COVER - AUTOGUIDANCE SYSTEM READY (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

84238871

CAB STORAGE BOX

AutoGuidance Tray

1шт.

2

87679455

SUPPORT

AutoGuidance Controller

1шт.

3

86500688

NUT,Hex, M6 x 1.0, Cl 10.9

7шт.

4

81853129

SCREW,Pozidriv Pan Hd, M6 x 16mm, Cl 4.8, Full Thd

3шт.

5

86508568

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8

2шт.

6

87744795

SUPPORT

AutoGuidance Relay

1шт.

7

14371771

SPRING NUT,M6, U, 24.3mm long

2шт.

8

10902124

SCREW,Hex, M6 x 14mm, Cl 8.8

2шт.
