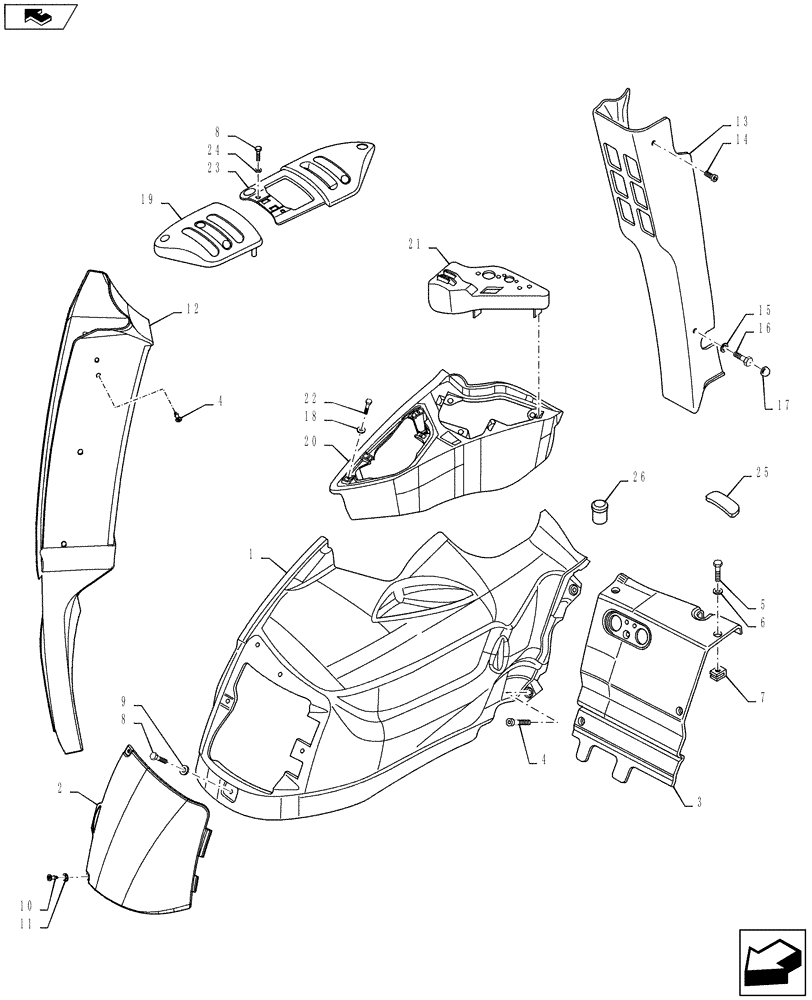

Запчасти Case IH PUMA 160 (90.160.03) - CONTROL COVERS - RIGHT SIDE (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

84242733

PANEL

RH

1шт.

2

87734672

COVER

Fuse and Relay Carrier

1шт.

3

87479668

PANEL

Electronic Module, Serial Range: -C9027

1шт.

3

84213367

PANEL

Electronic Module, Start Serial: D9027

1шт.

4

82023482

ANCHOR,Button Hd, 8.25mm x 35.00mm

8шт.

5

15646901

SCREW,Pan Hd, M5.5 x 1.8 x 16mm

4шт.

6

9824259

WASHER,6.4mm ID x 12mm OD x 1.6mm Thk

4шт.

7

87567755

SPRING NUT,M5

4шт.

8

15647001

SELF-TAP SCREW,Pozidriv Pan Hd, M12 x 19mm

10шт.

9

10523401

WASHER,6.15mm ID x 18mm OD x 2mm Thk

4шт.

10

87734455

FASTENER

, Serial Range: -C9027

2шт.

10

84193550

FASTENER,Black

, Start Serial: D9027

2шт.

11

87734456

RETAINER,13mm OD x 0.8mm Thk

2шт.

12

87388211

PADDING

RH A Pillar, Serial Range: -C9027

1шт.

12

84364974

PADDING

RH A Pillar, Start Serial: D9027

1шт.

13

84285944

PADDING

RH C Pillar

1шт.

13

84285943

PADDING

RH C Pillar, Rear ISOBUS Socket, VAR 337761, 743720

1шт.

14

82023460

STUD,M7.85 x 19.50mm, Plastic

3шт.

15

87734153

SPACER,10.6mm ID x 36mm OD x 7.5mm L

2шт.

16

11106021

2шт.

17

82012814

CAP,M10

2шт.

18

14496621

WASHER,10.5mm ID x 21mm OD x 2mm Thk

1шт.

19

84190826

BEZEL

1 and 2 Remotes, Mech

1шт.

19

84190828

BEZEL

4 Remote Valve, VAR 333845, 336845, 743685

1шт.

20

84212620

PADDING

Mech Remotes, RH

1шт.

21

84315935

COVER

PTO Pod, Mech

1шт.

22

10558728

SCREW,Flat Hd W/Collar, M6 x 22mm, Cl 8.8

5шт.

23

84190835

BEZEL

1шт.

23

84190831

BEZEL

3 Remote, Mech, VAR 333844, 335844, 743741

1шт.

24

14496401

WASHER,M6.4 x 12.00mm x 1.60mm

6шт.

25

47056777

BLANK-OFF PLUG,31mm x 87mm, Black

1шт.

26

81862738

PLUG,M38 x 28 x 5mm

Body Floor

1шт.
