(90.151.04) - VAR - 330019 - ELECTRICAL ARMREST ADJUSTMENT - COVERS AND SUPPORT

Запчасти Case IH PUMA 160 (90.151.04) - VAR - 330019 - ELECTRICAL ARMREST ADJUSTMENT - COVERS AND SUPPORT (90) - PLATFORM, CAB, BODYWORK AND DECALS

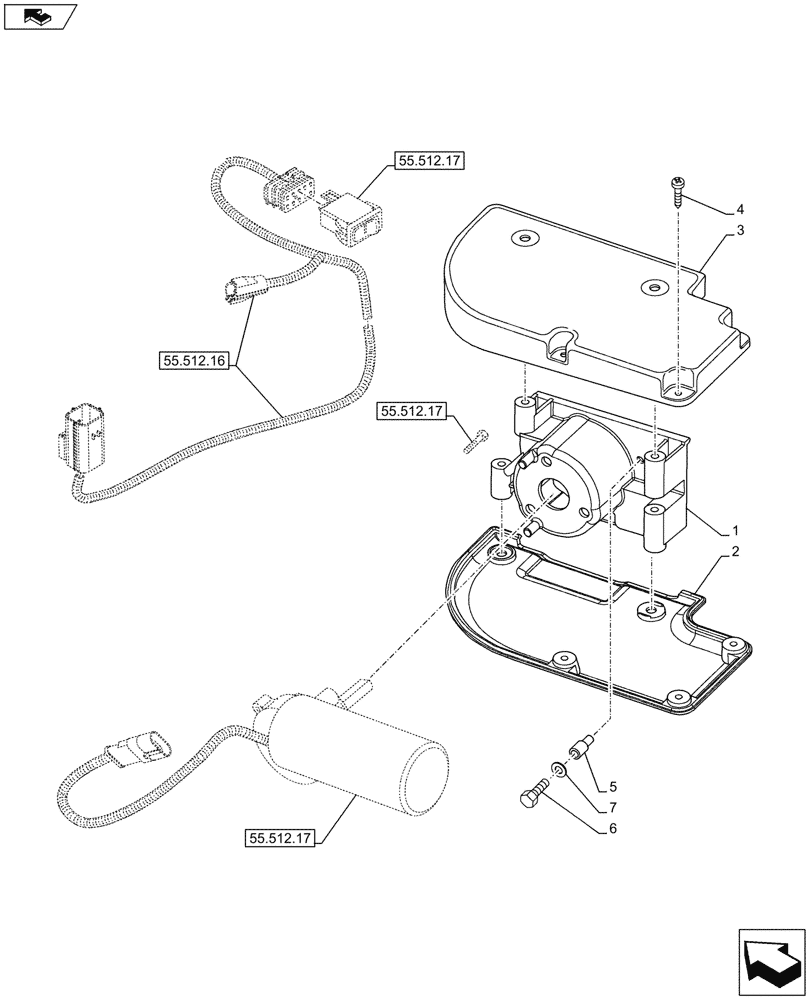

Схема запчастей Case IH PUMA 160 - (90.151.04) - VAR - 330019 - ELECTRICAL ARMREST ADJUSTMENT - COVERS AND SUPPORT (90) - PLATFORM, CAB, BODYWORK AND DECALS
55.512.17
3
home
6
5
4
2
1
7
55.512.16
55.512.17
55.512.17
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84201758

HOLDER

Motor

1шт.

2

84201783

SHELL

Outside

1шт.

3

84201762

SHELL

Inside

1шт.

4

15903977

SELF-TAP SCREW,Pan Head, M4.8 x 1.6 x 19mm

7шт.

5

15624411

RIVET,Flat, M6 OD x 16mm L

2шт.

6

86531615

HEX SOC SCREW,M6 x 20mm, Cl 8.8

2шт.

7

14496401

WASHER,M6.4 x 12.00mm x 1.60mm

2шт.
