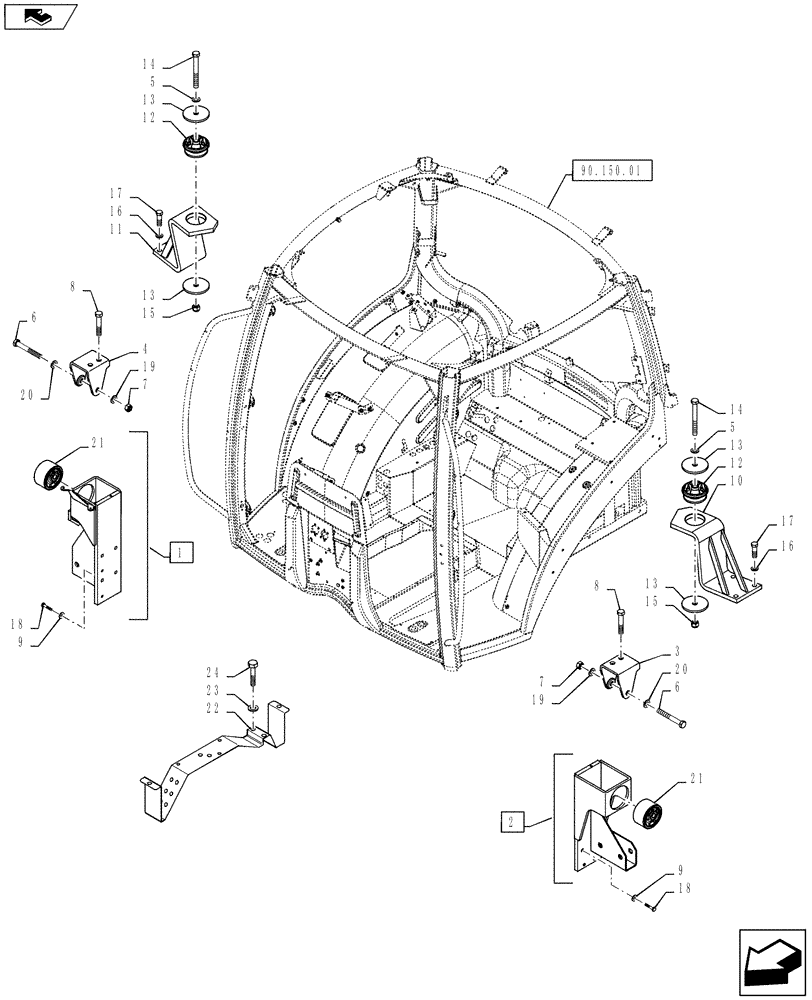

Запчасти Case IH PUMA 160 (90.150.02[01]) - CAB SUPPORTS WITHOUT SUSPENSIONS (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

84353067

SUPPORT

RH, Incl 21

1шт.

2

84353071

SUPPORT

LH, Incl 21

1шт.

3

84177681

SUPPORT

LH

1шт.

4

84177691

SUPPORT

RH

1шт.

5

86511327

WASHER,21mm ID x 37mm OD x 3mm Thk

2шт.

6

384197

BOLT,Hex, M20 x 2.5 x 150mm, Cl 8.8

2шт.

7

9706694

NUT,Hex, M20, Cl 8

2шт.

8

9780073

BOLT,Hex, M20 x 2.5 x 110mm, Cl 8.8

4шт.

9

15977921

SCREW,Hex, M14 x 1.5 x 90mm, Cl 8.8

4шт.

10

82038210

SUPPORT

LH, Puma 130, 145

1шт.

10

82035571

SUPPORT

LH, Puma 160

1шт.

11

82038213

SUPPORT

RH, Puma 130, 145

1шт.

11

82035573

SUPPORT

RH, Puma 160

1шт.

12

83983548

ISOLATOR,120mm OD x 64mm L

2шт.

13

87302042

SPACER,21mm ID x 120mm OD x 8.7mm L

4шт.

14

16043424

SCREW,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

2шт.

15

12575111

LOCK NUT,M20 x 1.5, Cl 8

2шт.

16

10520324

WASHER,18.4mm ID x 32mm OD x 4mm Thk

8шт.

17

11244621

BOLT,Hex, M18 x 1.5 x 60, 10.9

, Serial Range: -C7179

8шт.

17

11122221

BOLT,Hex, M18 x 65, 8.8, Full Thd

, Start Serial: D7179

8шт.

18

16214621

SCREW,Hex, M14 x 1.5 x 50mm, Cl 8.8

4шт.

19

86511327

WASHER,21mm ID x 37mm OD x 3mm Thk

2шт.

20

11191974

BELLEVILLE WASHER,M22 Bolt Size x 42mm OD x 5mm Thk

2шт.

21

87396965

INSULATOR,100mm OD x 85.3mm L

2шт.

22

84337830

SUPPORT

1шт.

23

12646704

WASHER,8.15mm ID x 20mm OD x 2mm Thk

2шт.

24

16043424

SCREW,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

2шт.
