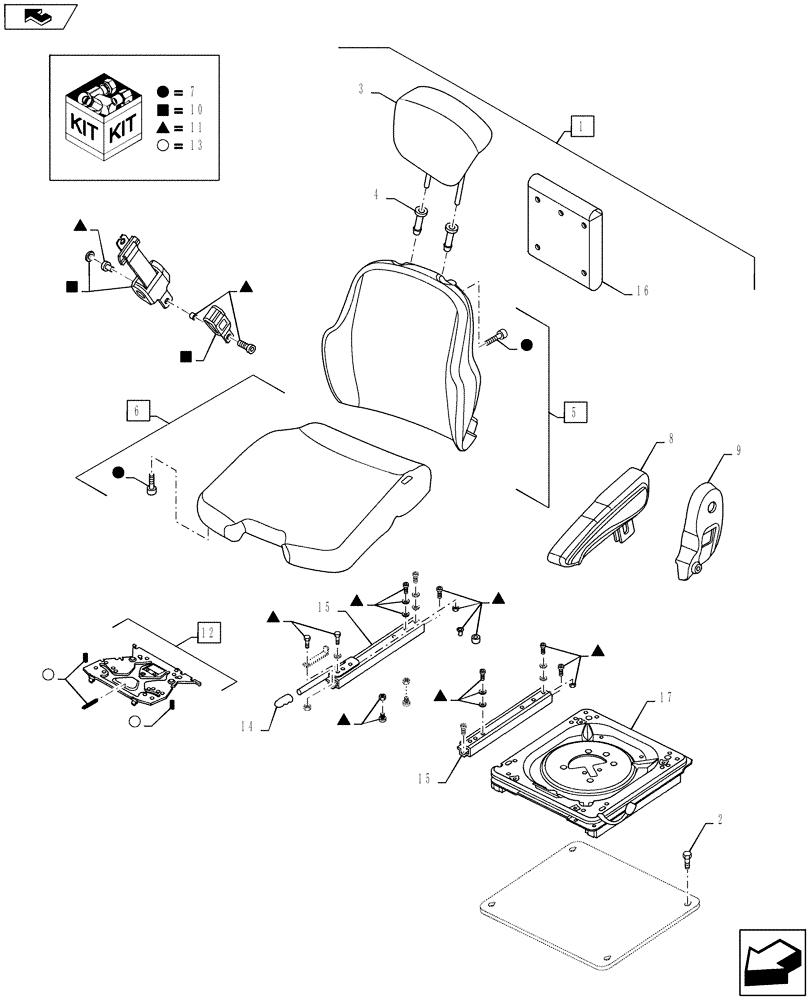

Запчасти Case IH PUMA 160 (90.124.01) - VAR - 390709, 333709, 743715, 330709, 332709 - DELUXE SUSPENSION SEAT - COMPONENTS (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

87486984

SEAT

Non-Heated, EHR, STD Build, VAR 390709, Incl 2 - 17 and Parts on Figures 90.124.02 - 90.124.05

1шт.

1

84215889

DRIVER SEAT

Non-Heated, Mech Remotes, VAR 333709, Incl 2 - 17 and Parts on Figures 90.124.02 - 90.124.05

1шт.

1

87486990

SEAT

Heated, EHR, VAR 330709, 743715, Incl 2 - 17 and Parts on Figures 90.124.02 - 90.124.06

1шт.

1

84171102

SEAT

Heated, Mech Remotes, VAR 332709, Incl 2 - 17 and Parts on Figures 90.124.02 - 90.124.06

1шт.

2

84187826

FLANGE BOLT,Torx Rnd Hd, M8 x 20mm, Cl 8.8, Full Thd

4шт.

3

84191100

SEAT HEADREST

1шт.

4

84191112

GUIDE

1шт.

5

84172430

SEAT BACK

Incl 7, Non-Heated, STD Build VAR 390709 and 333709

1шт.

5

84191204

BACKREST

Incl 7, Heated, VAR 330709, 743715, 332709

1шт.

6

84191096

SEAT CUSHION,Fabric Confetti Wheat

Incl 7, Non-Heated, STD Build VAR 390709 and VAR 333709

1шт.

6

84191205

SEAT CUSHION

Incl 7, Heated, VAR 330709, 743715 and 332709

1шт.

7

84191200

SET OF PARTS

1шт.

8

82034988

ARMREST

1шт.

9

87331931

COVER

1шт.

10

84191197

SEAT BELT

1шт.

11

84191194

MOUNTING PARTS

for Ref 10, 14, and 17

1шт.

12

84191141

PLATE

Incl 13

1шт.

13

84191201

SET OF PARTS

1шт.

14

9971715

HANDLE

1шт.

15

84191191

REPAIR KIT

1шт.

16

47124555

BRIEF CASE

1шт.

17

84191192

SEAT SUPPORT

Swivel, EHR, STD Build VAR 390709, 330709, 743715

1шт.

17

82039448

PLATE

Reduced Swivel, Mech Remotes, VAR 333709, 332709

1шт.
