(90.102.01[02]) - GUARD - ENGINE

Запчасти Case IH PUMA 160 (90.102.01[02]) - GUARD - ENGINE (90) - PLATFORM, CAB, BODYWORK AND DECALS

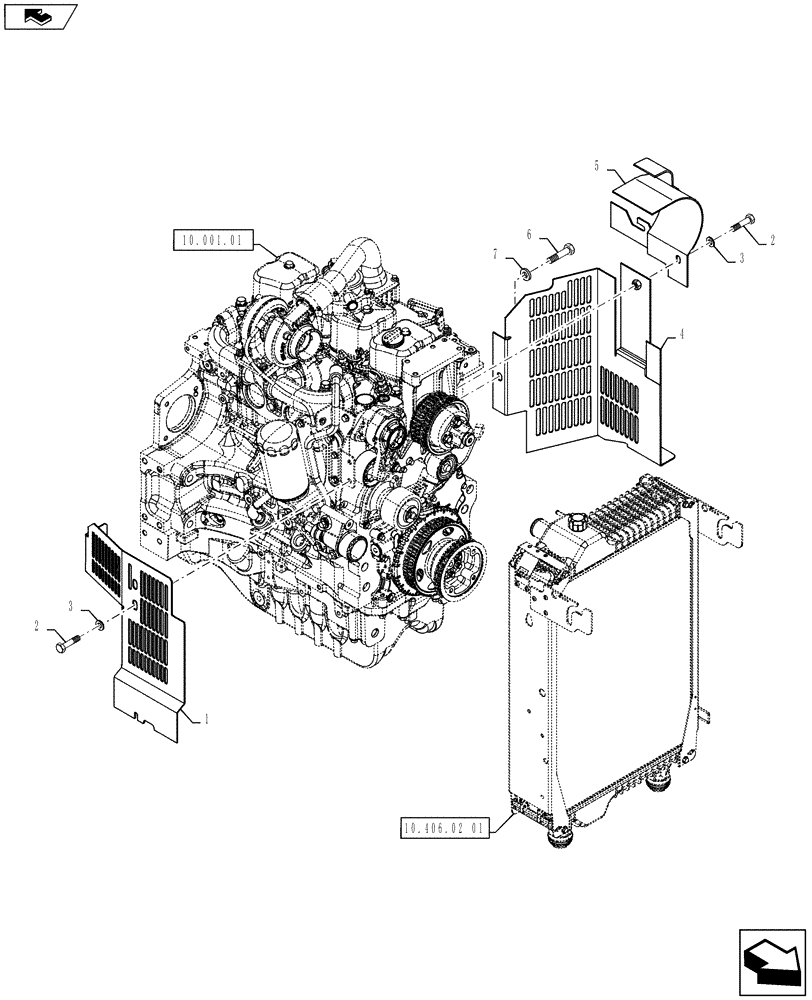

Схема запчастей Case IH PUMA 160 - (90.102.01[02]) - GUARD - ENGINE (90) - PLATFORM, CAB, BODYWORK AND DECALS
10.001.01
6
3
4
2
10.406.02 01
2
home
1
5
7
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84179571

GUARD

Alternator

1шт.

2

11106021

BOLT,Hex, M10 x 1.5 x 20 mm, Cl 8.8, Full Thd

3шт.

3

14496701

WASHER,13.00mm ID x 24.00mm OD x 2.50mm, CST, ZND

3шт.

4

84369773

GUARD

Less Airbrakes

1шт.

5

84273493

GUARD

A/C Compressor

1шт.

6

84183601

SCREW,M6 x 45mm, Cl 5.8

1шт.

7

14496401

WASHER,M6.4 x 12.00mm x 1.60mm

1шт.

Выбрано товаров: 7
