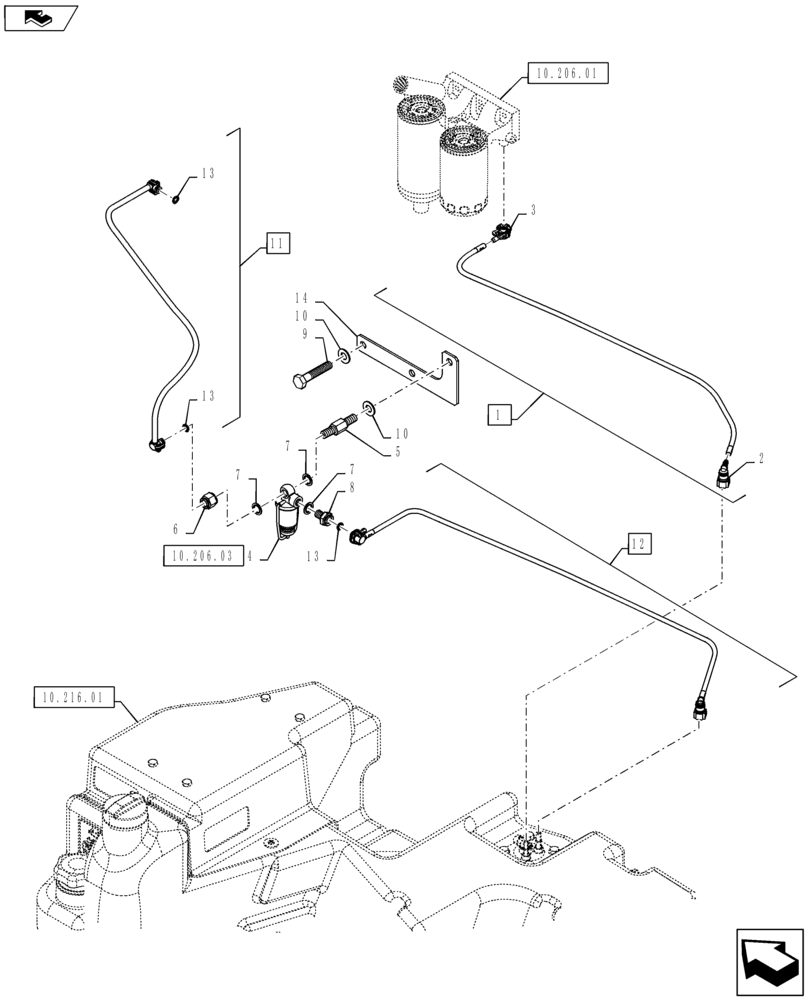

Запчасти Case IH PUMA 160 (10.216.05) - FUEL LINES (10) - ENGINE

1

84356045

FUEL TUBE,11mm OD X 750mm

Return, Incl 2, 3

1шт.

2

82028482

FITTING

, Serial Range: -C7115

1шт.

2

NSS

NOT SOLD SEPARAT

, Start Serial: D7115

1шт.

3

82028480

COUPLING, QUICK, FEM

, Serial Range: -C7115

1шт.

3

84367132

FITTING,5/16'

, Start Serial: D7115

1шт.

4

84328562

FILTER ASSY,40mm OD x 109mm L, M14 x 1.5, 350 Microns

1шт.

5

87585662

HYD CONNECTOR,M12 x 1.75 x M14 x 1.5

1шт.

6

87585673

HYD CONNECTOR

1шт.

7

87590622

SEALING WASHER,14.7mm ID x 22mm OD x 1.5mm Thk

3шт.

8

4893833

HYD CONNECTOR

1шт.

9

11112121

SCREW,Hex, M12 x 20mm, Cl 8.8, Full Thd

2шт.

10

86511324

WASHER,13mm ID x 24mm OD x 2.5mm Thk

3шт.

11

84337769

FUEL TUBE

Ecu Cooler to Fuel Pre Filter, Incl 13

1шт.

12

84283031

FUEL TUBE

Feed, Incl 13

1шт.

13

4894095

O-RING,2.5mm Thk x 8mm ID, 60 Duro

3шт.

14

87591419

HOLDER

1шт.
