Запчасти Case IH PUMA 160 (10.216.04) - VAR - 743672, 330142, 335142, 743671, 337142, STD & 338142 - AUXILIARY TANK, SUPPORTS AND GUARDS (10) - ENGINE

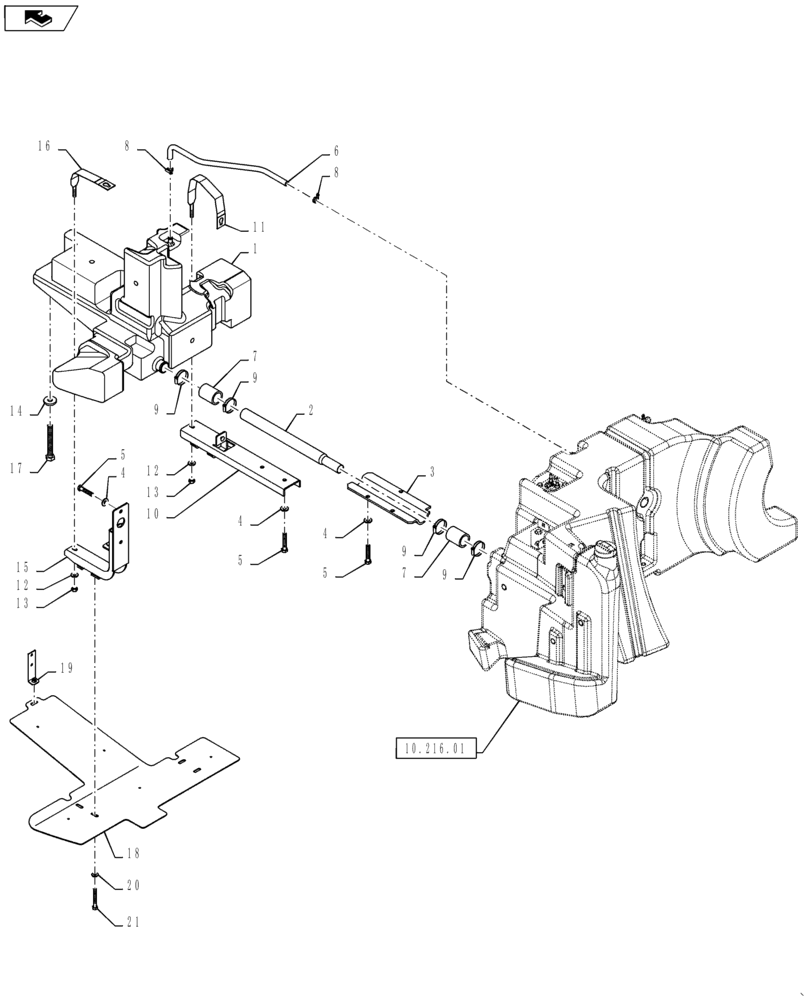

Схема запчастей Case IH PUMA 160 - (10.216.04) - VAR - 743672, 330142, 335142, 743671, 337142, STD & 338142 - AUXILIARY TANK, SUPPORTS AND GUARDS (10) - ENGINE
5
8
7
4
7
6
12
2
13
16
5
12
10.216.01
11
9
4
9
9
10
18
21
13
20
4
17
1
15
3
5
14
9
home
8
19

Артикул

Название

Примечание

Количество

1

84322318

FUEL TANK

Auxiliary

1шт.

2

84328160

TUBE

1шт.

3

84415989

SUPPORT

1шт.

4

14496701

WASHER,13.00mm ID x 24.00mm OD x 2.50mm, CST, ZND

7шт.

5

15540421

SCREW,Hex, M12 x 1.25 x 30mm, Cl 8.8, Full Thd

7шт.

6

84245047

HOSE,15.9mm ID

Fuel Breather Line

1шт.

7

87387657

TUBE

Tank to Crossover Tube

1шт.

8

82039343

HOSE CLAMP,16mm - 27mm

2шт.

9

82036462

CLAMP,50mm - 70mm

4шт.

10

84331167

SUPPORT

1шт.

11

84319731

STRAP,389mm L

1шт.

12

14496601

WASHER,10.5mm ID x 21mm OD x 2mm Thk

2шт.

13

100037

LOCK NUT,M10 x 1.5, Cl 8

2шт.

14

9511052

WASHER,13.5mm ID x 44mm OD x 4mm Thk

1шт.

15

84331082

HOLDER

1шт.

16

84321450

STRAP

1шт.

17

120116

SCREW,Hex, M10 x 1.5 x 80mm, Cl 8.8, Full Thd

1шт.

18

84354385

SHIELD

Auxiliary Tank, VAR 330142 Only

1шт.

19

84241329

SUPPORT

Auxiliary Tank Guard, VAR 330142 Only

1шт.

20

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

VAR 330142 Only

5шт.

21

43138

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8

VAR 330142 Only

5шт.

Выбрано товаров: 21
