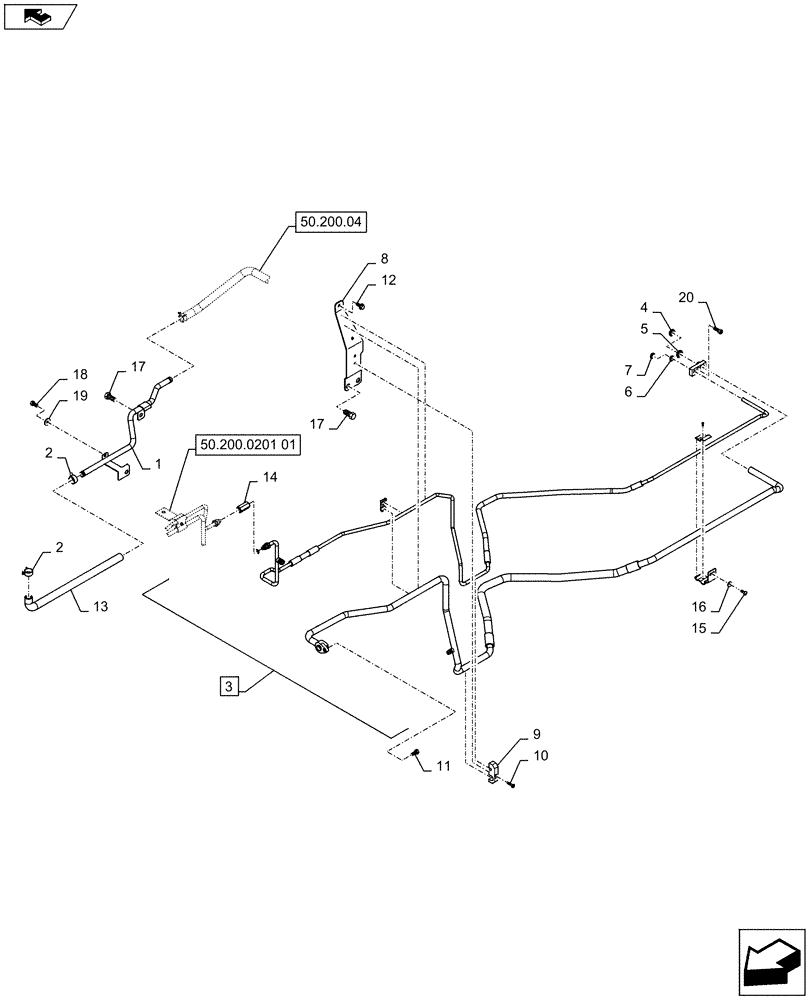

Запчасти Case IH PUMA 160 (50.200.0301[01]) - AIR CONDITIONING - LINES - C7156 (50) - CAB CLIMATE CONTROL

1

84162432

HEATER TUBE

1шт.

2

82019905

HOSE CLAMP,22 - 26mm X 12mm

2шт.

3

84233803

PIPE

Incl 4 - 7

1шт.

4

10319983

O-RING,1.6mm Thk x 16.1mm ID

1шт.

5

82007848

O-RING,2.4mm Thk x 13.4mm ID

1шт.

6

10318883

O-RING,8.1mm ID x 1.6mm Width

1шт.

7

82007847

O-RING,1.8mm Thk x 6.7mm ID

1шт.

8

84392775

BRACKET

1шт.

9

84390314

CLAMP,2 Hoses

1шт.

10

84007540

SCREW,Pozidrive, Pan HD, M6 x 25mm, Cl 4.8

1шт.

11

120228

HEX SOC SCREW,M8 x 20mm, Cl 8.8, Full Thd

1шт.

12

9804258

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

1шт.

13

84168038

HEATER HOSE

1шт.

14

87738978

ADAPTER

1шт.

15

82880748

SCREW,Pozidrive, Pan HD, M6 x 2 x 14mm, Cl 4.8

1шт.

16

10523401

WASHER,6.15mm ID x 18mm OD x 2mm Thk

1шт.

17

82025437

BOLT,Hex, M14 x 2 x 25mm, Cl 8.8

3шт.

18

11112124

SCREW,Hex, M12 x 20mm, Cl 8.8, Full Thd

1шт.

19

14496704

WASHER,13mm ID x 24mm OD x 2.5mm Thk

2шт.

20

14306424

HEX SOC SCREW,M8 x 1.25 x 25mm, Cl 8.8, Full Thd

1шт.
