Запчасти Case IH PUMA 160 (39.129.04) - VAR - 330949, 331949, 332949, 334949, 743697 - AUTOMATIC LINKAGE STABILIZER - PUMA 160 (39) - FRAMES AND BALLASTING

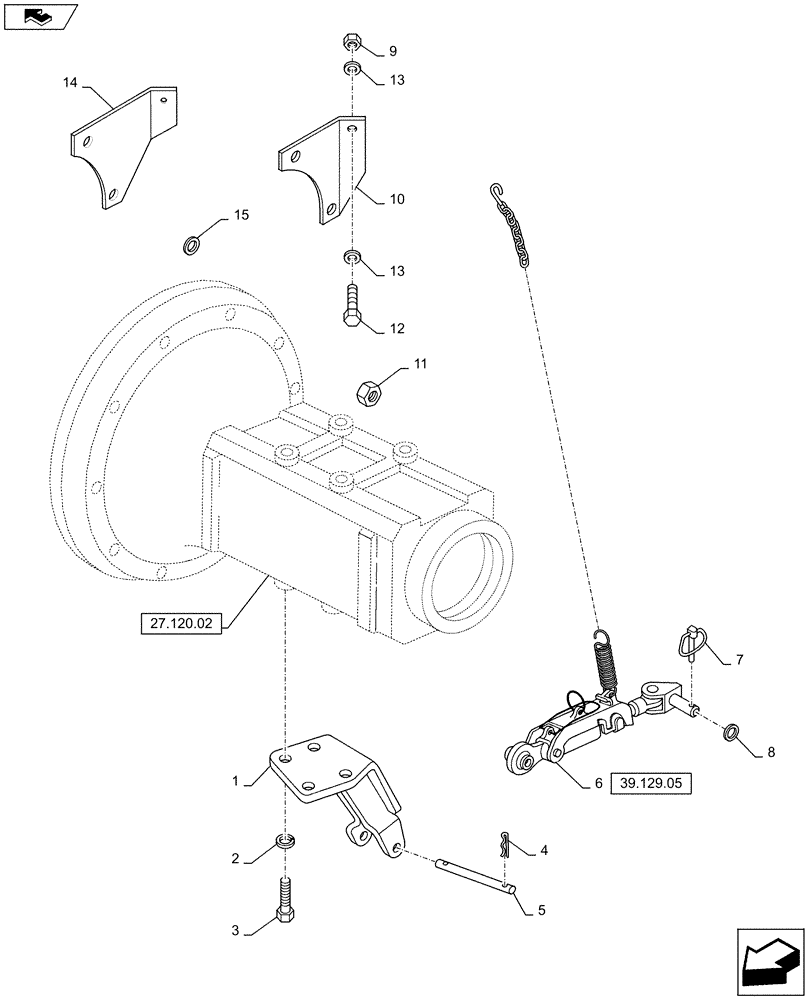

Схема запчастей Case IH PUMA 160 - (39.129.04) - VAR - 330949, 331949, 332949, 334949, 743697 - AUTOMATIC LINKAGE STABILIZER - PUMA 160 (39) - FRAMES AND BALLASTING
6
3
7
home
12
1
13
5
13
4
2
10
9
27.120.02
39.129.05
14
15
1
8
1

Артикул

Название

Примечание

Количество

1

5190471

SUPPORT

LH

1шт.

1

5190497

SUPPORT

RH

1шт.

2

11191674

BELLEVILLE WASHER,M18 Bolt Size x 36mm OD x 4.2mm Thk

8шт.

3

15984321

BOLT,Hex, M18 x 1.5 x 50mm, Cl 8.8

8шт.

4

10798404

COTTER PIN,6.3mm Dia x 40.00mm, DAC

4шт.

5

5125861

PIN,19mm OD x 105mm L

2шт.

6

87391930

STABILIZER

2шт.

7

47125579

LINCH PIN,11.5mm OD

2шт.

8

562106

WASHER,25.50mm ID x 45.00mm OD

2шт.

9

16104111

NUT,Prevailing Torque, M8, 1.25 Pitch, 10.6mm High, Cl 08, ZND

Auto Stabilizer, Less Wheel Chocks, VAR 330949

2шт.

10

87325954

BRACKET

LH, Auto Stabilizer, Less Wheel Chocks, VAR 330949

1шт.

10

87331651

BRACKET

RH, Auto Stabilizer, Less Wheel Chocks, VAR 330949

1шт.

11

81815739

WHEEL NUT,1/2"-20, 0.65" High, ZND

Auto Stabilizer, Less Wheel Chocks, VAR 330949

2шт.

12

15213321

BOLT,Hex, M8 x 1.25 x 35mm, Cl 8.8

Auto Stabilizer, Less Wheel Chocks, VAR 330949

2шт.

13

14496501

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

Auto Stabilizer, Less Wheel Chocks, VAR 330949

4шт.

14

84358786

BRACKET

PLATE MOUNTING CHAIN CLIP, LH

1шт.

Auto Stabilizer (f/with air brakes), VAR.332949

1шт.

14

84358787

BRACKET

PLATE MOUNTING CHAIN CLIP, RH

1шт.

Auto Stabilizer (f/with air brakes), VAR.332949

1шт.

15

14497101

WASHER,M20 x 37 x 3

WASHER

4шт.

Auto Stabilizer (f/with air brakes), VAR.332949

1шт.

Выбрано товаров: 21
