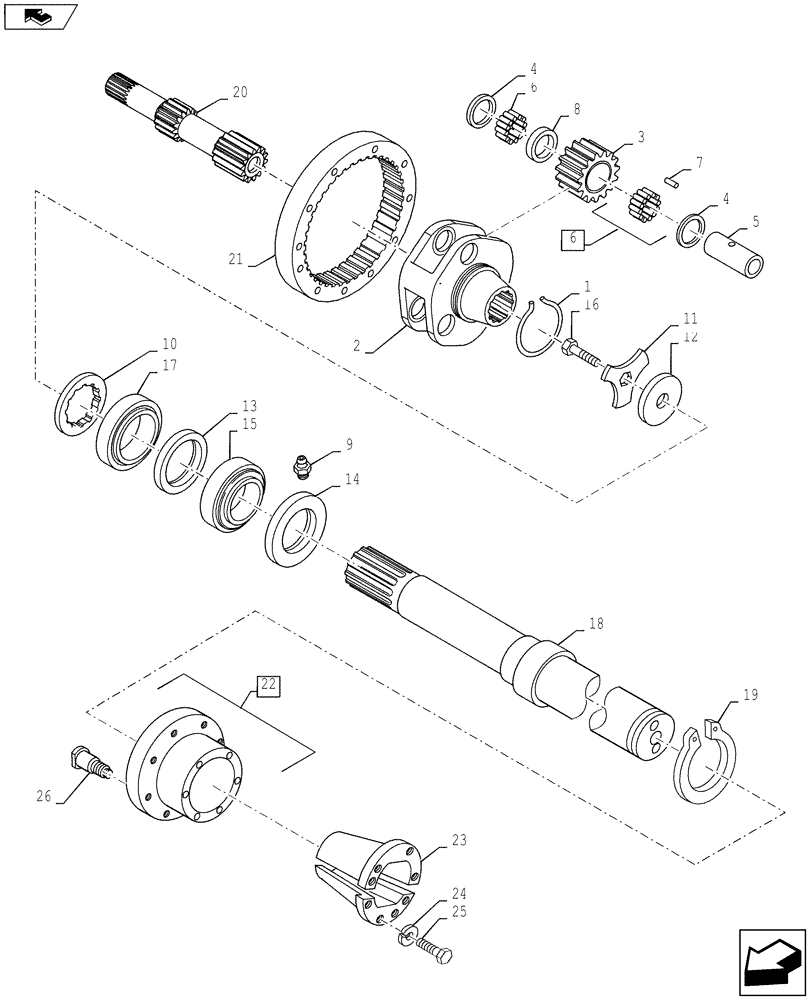

Запчасти Case IH PUMA 160 (27.120.06) - VAR - 330331, 331331, 330332, 331332 - REAR HEAVY DUTY 98" AND 112" BAR AXLES - FINAL DRIVE (27) - REAR AXLE SYSTEM

1

5136132

CIRCLIP,4mm Thk

2шт.

2

87573468

PINION CARRIER

2шт.

3

87573467

PLANETARY GEAR,36T

6шт.

4

5136128

THRUST WASHER,62.5mm ID x 108mm OD x 1mm Thk

12шт.

5

5136130

PIN,62.4mm OD x 134mm L

6шт.

6

5136131

ROLLER BEARING,62.4mm ID x 76.4mm OD x 32mm W

Incl 7

6шт.

7

5116733

NEEDLE ROLLER,62.4mm ID x 76.4mm OD x 0mm W

62шт.

8

87573466

SPACER,64.5mm ID x 76.3mm OD x 9mm L

6шт.

9

13407211

LUBE NIPPLE,M10 x 1

2шт.

10

5121644

THRUST WASHER,78mm ID x 112mm OD x 5mm Thk

2шт.

11

5165502

COVER PLATE

2шт.

12

5165501

DISC,18.5mm ID x 95mm OD x 8.5mm Thk

2шт.

13

5165505

SEAL,88mm ID x 110mm OD x 12mm Thk

2шт.

14

5165506

SEAL,112mm ID x 140mm OD x 16mm Thk

2шт.

15

24903700

ROLLER BEARING,90mm ID x 140mm OD x 32mm W

2шт.

16

15984334

BOLT,Hex, M18 x 1.5 x 50mm, Cl 10.9, Full Thd

2шт.

17

24903500

TAPERED BEARING,85mm ID x 130mm OD x 29mm W

2шт.

18

87516450

WHEEL SHAFT

98", VAR 330331, 331331

2шт.

18

87516454

WHEEL SHAFT

112", VAR 330332, 331332

2шт.

19

11071374

CIRCLIP,3mm Thk

2шт.

20

87592306

SHAFT,408.50mm

RH

1шт.

20

87601793

SHAFT,425.50mm

LH

1шт.

21

5165495

RING GEAR,88T, 60mm L

2шт.

22

87688497

HUB

VAR 330331, 330332, Incl 26, Serial Range: -C7400

2шт.

22

47728581

HUB

VAR 330331, 330332, Start Serial: D7400

2шт.

23

5198605

BUSHING

, Serial Range: -C7400

2шт.

23

47699301

HUB

, Start Serial: D7400

2шт.

24

87306816

CONE WASHER,20.00mm ID x 36.00mm OD x 4.50mm

12шт.

25

11125124

BOLT,Hex, M20 x 70, 8.8

VAR 330331, 330332, Serial Range: -C7400

12шт.

25

11125324

BOLT,Hex, M20 x 80, 8.8

VAR 331331, 331332, Serial Range: -C7400

12шт.

25

11125424

SCREW,Hex, M20 x 85mm, Cl 8.8

, Start Serial: D7400

12шт.

26

87651027

STUD,M18 x 1.5 x 85mm, Cl 10.9

VAR 330331, 330332

16шт.
