Запчасти Case IH PUMA 160 (27.120.02) - SIDE REDUCTION UNIT HOUSING AND COVERS (27) - REAR AXLE SYSTEM

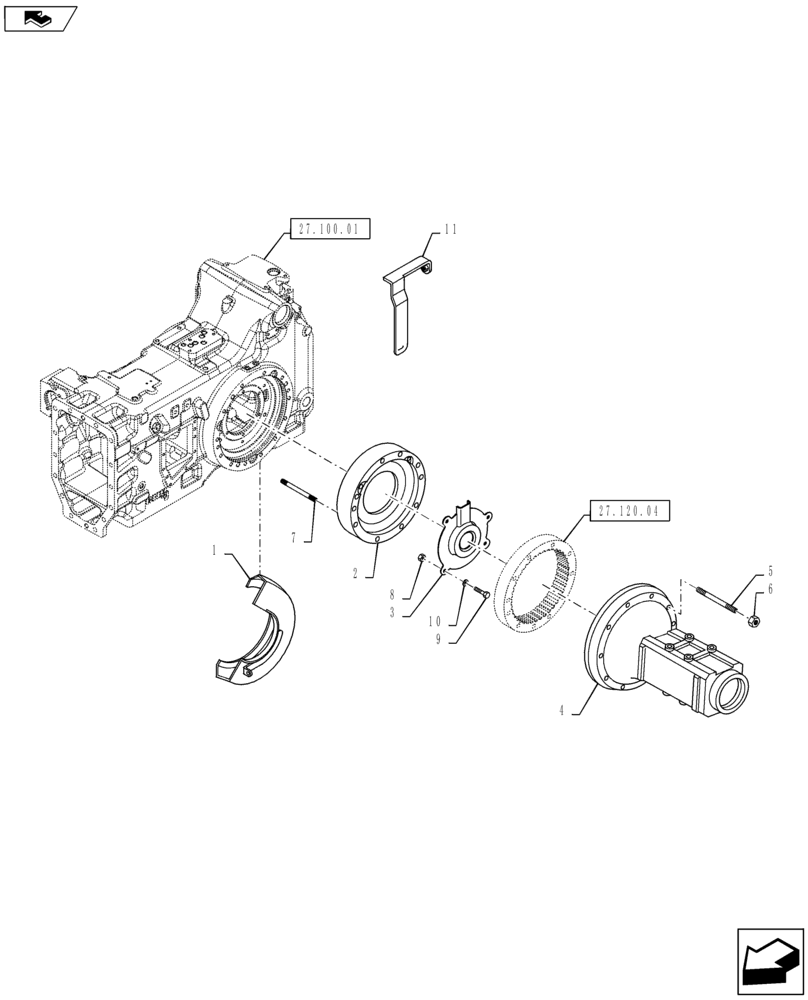

Схема запчастей Case IH PUMA 160 - (27.120.02) - SIDE REDUCTION UNIT HOUSING AND COVERS (27) - REAR AXLE SYSTEM
8
home
27.100.01
4
1
3
27.120.04
6
7
9
2
5
10
11

Артикул

Название

Примечание

Количество

1

84141567

GUARD

1шт.

2

87683204

SPACER,210mm ID x 500mm OD x 171mm L

LH

1шт.

2

87683203

SPACER,210mm ID x 500mm OD x 171mm L

RH

1шт.

3

87683205

COVER

2шт.

4

87585077

AXLE CARRIER

2шт.

5

13973430

STUD,M16 x 1.5 x 22.00mm x 110.00mm, Cl 10.9, PLN

21шт.

5

13973534

STUD,M16 x 1.5 x 22.00mm x 115.00mm, Cl 10.9, DAC

2шт.

6

12164124

NUT,M16 x 1.5, Cl 8

24шт.

7

13557430

STUD,M14 x 1.5 x 28.00mm x 130.00mm, Cl 10.9, PLN

24шт.

8

12164024

NUT,Hex, M14 x 1.5mm Pitch, Cl 10, DAC

24шт.

9

16043221

BOLT,Hex, M8 x 16mm, Cl 8.8, Full Thd

8шт.

10

11193870

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.4mm Thk

8шт.

11

84141569

SUPPORT

1шт.

Выбрано товаров: 13
