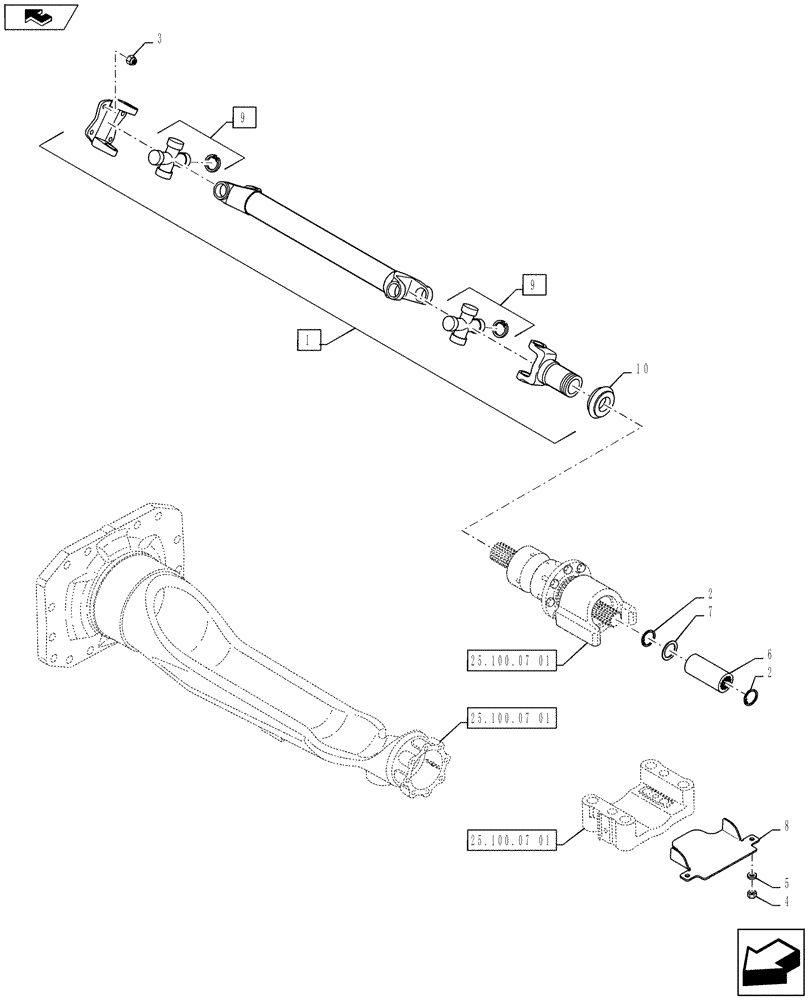

Запчасти Case IH PUMA 160 (23.314.03) - VAR - 397449 - FOUR WHEEL DRIVE PROPELLER SHAFT FOR SUSPENDED FRONT AXLE (23) - FOUR WHEEL DRIVE SYSTEM

1

87664856

DRIVE SHAFT

Incl 9, 10

1шт.

1

84415566

DRIVE SHAFT

Incl 9, 10

1шт.

2

5109282

CIRCLIP,M35, Ext x 2.50 Thk

2шт.

3

82936516

LOCK NUT,7/16"-20

4шт.

4

16100811

NUT,Hex, M8, 6.80mm, Cl 8, ZND

2шт.

5

11198174

BELLEVILLE WASHER,M8 Bolt Size x 22mm OD x 2.2mm Thk

2шт.

6

47135384

SPLINED COUPLING,12T

1шт.

7

5118722

SHIM,34.6mm ID x 48mm OD x 1mm Thk

1шт.

7

5118723

SHIM,34.6mm ID x 48mm OD x 1.2mm Thk

1шт.

7

5118724

SHIM,34.60mm ID x 48.00mm OD x 1.50mm T

1шт.

7

5118725

SHIM,34.6mm ID x 48mm OD x 1.8mm Thk

1шт.

7

4994066

SHIM,34.60mm ID x 48.00mm OD x 2.20mm T

1шт.

7

4994067

SHIM,34.60mm ID x 48.00mm OD x 2.50mm T

1шт.

7

4994068

SHIM,34.60mm ID x 48.00mm OD x 2.80mm T

1шт.

7

4994069

SHIM,34.60mm ID x 48.00mm OD x 3.00mm T

1шт.

7

4994070

SHIM,34.60mm ID x 48.00mm OD x 3.30mm T

1шт.

7

4994073

SHIM,34.60mm ID x 48.00mm OD x 4.30mm T

1шт.

7

4994072

SHIM,34.60mm ID x 48.00mm OD x 4.00mm T

1шт.

8

82037903

GUARD

1шт.

9

87393885

SPIDER

2шт.

10

84153203

BELLOWS

1шт.
