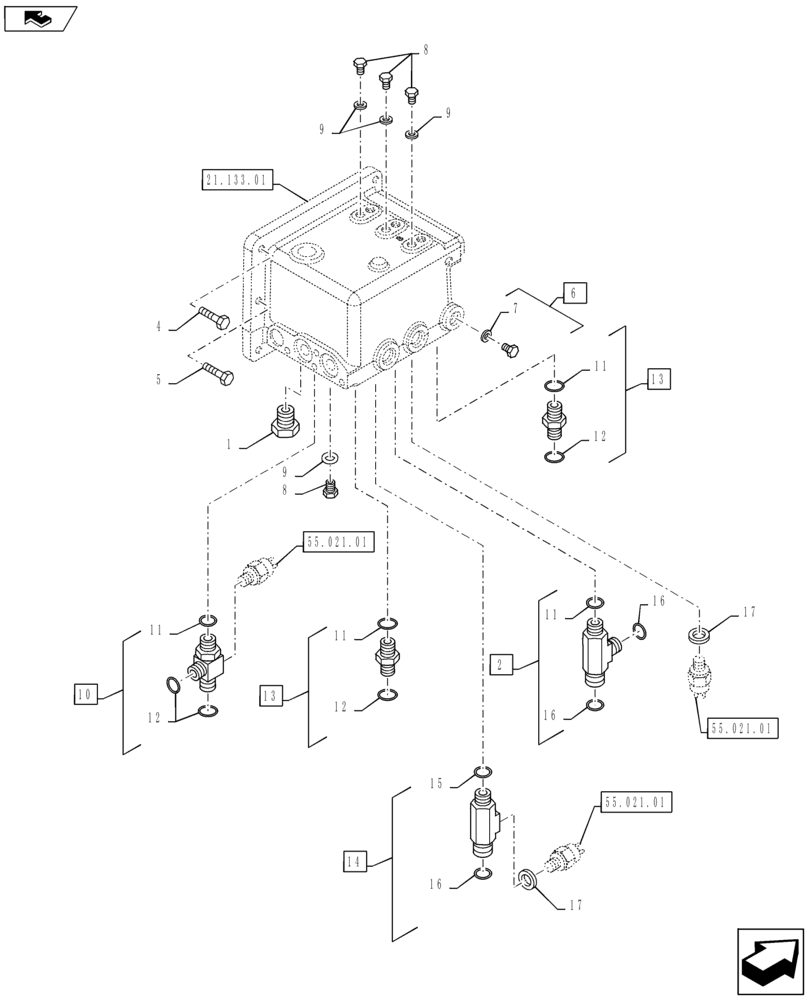

Запчасти Case IH PUMA 160 (21.133.02) - VAR - 390283 - SPS TRANSMISSION - REDUCTION UNIT VALVE BLOCK - SUPPORT RELATED PARTS (21) - TRANSMISSION

1

10300511

PLUG,M12 x 1.5 x 12, Cl5.8

1шт.

2

5187064

TEE

Incl 11, 16

1шт.

3

5185513

O-RING,1.78mm Thk x 18.77mm ID, 85 Duro

1шт.

4

15970924

SCREW,Hex, M10 x 1.25 x 35mm, Cl 8.8

6шт.

5

11307031

BOLT,Hex, M10 x 1.25 x 40mm, Cl 10.9

2шт.

6

10118740

PLUG,M14 x 1.5 x 15, Brass

1шт.

7

14437785

O-RING,11.3mm ID x 2.4mm

1шт.

8

11903011

PLUG,M10 x 1 x 11, Cl5.8

4шт.

9

87316678

SEALING WASHER,10mm ID x 16mm OD x 2.3mm Thk

4шт.

10

87314182

HYD CONNECTOR,11/16-16 ORFS x 11/16-16 ORFS x M16 x 1.5 ORB

Incl 11, 12

1шт.

11

14438085

O-RING,19.3mm ID x 2.4mm

4шт.

12

5185510

O-RING,1.78mm Thk x 9.25mm ID, 85 Duro

4шт.

13

5192374

HYD CONNECTOR,11/16-16 ORFS x M16 x 1.5 ORB

Incl 11, 12

2шт.

14

87575165

HYD CONNECTOR,1"-14 x M8 x 1.5

Incl 15, 16

1шт.

15

14437885

O-RING,13.30mm ID x 2.40mm

1шт.

16

5185512

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

3шт.

17

5183780

SEALING WASHER,9.73mm ID x 18mm OD x 1.5mm Thk

2шт.
