Запчасти Case IH PUMA 155 (1.14.0[01A]) - FUEL TANK AND RELATED PARTS - D7389 (02) - ENGINE EQUIPMENT

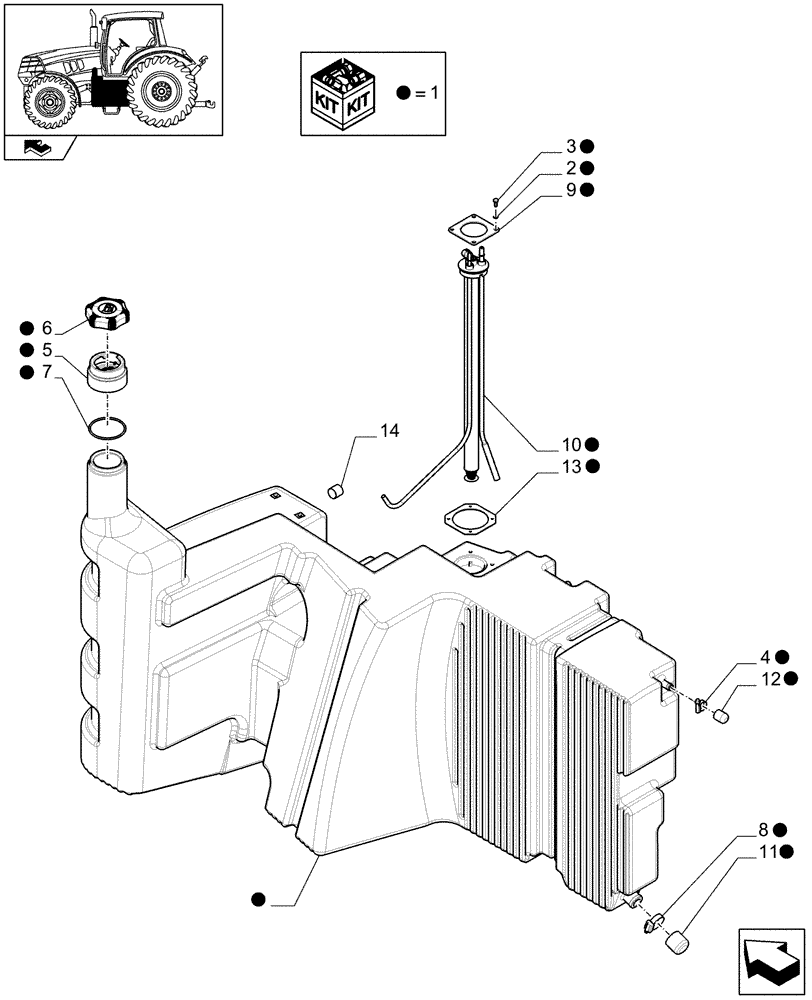

Схема запчастей Case IH PUMA 155 - (1.14.0[01A]) - FUEL TANK AND RELATED PARTS - D7389 (02) - ENGINE EQUIPMENT
1
1
5
1
14
3
13
1
1
1
home
1
4
1
10
11
1
9
1
1
1
12
2
1
7
8
6
1
1

Артикул

Название

Примечание

Количество

1

47469840

FUEL TANK

ASSY, Main

1шт.

2

10615479

LOCK WASHER,6.4mm ID x 11mm OD x 0.7mm Thk

4шт.

3

86508568

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8

4шт.

4

82039343

HOSE CLAMP,16mm - 27mm

1шт.

5

84236742

NECK FILLER

1шт.

6

84547727

FILLER CAP,M59, Vented

Not Locking Fuel Cap

1шт.

7

84284801

O-RING,3.53mm Thk x 75mm ID

1шт.

8

82012726

HOSE CLAMP,38mm - 50mm, Worm Gear

1шт.

9

87586744

RETAINER,64mm ID x 90mm L x 90mm W x 4mm Thk

1шт.

10

47463452

FUEL GAUGE

Float ASSY

1шт.

11

83998666

CAP

1шт.

12

83952371

CAP,15mm ID X 25mm

1шт.

13

NSS

NOT SOLD SEPARAT

1шт.

14

87587056

SLEEVE,38.5mm ID x 41.5mm OD x 40mm L

1шт.

Выбрано товаров: 14
