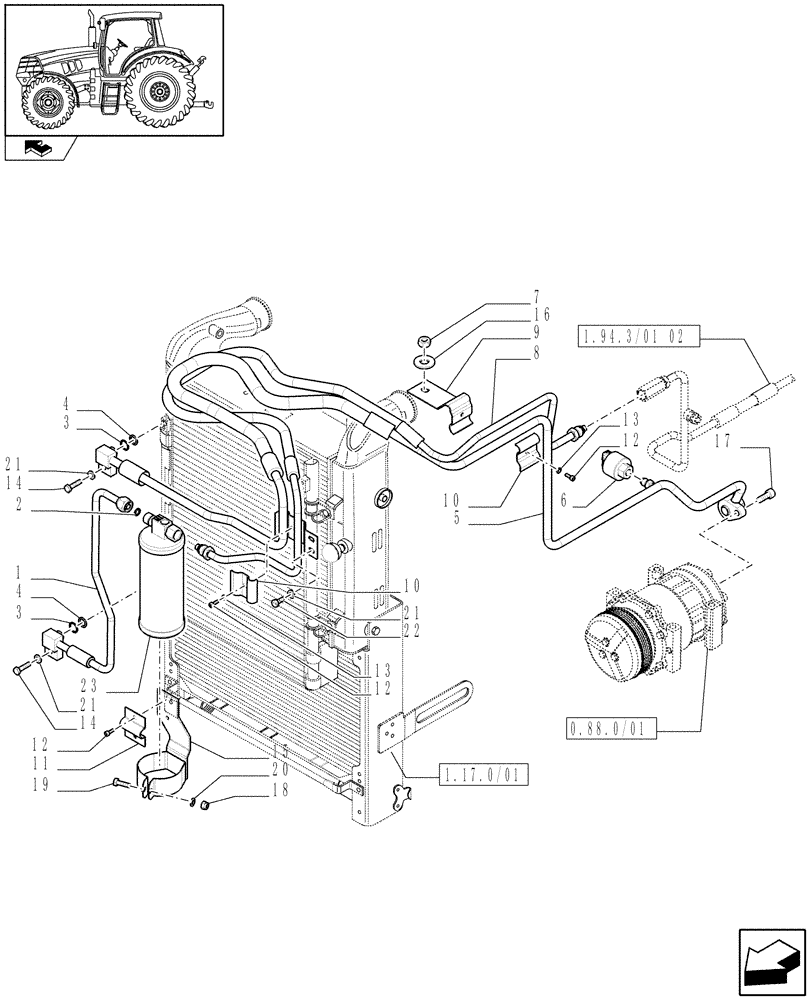

Запчасти Case IH PUMA 155 (1.94.3/01[01]) - AIR CONDITIONING SYSTEM PIPES (10) - OPERATORS PLATFORM/CAB

1

87741680

PIPE

ASSY,Incl.2-4

1шт.

2

82000793

O-RING,1.78mm Thk x 7.65mm ID, -11, 70 Duro

1шт.

3

14450683

O-RING,10.8mm ID x 2.4mm Width

2шт.

4

10319183

O-RING,13.1mm ID x 1.6mm Width

2шт.

5

84178744

PIPE

ASSY,Incl.3,4, Serial Range: -C6872

1шт.

5

84344984

PIPE

ASSY, Incl. 3, 4, Start Serial: D6871

1шт.

6

84233818

PRESSURE SWITCH

Switch A/C High Pressure

1шт.

7

43362

NUT,M8 x 1.25, Cl 10

2шт.

8

84173766

PIPE

ASSY, Serial Range: -C6872

1шт.

8

84344987

PIPE

ASSY, Start Serial: D6871

1шт.

9

84171945

BRACKET

2шт.

10

87653304

BRACKET

2шт.

11

84233849

BRACKET

1шт.

12

87536486

SCREW,M4 x 0.7 x 16.01mm, Cl 12.9

4шт.

13

10615279

LOCK WASHER,M4, Serr

2шт.

14

86977786

BOLT,Hex, M6 x 1 x 25mm, Cl 8.8

2шт.

15

87750158

BRACKET

1шт.

16

10519604

WASHER,8.15mm ID x 17mm OD x 2mm Thk

1шт.

17

120228

HEX SOC SCREW,M8 x 20mm, Cl 8.8, Full Thd

1шт.

18

12574221

NUT,M6 x 1, Cl 10

1шт.

19

120100

BOLT,M6 x 20mm, Cl 8.8

1шт.

20

10516474

LOCK WASHER

1шт.

21

14496401

WASHER,M6.4 x 12.00mm x 1.60mm

4шт.

22

86508568

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8

2шт.

23

87343822

RECEIVER-DRYER

1шт.
