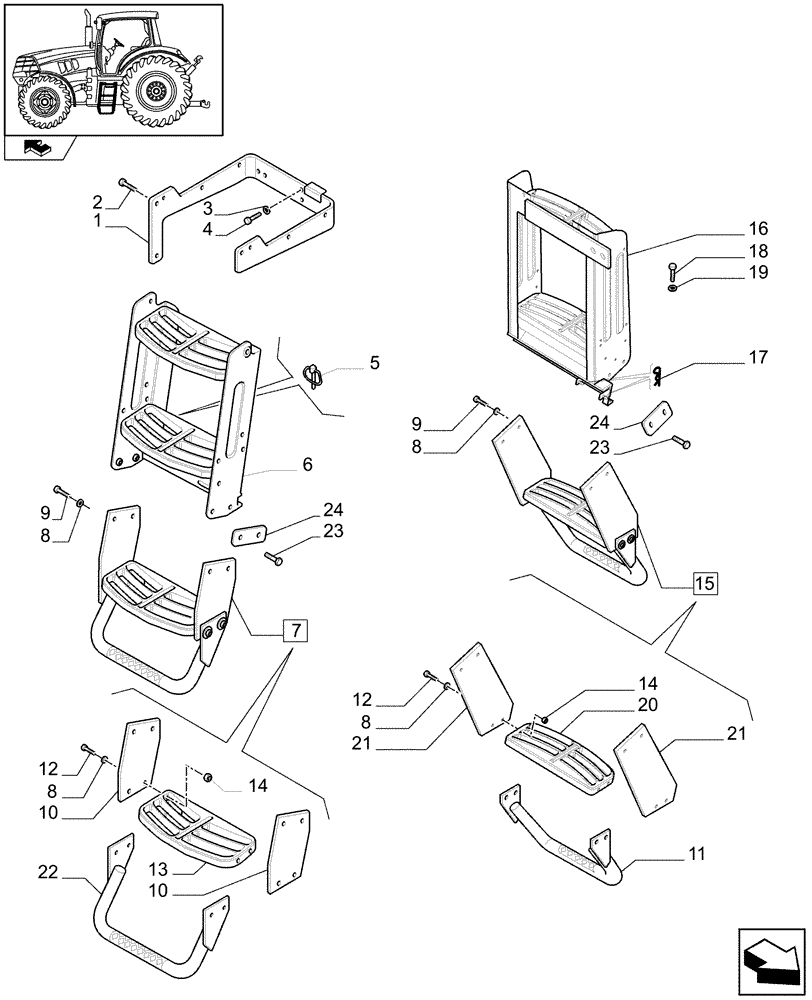

Запчасти Case IH PUMA 155 (1.90.2/02) - FOOT STEP FOR 650/65 R42 TYRES (VAR.331461) (10) - OPERATORS PLATFORM/CAB

1

84181565

SUPPORT

1шт.

2

84147352

BOLT,Shoulder, M10 x 1.5 x 27 mm, Gr 8.8

2шт.

3

14496504

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

4шт.

4

16043824

SCREW,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd, DAC

4шт.

5

81810390

LINCH PIN,11.18mm OD

1шт.

6

87484827

FOOT BOARD

RH, Upper

1шт.

7

84131890

FOOT BOARD

ASSY, RH, Lower

1шт.

8

12644304

WASHER,10.2mm ID x 35mm OD x 3mm Thk

8шт.

9

11106234

BOLT,Hex, M10 x 1.5 x 25 mm, Cl 10.9, Full Thd

8шт.

10

87484838

SUPPORT

2шт.

12

16040824

SCREW,Hex, M10 x 1.5 x 40mm, Cl 8.8, Full Thd

8шт.

11

84125913

STEP

1шт.

13

87371923

STEP

Rubber Step

1шт.

14

12577211

LOCK NUT,M10 x 1.5mm Pitch, 12.30mm High, Cl 8, ZND

8шт.

15

NSS

NOT SOLD SEPARAT

ASSY, LH, Lower

1шт.

16

87483111

FOOT BOARD

LH, Upper, Serial Range: -C7144

1шт.

16

84476488

FOOT BOARD

LH, Upper, Start Serial: D7144

1шт.

17

81865839

COTTER PIN

2шт.

18

16044024

BOLT,Hex, M8 x 1.25 x 40mm, Cl 8.8

2шт.

19

12646704

WASHER,8.15mm ID x 20mm OD x 2mm Thk

2шт.

20

87371925

STEP

Rubber Step

1шт.

21

87565408

SUPPORT

2шт.

22

87565423

FOOT BOARD

1шт.

23

16040824

SCREW,Hex, M10 x 1.5 x 40mm, Cl 8.8, Full Thd

, Start Serial: D7144

4шт.

24

84475630

MOUNTING PLATE

, Start Serial: D7144

2шт.
