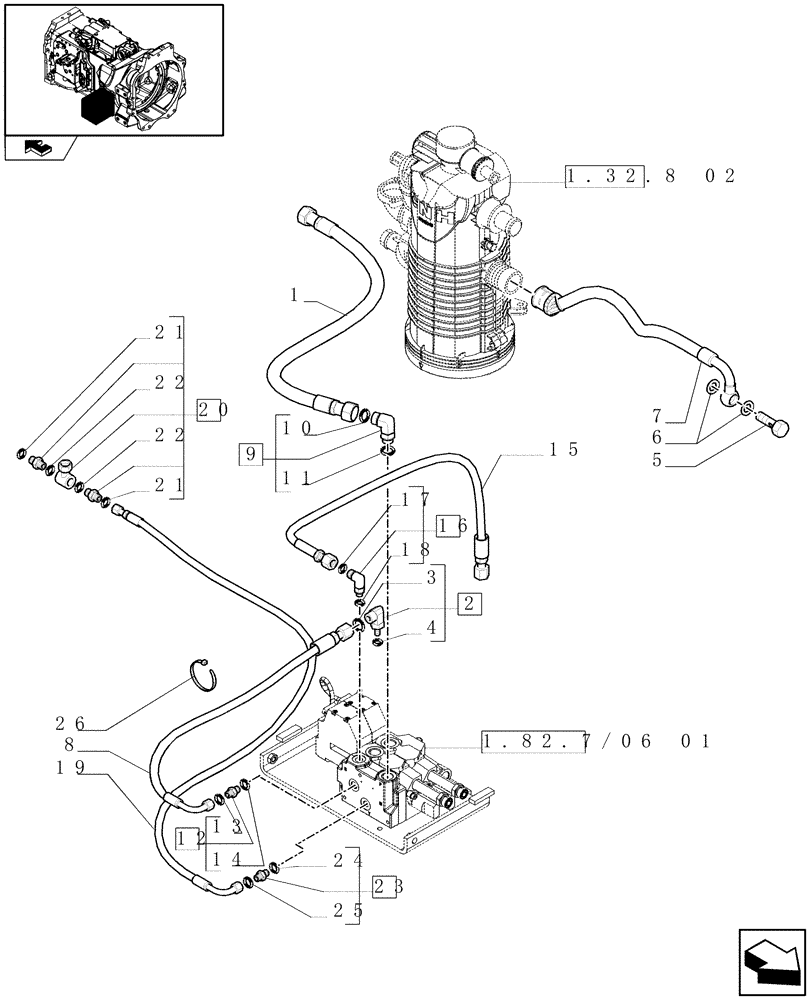

Запчасти Case IH PUMA 155 (1.82.7/06[02]) - 2 ELECTRONIC MID MOUNTED VALVES - PIPES (VAR.330560-333560) (07) - HYDRAULIC SYSTEM

1

87695799

FLEXIBLE HOSE,15.88mm ID x 850mm L, SAE 100R16

210 Bar Supply

1шт.

2

5194728

90 ELBOW

1шт.

3

14438085

O-RING,19.3mm ID x 2.4mm

1шт.

4

5185512

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

5

5112588

BANJO BOLT,M22 x 1.5 x 40mm

1шт.

6

5165897

SEALING WASHER,22.7mm ID x 30mm OD x 2mm Thk

2шт.

7

84121775

HYDRAULIC HOSE,18.00mm OD x 1000.00mm, SAE 100R3

Return

1шт.

8

84389501

HOSE ASSY.,10mm ID x 850mm L, SAE 100R2

850MM

1шт.

9

86579686

90 ELBOW,11/16"-16 ORFS x M14 x 1.5 ORB

1шт.

10

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

11

86598099

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

1шт.

12

82019693

HYD CONNECTOR,11/16" - 16 ORFS x M14 x 1.5 ORFS

1шт.

13

82019811

SEAL,11.6mm ID x 16.5mm OD x 1.5mm Thk

1шт.

14

81844851

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

15

87520009

FLEXIBLE HOSE

24 Bar Return

1шт.

16

5185548

ELBOW,M14 x 1.5mm ORB, 13/16"-16" ORFS

1шт.

17

14437785

O-RING,11.3mm ID x 2.4mm

1шт.

18

5185511

O-RING,1.78mm Thk x 12.42mm ID, 85 Duro

1шт.

19

84161309

HYDRAULIC HOSE,6.35mm ID x 1450mm L, SAE 100R2

Load Sense

1шт.

20

82018814

CHECK VALVE,9/16" - 18 JIC x 9/16" - 18 ORFS x 9/16" - 18 ORFS

1шт.

21

81844850

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

2шт.

22

81827528

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

2шт.

23

5185045

HYD CONNECTOR

1шт.

24

14437685

O-RING,9.30mm ID x 2.40mm

1шт.

25

5185509

O-RING,1.78mm Thk x 7.66mm ID, 85 Duro

1шт.

26

82001041

CABLE TIE,0.190" x 7.00" / 200 mm L

CABLE STRAP

3шт.
