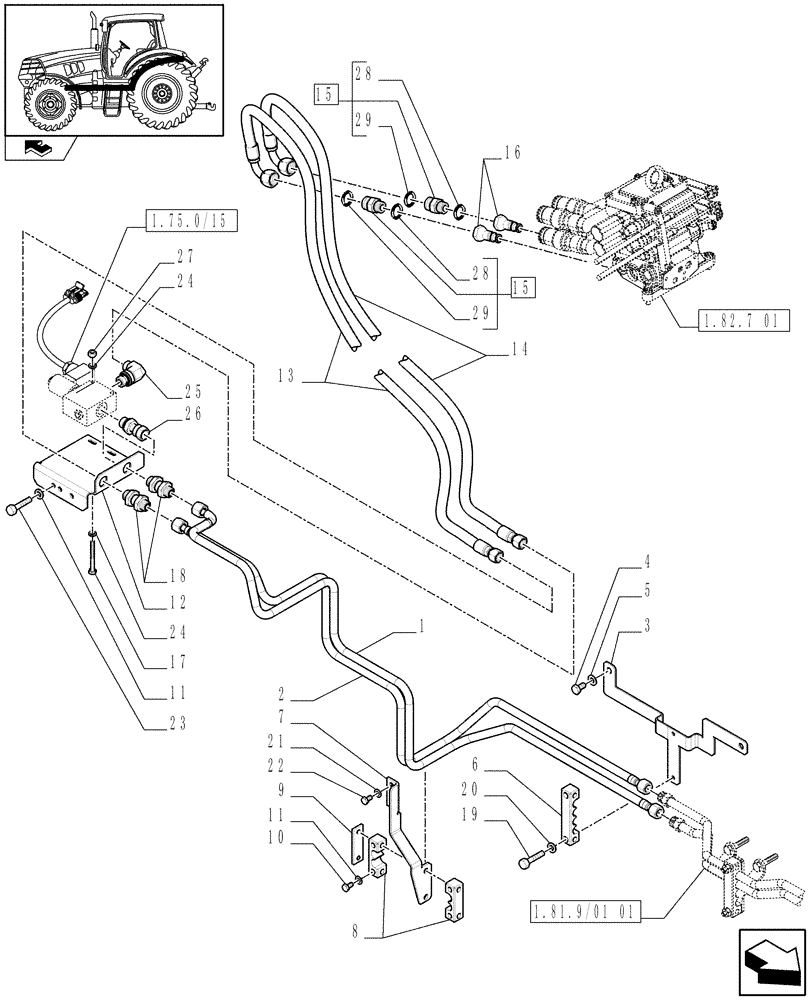

Запчасти Case IH PUMA 155 (1.81.9/01[02]) - TUBES FOR FRONT HPL FROM MECHANICAL REMOTE VALVES (VAR.330926) (07) - HYDRAULIC SYSTEM

1

84150528

HYD TUBE

Lower

1шт.

2

84150530

HYD TUBE,16 mm OD

Raise

1шт.

3

84150538

HOLDER

, Serial Range: -C6796

1шт.

3

84330708

HOLDER

, Start Serial: D6796

1шт.

4

43138

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8

2шт.

5

14496621

WASHER,10.5mm ID x 21mm OD x 2mm Thk

2шт.

6

87579043

CLAMP,4 Hoses

1шт.

7

84135241

SUPPORT

1шт.

8

84147270

CLAMP,2 Hoses

2шт.

9

84147271

PLATE

1шт.

10

16043224

BOLT,Hex, M8 x 16mm, Cl 8.8

2шт.

11

14496504

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

4шт.

12

84135243

SUPPORT

1шт.

13

84152532

HYDRAULIC HOSE,2260.00mm

Raise, Serial Range: -C7082

1шт.

13

84378827

HYDRAULIC HOSE

Hose, Raise, Start Serial: D7082

1шт.

14

84159105

HYDRAULIC HOSE,2260.00mm

Lower, Serial Range: -C7082

1шт.

14

84378826

HYDRAULIC HOSE

Hose, Lower, Start Serial: D7082

1шт.

15

5185524

HYD CONNECTOR

2шт.

16

83972881

COUPLING

2шт.

17

10903721

BOLT,Hex, M6 x 55mm, Cl 8.8

2шт.

18

82039603

HYD CONNECTOR

2шт.

19

120102

BOLT,Hex, M6 x 40mm, Cl 8.8

, Serial Range: -C6796

2шт.

19

16044021

SCREW,Hex, M8 x 1.25 x 40mm, Cl 8.8

, Start Serial: D6796

2шт.

20

9824259

WASHER,6.4mm ID x 12mm OD x 1.6mm Thk

, Serial Range: -C6796

2шт.

20

12646701

WASHER,8.15mm ID x 20mm OD x 2mm Thk

, Start Serial: D6796

2шт.

21

12646704

WASHER,8.15mm ID x 20mm OD x 2mm Thk

2шт.

22

300510

BOLT,Hex, M8 x 65mm, Cl 8.8

2шт.

23

16044024

BOLT,Hex, M8 x 1.25 x 40mm, Cl 8.8

2шт.

24

9824259

WASHER,6.4mm ID x 12mm OD x 1.6mm Thk

4шт.

25

87312050

HYD CONNECTOR

1шт.

26

87312047

HYD CONNECTOR

1шт.

27

86500688

NUT,Hex, M6 x 1.0, Cl 10.9

2шт.

28

5135738

O-RING,0.103" Thk x 0.674" ID, -115, 80 Duro

2шт.

29

5185512

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

2шт.
