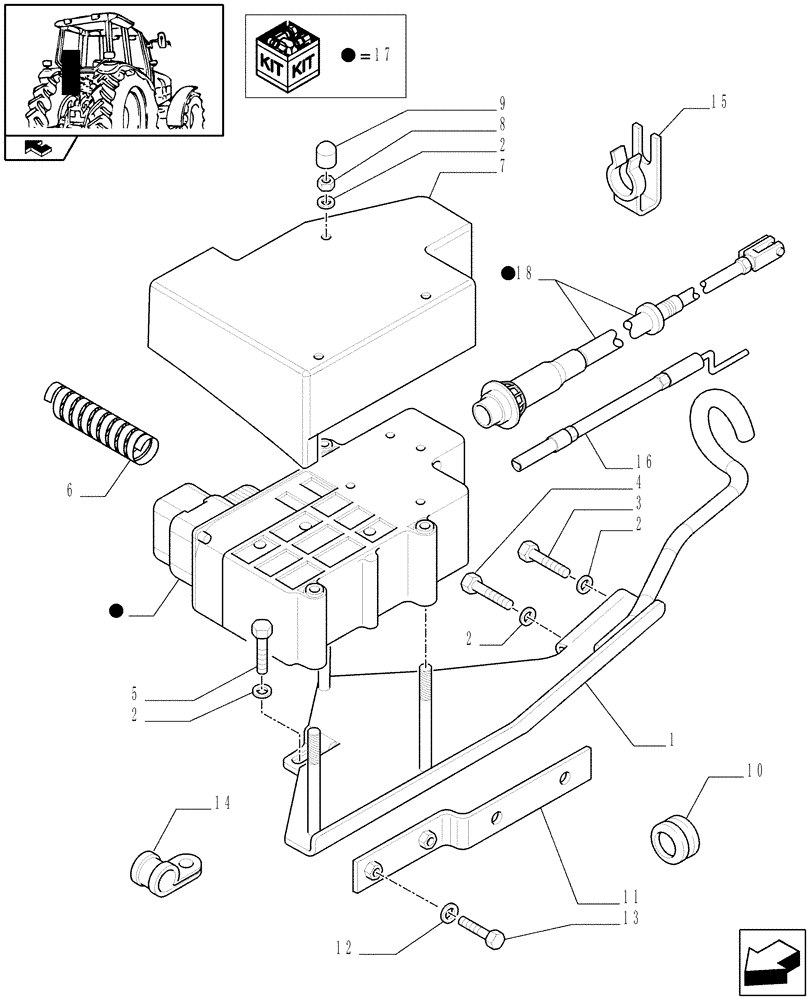

Запчасти Case IH PUMA 155 (1.76.0/05) - ELECTRONIC PARK LOCK (VAR.330083-331083) (06) - ELECTRICAL SYSTEMS

1

84179407

BRACKET

1шт.

2

14496501

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

6шт.

3

16044224

BOLT,Hex, M8 x 1.25 x 50mm, Cl 8.8

1шт.

4

16043624

SCREW,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

1шт.

5

16043421

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

1шт.

6

84195854

SHIELD

1шт.

7

87741153

COVER

1шт.

8

87597953

NUT,M8, 1.25 Pitch, 10.6mm High, Cl 8, ZND

3шт.

9

5132136

CAP COVER,M8

M8

3шт.

10

81862738

PLUG,M38 x 28 x 5mm

28MM

1шт.

11

87470673

BRACKET

1шт.

12

12646701

WASHER,8.15mm ID x 20mm OD x 2mm Thk

2шт.

13

16043221

BOLT,Hex, M8 x 16mm, Cl 8.8, Full Thd

2шт.

14

10450490

CLAMP,16mm, Coat, 9mm Bolt Hole, P Type

1шт.

15

84223172

SPRING CLIP,1.1mm Thk

1шт.

16

84123734

TOOL

1шт.

17

84220606

ACTUATOR

, Serial Range: -C6998

1шт.

17

84589406R

REMAN ELECT CONTROL

PUMA 125, PUMA 140, PUMA 155, All TRACTOR - GARU, Serial Range: -C6998 (11/09-), Reman for New PN 84220606

1шт.

17

84589406C

CORE-ELECTRONIC CONT

Return Number

1шт.

17

84361212

ACTUATOR

, Start Serial: D6998

1шт.

17

84589406R

REMAN ELECT CONTROL

PUMA 125, PUMA 140, PUMA 155, All TRACTOR - GARU, Start Serial: D6998 (11/09-), Reman for New PN 84361212

1шт.

17

84589406C

CORE-ELECTRONIC CONT

Return Number

1шт.

18

84226377

CABLE,990mm L

1шт.
