Запчасти Case IH PUMA 155 (1.40.7/14[01]) - (CL.4) SUSPENDED FRONT AXLE W/MULTI-PLATE DIFF. LOCK, ST. SENSOR AND BRAKES - BRAKES (VAR.330430) (04) - FRONT AXLE & STEERING

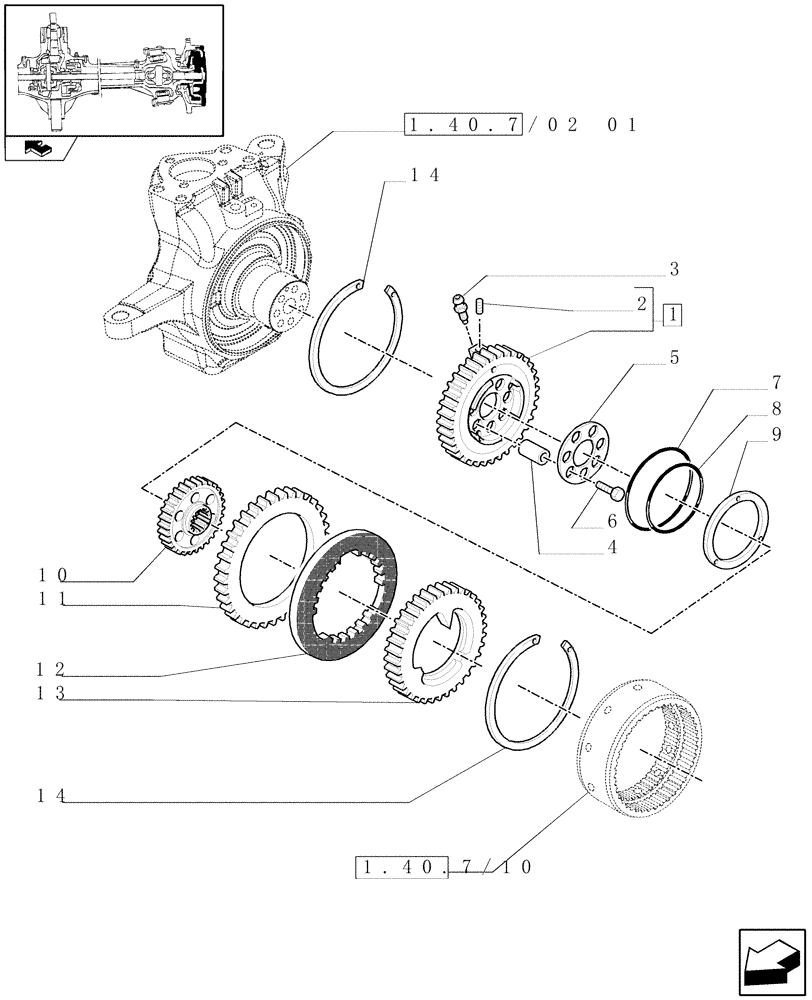

Схема запчастей Case IH PUMA 155 - (1.40.7/14[01]) - (CL.4) SUSPENDED FRONT AXLE W/MULTI-PLATE DIFF. LOCK, ST. SENSOR AND BRAKES - BRAKES (VAR.330430) (04) - FRONT AXLE & STEERING
1
13
1.40.7/02 01
home
10
14
5
14
6
1.40.7/10
11
3
8
2
9
4
7
12

Артикул

Название

Примечание

Количество

1

87332271

GEAR

2шт.

2

14326101

PLUG,M8 x 11

M8 x 1.5

2шт.

3

5153030

BLEED SCREW,Bleeder, Hex, M8 x 1.25 x 25mm

2шт.

4

5179554

BUSHING,14.5mm ID x 22mm OD x 27.8mm L

14шт.

5

87393540

PLATE

2шт.

6

16331930

BOLT,Hex, M14 x 1.5 x 55mm

14шт.

7

5171919

SEAL,Square, 3.4mm Thk x 193.6mm ID, 80 Duro

2шт.

8

5177912

SEAL,Square, 3.4mm Thk x 143.6mm ID, 80 Duro

2шт.

9

5190528

PISTON

2шт.

10

87332183

HUB

2шт.

11

87608346

NOTCHED DISK

2шт.

12

5175567

BRAKE DISC,213.00mm OD

2шт.

13

87332079

BRAKE DISC

2шт.

14

87332077

SNAP RING

4шт.

Выбрано товаров: 14
