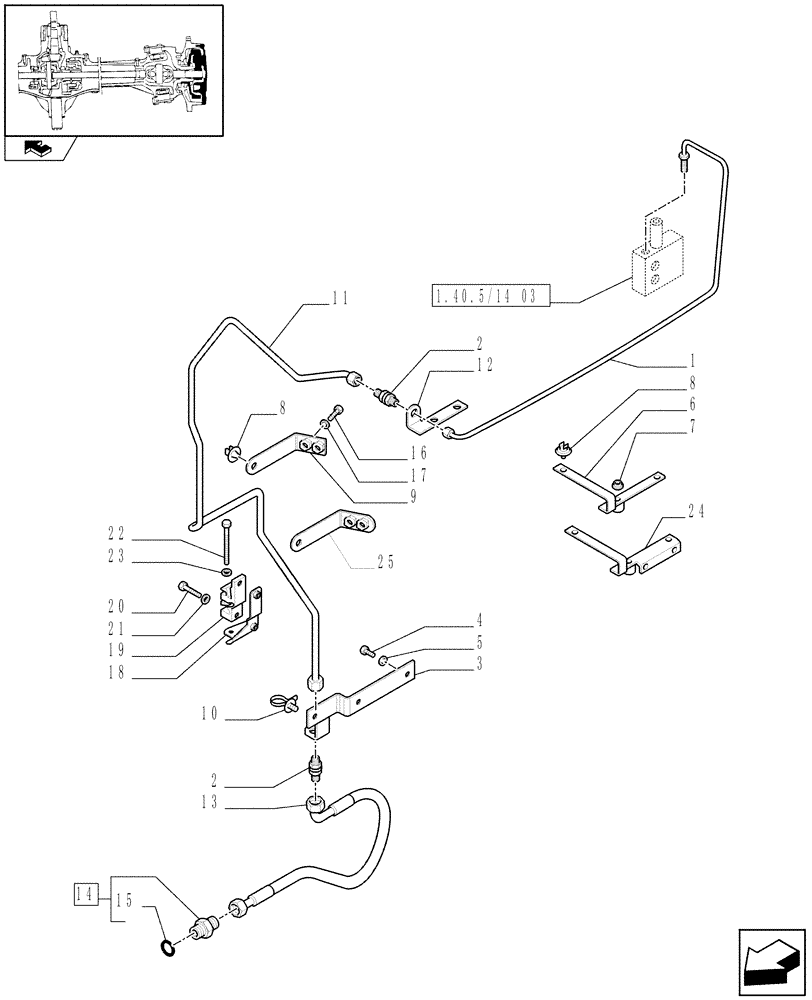

Запчасти Case IH PUMA 155 (1.40.5/14[04]) - (CL.4) FRONT AXLE W/MULTI-PLATE DIFF. LOCK, ST. SENSOR AND BRAKES - PIPES (VAR.330426) (04) - FRONT AXLE & STEERING

1

84121364

BRAKE LINE

Front Brakes

1шт.

2

82016624

ADAPTER

2шт.

3

84143489

BRACKET

1шт.

4

16043224

BOLT,Hex, M8 x 16mm, Cl 8.8

2шт.

5

14496504

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

2шт.

6

87609143

SUPPORT

, Serial Range: -C6680

1шт.

7

9804276

FLANGE NUT,Hex, M6 x 1, Cl 8

1шт.

8

87609144

CLIP,6mm Hose

2шт.

9

84121365

BRACKET

, Serial Range: -C6832

1шт.

10

82033028

CABLE TIE,170mm L

1шт.

11

84169280

BRAKE LINE

Front Brakes, Serial Range: -C6832

1шт.

11

84342873

BRAKE LINE

Front Brakes, Start Serial: D6832

1шт.

12

87702766

BRACKET

1шт.

13

87609294

FLEXIBLE HOSE,590.00mm

Front Brakes

1шт.

14

82015298

HYD CONNECTOR,1/2"-20 - M18 x 1.5

1шт.

15

83999938

SEAL,15.7mm ID x 20.9mm OD x 1.5mm Thk

1шт.

16

86050276

BOLT,Hex, M5 x 16mm, Cl 8.8, Full Thd

2шт.

17

9824326

WASHER,5.3mm ID x 10mm OD x 1mm Thk

2шт.

18

84176930

BRACKET

1шт.

Valid also for Std Equipment

1шт.

19

84177383

SUPPORT

1шт.

Valid also for Std Equipment

1шт.

20

120100

BOLT,M6 x 20mm, Cl 8.8

1шт.

21

9824259

WASHER,6.4mm ID x 12mm OD x 1.6mm Thk

1шт.

22

16043624

SCREW,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

1шт.

23

12646704

WASHER,8.15mm ID x 20mm OD x 2mm Thk

1шт.

24

84261946

SUPPORT

, Start Serial: D6680

1шт.

25

84342873

BRAKE LINE

, Start Serial: D6832

1шт.
