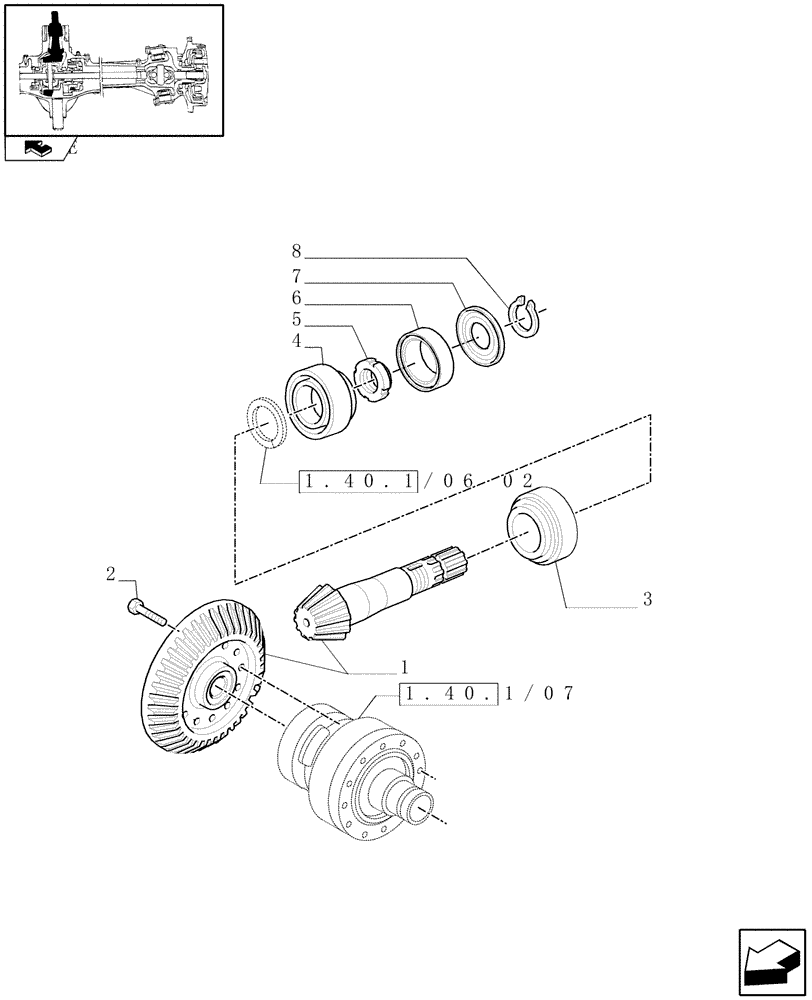

Запчасти Case IH PUMA 155 (1.40.1/06[01]) - (CL.4) FRONT AXLE W/MULTI-PLATE DIFF. LOCK AND STEERING SENSOR - BEVEL GEAR PAIR - C6758 (04) - FRONT AXLE & STEERING

1

87329329

BEVEL GEAR

Ratio 11/28

1шт.

2

15540634

BOLT,Hex, M12 x 1.25 x 40mm, Cl 10.9, Full Thd

12шт.

3

87387938

TAPERED BEARING,41.27mm ID x 73.46mm OD x 19.63mm W

41.275x82.550x26.543

1шт.

4

5133776

TAPERED BEARING,35.00mm x 72.00mm x 28.00mm

35x72x28

1шт.

5

5143242

RING NUT,M35 x 1.5

M35x19.5

1шт.

6

87349652

SEAL,32.5mm ID x 75mm OD x 15mm Thk

32.5x75x14.5

1шт.

7

87527839

SEAL PROTECTION

1шт.

8

11067876

SNAP RING,M30, Ext

1шт.
